Toyota 166310 — REAR COMBINATION LAMP

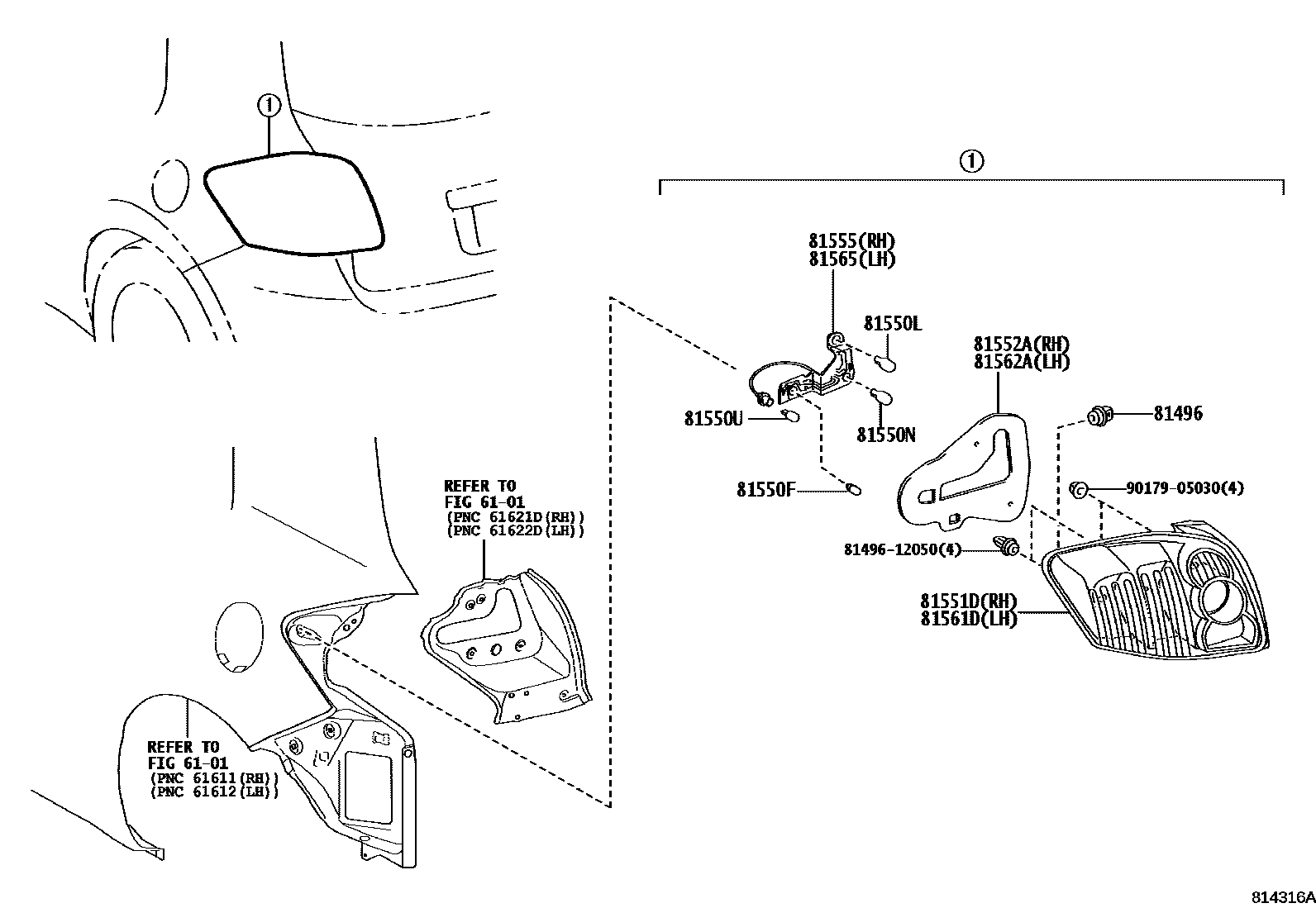

Parts diagram
6101SIDE MEMBER
→ Go to FIG 61-01
81496GUIDE, REAR COMBINATION LAMP
81496-28010
81550FBULB, TAILLAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550UBULB, STOP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02380
81555-02400
81555-02550
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-02370
81565-02390
81565-02530
8149612050GUIDE, REAR COMBINATION LAMP
81496-12050
9017905030
90179-05030

14 parts on this diagram · 2 diagrams in section

REAR COMBINATION LAMP for Toyota 166310

This section contains 14 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 166310. Key components include: SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, BULB, TAILLAMP, BULB, REAR TURN SIGNAL LAMP, BULB, BACK UP LAMP.
