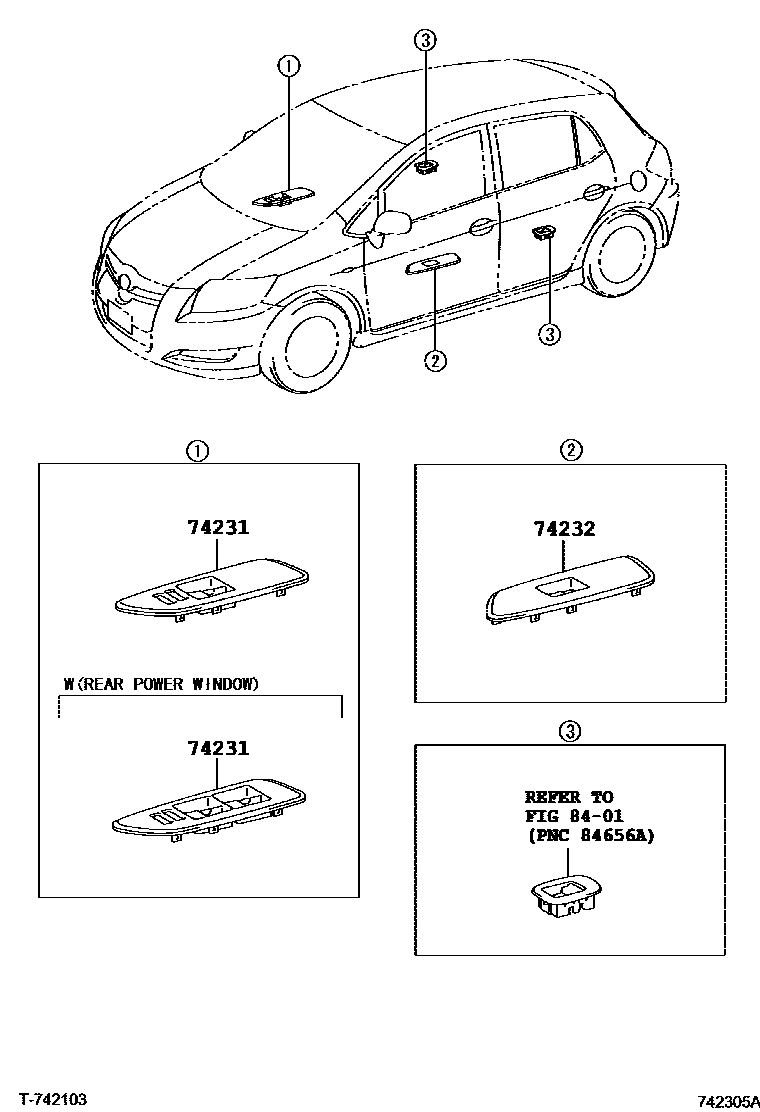

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02540-B0iZRE151,ZZE150..RT200706-200902

DK.GRAY,TRIM1#

main74231-02550-B0iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,RX,SOL200811-201001

DK.GRAY,TRIM1#

sub74231-12770

main74231-02550-E0iZRE152..RX;ADE150,ZZE150..RS,RX;ZRE151..(5F,5FS)..RS200706-200903

GREGE,TRIM4#

sub74231-12770

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02560-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

DK.GRAY,TRIM1#

main74232-02560-E0iZRE152..RX;ADE150,ZZE150..RS,RX;ZRE151..(5F,5FS)..RS200706-200903

GREGE,TRIM4#

8401

3 parts on this diagram · 2 diagrams in section
