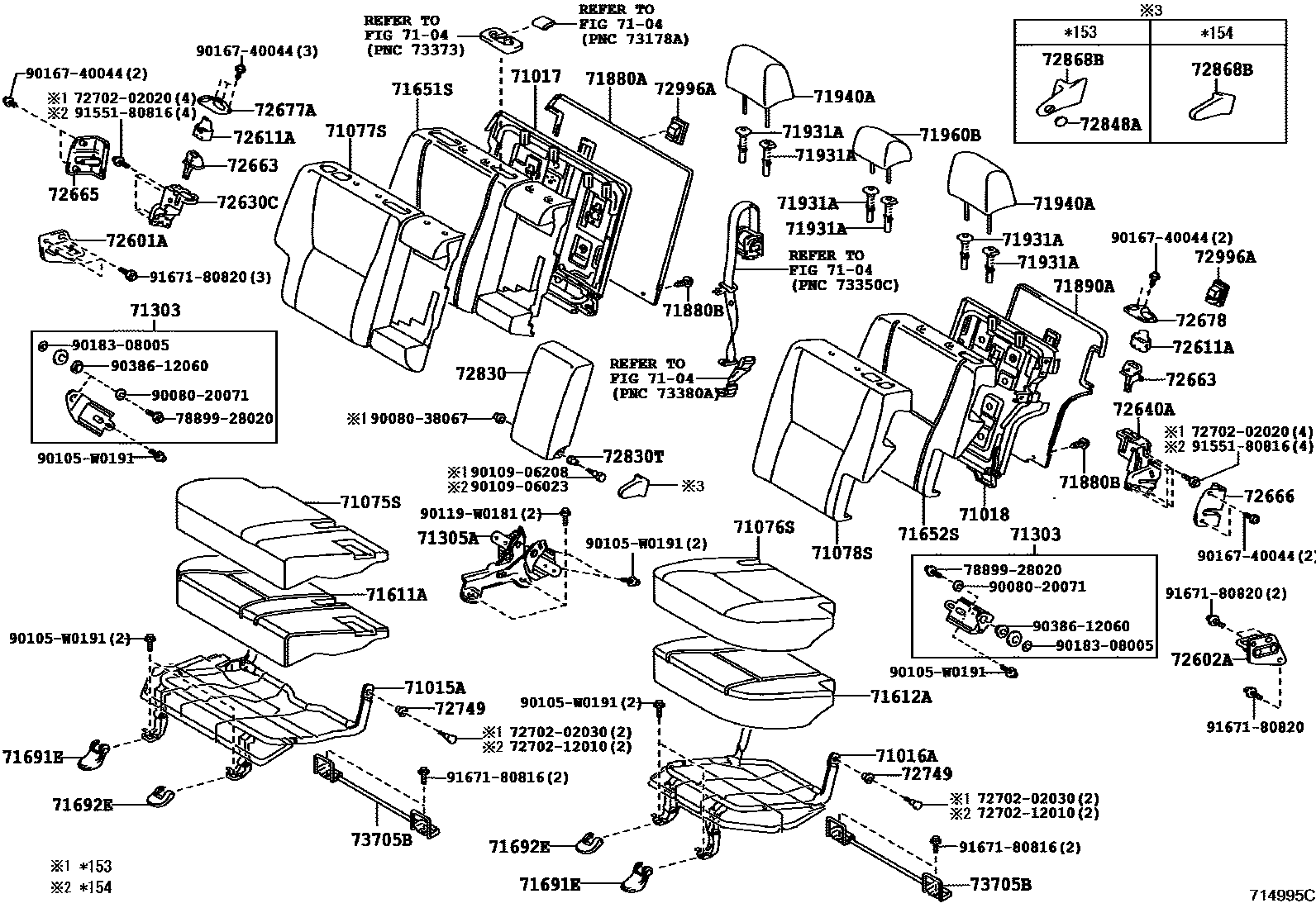

REAR SEAT & SEAT TRACK

0001 1WITH(CENTER ARMREST) 0002 1WITHOUT(CENTER ARMREST)

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-02090iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

*153

main71015-02150iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

*154

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-02050iZZE150200706-200811

*153

main71016-02070iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

*154

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-02180iZZE150..RS200706-200811

*153

main71017-02200iNRE150,ZRE151..TERRA200912

*153

main71017-02240iADE150200706-200903

*154

main71017-02250iNRE150..TERRA;ZRE151..(6F,6FS)..RT200811-201001

*154

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-02130iZZE150200706-200811

*153

main71018-02140iZZE150200706-200811

*154

7104

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-02C10-B0iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,SOL200811-201001

DARK GRAY,TRIM1#,*153

main71075-02C10-E0iADE150,ZZE150..RS200706-200903

GREGE,TRIM4#,*153

main71075-02C20-B0iZRE151,ZZE150..RT200706-200902

DARK GRAY,TRIM1#,*153

main71075-02C20-B2iZRE151..RT;NRE150..TERRA200902-201001

DK.GRAY,TRIM1#,*153

main71075-02C40-B4iADE150,ZRE152..RX200706-200903

DARK GRAY,TRIM1#,*153

main71075-02C40-E3iZRE151..RS200902-201001

GREGE,TRIM4#,*153

main71075-02C50-B0iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,SOL200811-201001

DARK GRAY,TRIM1#,*154

main71075-02C50-E0iADE150,ZZE150..RS200706-200903

GREGE,TRIM4#,*154

main71075-02C60-B0iZRE151,ZZE150..RT200706-200902

DARK GRAY,TRIM1#,*154

main71075-02C60-B2iZRE151..RT;NRE150..TERRA200902-201001

DK.GRAY,TRIM1#,*154

main71075-02C90-B4iZRE151..RS200902-201001

DARK GRAY,TRIM1#,*154

main71075-02C90-E3iZRE151..RS200902-201001

GREGE,TRIM4#,*154

main71075-02J70-B3iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*153

main71075-02K20-B3iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*154

main71075-02C40-B5supersedes 71075-02K10-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#

main71075-02C40-E4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71075-02J80-B3iADE150,ZRE151..RX,SOL201105-201210

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12,*153

main71075-02J90-B2supersedes 71075-02K10-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#,*153

main71075-02K30-B3iADE150,ZRE151..RX,SOL201105-201210

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12,*154

main71075-02K40-B2supersedes 71075-02K10-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#,*154

71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71076-02290-B0iZRE151..(5F,5FS)..RS;ADE150,ZRE152,ZZE150..RS200706-200903

DARK GRAY,TRIM1#,*153

main71076-02290-E0iADE150,ZZE150..RS200706-200903

GREGE,TRIM4#,*153

main71076-02300-B0iZRE151,ZZE150..RT200706-200902

DARK GRAY,TRIM1#,*153

main71076-02300-B2iZRE151..RT;NRE150..TERRA200902-201001

DK.GRAY,TRIM1#,*153

main71076-02320-B4iADE150,ZRE152..RX200706-200903

DARK GRAY,TRIM1#,*153

main71076-02320-E3iZRE151..RS200902-201001

GREGE,TRIM4#,*153

main71076-02330-B0iZRE151..(5F,5FS)..RS;ADE150,ZRE152,ZZE150..RS200706-200903

DARK GRAY,TRIM1#,*154

main71076-02330-E0iADE150,ZZE150..RS200706-200903

GREDE,TRIM4#,*154

main71076-02340-B0iNRE150..TERRA200811-200902

DARK GRAY,TRIM1#,*154

main71076-02340-B2iZRE151..RT;NRE150..TERRA200902-201001

DK.GRAY,TRIM1#,*154

main71076-02360-B4iADE150,ZRE152..RX200706-200903

DARK GRAY,TRIM1#,*154

main71076-02360-E3iADE150,ZRE152..RX200706-200903

GREGE,TRIM4#,*154

main71076-02470-B3iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*153

main71076-02510-B3iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*154

main71076-02320-B5supersedes 71076-02500-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#

main71076-02320-E4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71076-02480-B3iADE150,ZRE151..RX,SOL201105-201210

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12,*153

main71076-02490-B2supersedes 71076-02500-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#,*153

main71076-02520-B3iADE150,ZRE151..RX,SOL201105-201210

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12,*154

main71076-02530-B2supersedes 71076-02500-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#,*154

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-02D10-B3iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,SOL200811-201001

DARK GRAY,TRIM1#,*154

main71077-02D20-B3iNRE150..TERRA200811-200902

DARK GRAY,TRIM1#,*154

main71077-02D20-B4iZRE151..RT;NRE150..TERRA200902-201001

DK.GRAY,TRIM1#,*154

main71077-02D60-B3iZRE151..(5F,5FS)..RS;ADE150,ZRE152,ZZE150..RS200706-200903

DARK GRAY,TRIM1#,*153

main71077-02D70-B3iNRE150..TERRA200811-200902

DARK GRAY,TRIM1#,*153

main71077-02D70-B4iZRE151..RT;NRE150..TERRA200902-201001

DK.GRAY,TRIM1#,*153

main71077-02E20-B6iZRE151..RS200902-201001

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*153

main71077-02E20-E4iZRE151..RS200902-201001

GREGE,TRIM4#,*153

main71077-02E30-B6iADE150,ZRE152..RX200706-200903

DARK GRAY,TRIM1#,*154

main71077-02E30-E4iADE150,ZRE152..RX200706-200903

GREGE,TRIM4#,*154

main71077-02M80-B3iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*153

main71077-02N50-B3iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*154

main71077-02M90-B3iADE150,ZRE151..RX,SOL201105-201210

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12,*153

main71077-02N60-B3iADE150,ZRE151..RX,SOL201105-201210

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12,*154

main71077-02P80-B1supersedes 71077-02N30-B2iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*153

main71077-02P80-E1iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#,*153

main71077-02P90-B1supersedes 71077-02N30-B2iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*154

main71077-02P90-E1iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#,*154

main71077-02Q00-B1supersedes 71077-02N30-B2iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#,*153

main71077-02Q10-B1supersedes 71077-02N30-B2iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#,*154

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-02890-B5iZRE151..(5F,5FS)..RS;ADE150,ZRE152,ZZE150..RS200706-200903

DARK GRAY,TRIM1#,*154

main71078-02A00-B4iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,SOL200811-201001

DARK GRAY,TRIM1#,*153

main71078-02A10-B2iZRE151,ZZE150..RT200706-200902

DARK GRAY,TRIM1#,*153

main71078-02A10-B3iZRE151..RT;NRE150..TERRA200902-201001

DK.GRAY,TRIM1#,*153

main71078-02A30-B2iZRE151,ZZE150..RT200706-200902

DARK GRAY,TRIM1#,*154

main71078-02A30-B3iZRE151..RT;NRE150..TERRA200902-201001

DK.GRAY,TRIM1#,*154

main71078-02A60-B5iZRE151..RS200902-201001

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*153

main71078-02A60-E4iADE150,ZRE152..RX200706-200903

GREGE,TRIM4#,*153

main71078-02A80-B5iADE150,ZRE152..RX200706-200903

DARK GRAY,TRIM1#,*154

main71078-02A80-E4iADE150,ZRE152..RX200706-200903

GREGE,TRIM4#,*154

main71078-02F10-B3iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*153

main71078-02F70-B3iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*154

main71078-02F20-B2supersedes 71078-02F60-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#,*153

main71078-02F50-B3iADE150,ZRE151..RX,SOL201105-201210

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12,*153

main71078-02F80-B2supersedes 71078-02F60-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-FABRIC(KAZE),DARK GREY,TRIM1#,*154

main71078-02G00-B3iADE150,ZRE151..RX,SOL201105-201210

SEAT COVER MATERIAL-FABRIC(TATAMI,SPORT),DARK GRAY,TRIM12,*154

main71078-02J10-B1supersedes 71078-02F60-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*153

main71078-02J10-E1iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#,*153

main71078-02J20-B1supersedes 71078-02F60-B4iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*154

main71078-02J20-E1iADE150,ZRE151..RX,SOL200912-201210

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#,*154

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-02081×2iZZE150200706-200811

*153

main71303-02091×2iZZE150200706-200811

*154

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-02080iZZE150200706-200811

*153

main71305-02090iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

*154

71611APAD, REAR SEAT CUSHION, RH

main71611-02070iZRE15#200706-200902

*153

main71611-02090iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

*154

71612APAD, REAR SEAT CUSHION, LH

main71612-02050iZZE150200706-200811

*153

main71612-02070iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

*154

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-02180iZZE150..RS200706-200811

*153

main71651-02200iADE150,ZRE151..RX,SOL200912

*154

main71651-02210iZRE151..RT200706-200902

*154

main71651-02270iNRE150,ZRE151..TERRA200912

*153

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-02180iZRE15#200706-200902

*154

main71652-02200iZZE150200706-200811

*153

71691ECOVER, REAR SEAT CUSHION HINGE, NO.1

main71691-02010-B0×2iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

DK.GRAY,TRIM1#

main71691-02010-E0×2iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-200903

GREGE,TRIM4#

71692ECOVER, REAR SEAT CUSHION HINGE, NO.2

main71692-02020-B0×2iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

DK.GRAY,TRIM1#

main71692-02020-E1×2iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-200903

GREGE,TRIM4#

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71885-02050-C0iADE150,ZRE152..RX200706-200903

BLACK,TRIM1#,*153

main71885-02060-C0iADE150,ZRE152..RX200902-201001

BLACK,TRIM1#,4#,*154

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-W0001-B0×4iZRE151..(5F,5FS)..RT;ADE150,ZRE152,ZZE150..RS,RT200706-200903

DK.GRAY,TRIM1#,4#

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71886-02050-C0iADE150,ZRE152..RX200706-200903

BLACK,TRIM1#,*153

main71886-02060-C0iADE150,ZRE152..RX200706-200903

BLACK,TRIM1#,4#,*154

71931ASUPPORT, REAR SEAT HEADREST

main71930-47010-B2iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

W(LOCK),DK.GRAY,TRIM1#,*154

sub71930-44020

main71930-47010-E3iZRE151..RS200902-201001

W(LOCK),GREGE,TRIM4#,*154

sub71930-44020

main71931-47010-B2iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

W/O(LOCK),DK.GRAY,TRIM1#,*154

sub71931-42020

main71931-47010-E4iADE150,ZRE152..RX200706-200903

W/O(LOCK),GREGE,TRIM4#,*154

sub71931-42020

main71955-02060-B0iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

W/O(LOCK),DK.GRAY,TRIM1#,*153

main71955-02060-E0iZRE151..RS200902-201001

W/O(LOCK),GREGE,TRIM4#,*153

main71990-02010-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

W(LOCK),DK.GRAY,TRIM1#,*153

main71990-02010-E0iADE150,ZRE152..RX200706-200903

W(LOCK),GREGE,TRIM4#,*153

71940AHEADREST ASSY, REAR SEAT

main71940-02750-B1iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,SOL200811-201001

DARK GRAY,TRIM1#,*154

main71940-02750-E0iADE150,ZZE150..RS200706-200903

GREDE,TRIM4#,*154

main71940-02760-B1iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*154

main71940-02800-B0iZRE151..(5F,5FS)..RS;ADE150,ZRE152,ZZE150..RS200706-200903

DARK GRAY,TRIM1#,*153

main71940-02800-E0iADE150,ZZE150..RS200706-200903

GREDE,TRIM4#,*153

main71940-02810-B0iNRE150..TERRA;ZRE151..(6F,6FS)..RT200811-201001

DARK GRAY,TRIM1#,*153

main71940-02830-B3iZRE151..RS200902-201001

SEAT COVER MATERIAL-NATURAL LEATHER,DARK GRAY,TRIM1#,*153

main71940-02830-E2iZRE151..RS200902-201001

GREGE,TRIM4#,*153

main71940-02840-B3supersedes 71940-02800-B0iZRE151..RS200902-201001

DARK GRAY,TRIM1#,*154

main71940-02840-E2iADE150,ZRE152..RX200706-200903

GREGE,TRIM4#,*154

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-02210-B1iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,SOL200811-201001

DARK GRAY,TRIM1#,*154

main71960-02210-E0iADE150,ZZE150..RS200706-200903

GREDE,TRIM4#,*154

main71960-02340-B1iNRE150..TERRA;ZRE151..(6F,6FS)..RT200811-201001

DARK GRAY,TRIM1#,*154

main71960-02370-B0iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,SOL200811-201001

DARK GRAY,TRIM1#,*153

main71960-02370-E0iADE150,ZZE150..RS200706-200903

GREDE,TRIM4#,*153

main71960-02380-B0iNRE150,ZRE151..TERRA200912-201210

DARK GRAY,TRIM1#,*153

main71960-02400-B3iADE150,ZRE152..RX200706-200903

DARK GRAY,TRIM1#,*153

main71960-02400-E2iADE150,ZRE152..RX200706-200903

GREGE,TRIM4#,*153

main71960-02410-B3supersedes 71960-02370-B0iADE150,ZRE152..RX200706-200903

DARK GRAY,TRIM1#,*154

main71960-02410-E2iZRE151..RS200902-201001

GREGE,TRIM4#,*154

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-02050iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

*153

main72601-02070iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

*154

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-02030iZRE15#200706-200902

*153

main72602-02040iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

*154

72611ABASE, REAR SEAT LOCK

main72631-02030iZZE150200706-200811

*153, RH

main72631-02040iZRE15#200706-200902

*154, RH

main72632-02010iZZE150200706-200811

*153, LH

main72632-02020iZRE15#200706-200902

*154, LH

72630CLOCK ASSY, REAR SEATBACK, RH

main72603-02020iZRE15#200706-200902

72640ALOCK ASSY, REAR SEATBACK, LH

main72604-02020iADE150200706-200903

72663LEVER, REAR SEAT LOCK CONTROL, NO.1

main72663-02010-B0iADE150,ZRE15#,ZZE150200706-200707

DK.GRAY,TRIM1#,*153, RH

main72663-02010-E0iADE150,ZRE152..RX;ZRE151,ZZE150..RS200706-200707

GREGE,TRIM4#,*153, RH

main72663-02011-B0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

DK.GRAY,TRIM1#,*153, RH

main72663-02011-E0iZRE151..RS;ADE150,ZRE152..RX200902-201001

GREGE,TRIM4#,*153, RH

main72663-02021-B0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

DK.GRAY,TRIM1#,*154, RH

main72663-02021-E0iZRE151..RS;ADE150,ZRE152..RX200902-201001

GREGE,TRIM4#,*154, RH

main72664-02010-B0iADE150,ZRE15#,ZZE150200706-200707

DK.GRAY,TRIM1#,*153, LH

main72664-02010-E0iZRE152..RX;ADE150,ZRE151,ZZE150..RS,RX200706-200707

GREGE,TRIM4#,*153, LH

main72664-02011-B0iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

DK.GRAY,TRIM1#,*153, LH

main72664-02011-E0iZRE151..RS;ADE150,ZRE152..RX200902-201001

GREGE,TRIM4#,*153, LH

main72664-02021-B0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201210

DK.GRAY,TRIM1#,*154, LH

main72664-02021-E0iZRE151..RS;ADE150,ZRE152..RX200902-201001

GREGE,TRIM4#,*154, LH

72665COVER, REAR SEATBACK LOCK, RH

main72665-02010-B0iNRE150,ZRE151..TERRA200912-201210

DK.GRAY,TRIM1#,4#,*153

main72665-02030-B0iNRE150,ZRE151..TERRA200912-201210

DK.GRAY,TRIM1#,4#,*154

72666COVER, REAR SEATBACK LOCK, LH

main72666-02010-B0iZRE151..(5F,5FS)..RT;ADE150,ZRE152,ZZE150..RS,RT200706-200903

DK.GRAY,TRIM1#,4#,*153

main72666-02020-B0iNRE150,ZRE151..TERRA200912-201210

DK.GRAY,TRIM1#,4#,*154

72677ABASE, REAR SEATBACK LOCK CONTROL LEVER, RH

main72677-02010-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

DK.GRAY,TRIM1#,*153

main72677-02010-E0iADE150,ZRE152..RX;ZRE151,ZZE150..(5F,5FS)..RS200706-200903

GREGE,TRIM4#,*153

main72677-02020-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

DK.GRAY,TRIM1#,*154

main72677-02020-E0iZRE151..RS;ADE150,ZRE152..RX200902-201001

GREGE,TRIM4#,*154

72678BASE, REAR SEATBACK LOCK CONTROL LEVER, LH

main72678-02010-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-200903

DK.GRAY,TRIM1#,*153

main72678-02010-E0iADE150,ZRE151..RX,SOL200912-201210

GREGE,TRIM4#,*153

main72678-02020-B0iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

DK.GRAY,TRIM1#,*154

main72678-02020-E0iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-200903

GREGE,TRIM4#,*154

72749SPACER, REAR SEAT RECLINING

main72749-12010×4iZZE150200706-200811

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-02380-B3iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,SOL200811-201001

DK. GRAY,TRIM1#,*153

main72830-02400-B4iZRE151..RS200902-201001

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#,*153

main72830-02400-E3iZRE151..RS200902-201001

GREGE,TRIM4#,*153

main72830-02420-B3iZRE151..(5F,5FS)..RS;ADE150,ZRE152,ZZE150..RS200706-200903

DK. GRAY,TRIM1#,*154

main72830-02440-B4supersedes 72830-02420-B3iZRE151..RS200902-201001

SEAT COVER MATERIAL-NATURAL LEATHER,DK. GRAY,TRIM1#,*154

main72830-02440-E3iZRE151..RS200902-201001

GREGE,TRIM4#,*154

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main90080-38034iADE150,ZRE151..RX,SOL200912

*153

main90386-08077iZRE15#..RS,RX200706-200902

72848ACAP, SEAT ARMREST, NO.1

main72848-05010-B1iZRE151..(6F,6FS)..RS;ADE150,NRE150,ZRE152..RS,RX,SOL200811-201001

DK.GRAY,TRIM1#

main72848-05010-E0iADE150,ZRE152..RX200706-200903

GREGE,TRIM4#

72868BCOVER, CENTER ARMREST HINGE

main72868-02040-B0iADE150,ZRE151..RX,SOL200912-201210

DK.GRAY,TRIM1#,*153

main72868-02040-E0iZRE151..RS200902-201001

GREGE,TRIM4#,*153

main72868-12020-B0iZRE151..(5F,5FS)..RS;ADE150,ZRE152,ZZE150..RS,RX200706-200903

DK.GRAY,TRIM1#,*154

main72868-12020-E0iZRE151..RS200902-201001

GREGE,TRIM4#,*154

72996ACOVER, REAR SEATBACK

main72996-02050-B0iZRE151..(5F,5FS)..RT;ADE150,ZRE152,ZZE150..RS,RT200706-200903

DK.GRAY,TRIM1#,4#,*153

main72996-02080-B0iZRE151..(6F,6FS)..RT;ADE150,NRE150,ZRE152..RS,SOL,TERRA200811-201001

DK.GRAY,TRIM1#,*154

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-02080×2iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

7270202020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-02020

7270202030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-02030

7270212010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-12010

7889928020BOLT, FRONT SEAT

main78899-28020

9008020071

main90080-20071

9008038067

main90080-38067

90105W0191

main90105-W0191

9010906023

main90109-06023

9010906208

main90109-06208

90119W0181

main90119-W0181

9016740044

main90167-40044

9018308005

main90183-08005

9038612060

main90386-12060

9155180816

main91551-80816

9167180816

main91671-80816

9167180820

main91671-80820

56 parts on this diagram · 2 diagrams in section
