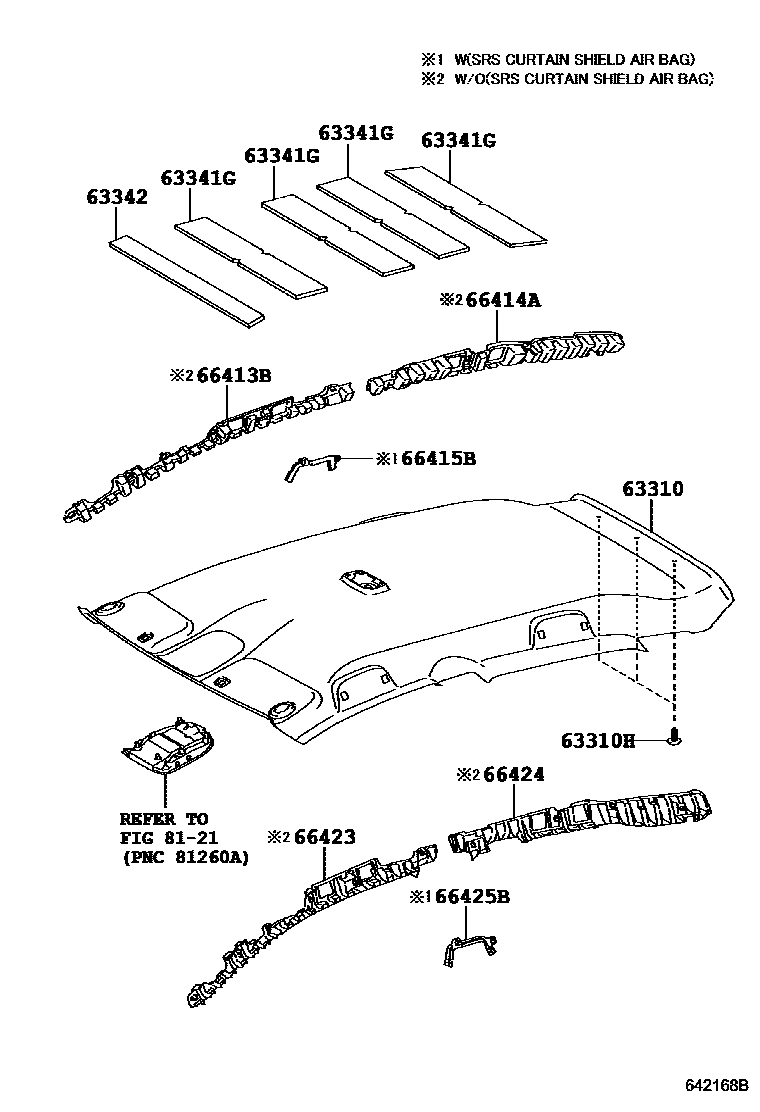

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-02430-B1iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

LT.GRAY,TRIM1#

main63310-02430-E1iZRE151..RS;ADE150,ZRE152..RX200706-201210

GRAGE,TRIM4#

63310HCLIP(FOR ROOF HEADLINING)

main90467-W0006-B0iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201210

LT.GRAY,TRIM1#

main90467-W0006-E0iZRE151..RS;ADE150,ZRE152..RX200706-201210

GREGE,TRIM4#

63341GPAD, ROOF SILENCER

main63341-02051iZZE150200706-201001

MOON ROOF-WITH

63342PAD, ROOF SILENCER, NO.2

main63342-02090iZZE150200706-201001

66413BSPACER, SIDE RAIL, FRONT RH

main66413-12030iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

main66413-12030iZZE150200706-200903

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

66414ASPACER, SIDE RAIL, REAR RH

main66414-12040iZZE150200706-200903

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main66414-12040iZRE15#200706-201001

66415BSPACER, SIDE RAIL, REAR NO.2 RH

66423SPACER, SIDE RAIL, FRONT LH

main66423-12030iZZE150200706-200903

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main66423-12030iZRE15#200706-201001

66424SPACER, SIDE RAIL, REAR LH

main66424-12040iZZE150200706-200903

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main66424-12040iZRE15#200706-201001

66425BSPACER, SIDE RAIL, REAR NO.2 LH

8121INTERIOR LAMP

→ Go to FIG 81-21

11 parts on this diagram · 2 diagrams in section
