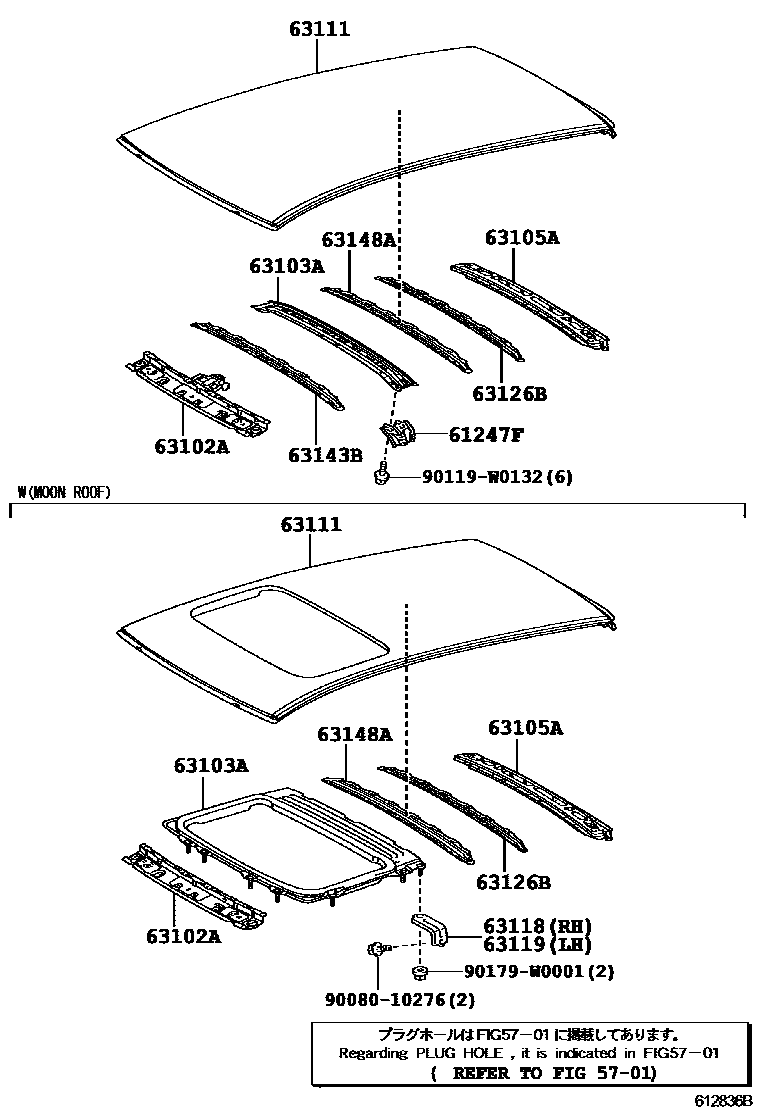

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

5701

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-02020iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02040iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63141-02060iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

(L)

main63141-12280iZZE150200706-201001

(J)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-02060iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

63111PANEL, ROOF

main63111-02220iZZE150200706-201001

63118SUPPORT, ROOF PANEL, RH

main63118-02010

63119SUPPORT, ROOF PANEL, LH

main63118-02010

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-02020iZZE150200706-201001

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-02030iZRE15#200706-201001

(L)

main63143-12120iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

(J)

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-02030iZZE150200706-201001

(L)

main63148-12050iADE150200706-201001

(J)

9008010276

main90080-10276

90119W0132

main90119-W0132

90179W0001

main90179-W0001

14 parts on this diagram · 2 diagrams in section
