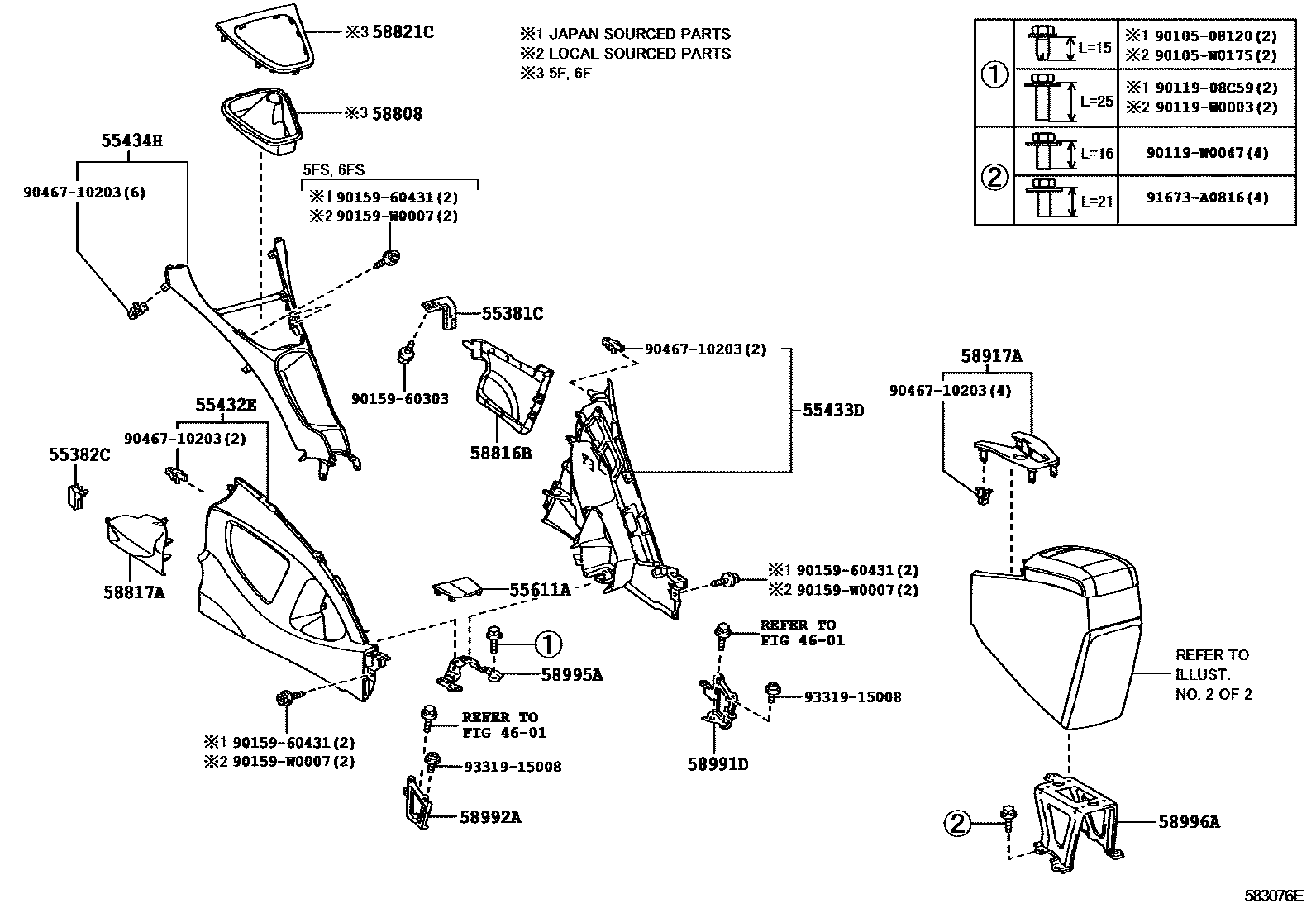

CONSOLE BOX & BRACKET

0001 1 0003 1 0005 1

4601

55381CBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-02070iZZE150200706-201001

55382CBRACKET, FINISH PANEL MOUNTING, NO.2

main55382-02050iZRE15#200706-201001

55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

main55432-02070-B0iZRE151..RS;ADE150,ZRE152..RX200706-201001

DK.GRAY,TRIM1#,4#,*153

main55432-02070-B0iZRE152..RS;ZRE151,ZZE150..RT200706-201001

DK.GRAY,TRIM1#,*153

main55432-02080-B0iNRE150,ZRE151..TERRA200912-201210

DK.GRAY,TRIM1#

main55432-02080-B0iADE150,ZRE151..RX,SOL200912-201210

DK.GRAY,TRIM1#,4#

main55432-02100-B0iZRE151..(6F,6FS)..RT;ADE150,NRE150,ZRE152..RS,SOL,TERRA200706-201001

DK.GRAY,TRIM1#,*154

main55432-02100-B0iZRE152..RX;ADE150,ZZE150..RS,RX;ZRE151..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,4#,*154

55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-02070-B0iZRE151..(6F,6FS)..RT;ADE150,NRE150,ZRE152..RS,SOL,TERRA200706-201001

DK.GRAY,TRIM1#,*153

main55433-02070-B0iZRE152..RX;ADE150,ZZE150..RS,RX;ZRE151..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,4#,*153

main55433-02080-B0iNRE150,ZRE151..TERRA200912-201210

DK.GRAY,TRIM1#,*153

main55433-02080-B0iADE150,ZRE151..RX,SOL200912-201210

DK.GRAY,TRIM1#,4#,*153

main55433-02100-B0iZRE152..RX;ADE150,ZZE150..RS,RX;ZRE151..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,4#,*154

main55433-02100-B0iZRE151..(6F,6FS)..RT;ADE150,NRE150,ZRE152..RS,SOL,TERRA200706-201001

DK.GRAY,TRIM1#,*154

55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-02080-B0iZRE151..(5F,5FS)..RT;ADE150,ZRE152,ZZE150..RS,RT200706-201001

DK.GRAY,TRIM1#,*153

main55434-02080-B0iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,4#,*153

main55434-02090-B0iNRE150,ZRE151..TERRA200912-201210

DK.GRAY,TRIM1#,4#

main55434-02090-B0iADE150,ZRE151..RX,SOL200912-201210

DK.GRAY,TRIM1#

main55434-02110-B0iZRE151..(5F,5FS)..RT;ADE150,ZRE152,ZZE150..RS,RT200706-201001

DK.GRAY,TRIM1#,4#,*154

main55434-02110-B0iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,*154

55611ATRAY, INSTRUMENT PANEL UNDER

main55611-02010-B0iADE150,ZRE151..RX,SOL200706-201210

DK.GRAY,TRIM1#,4#,*153

sub55611-02020

main55611-02010-B0iADE150,ZRE151..RX,SOL200706-201210

DK.GRAY,TRIM1#,*153

sub55611-02020

main55611-02020-B0iADE150,ZRE151..RX,SOL200706-201210

DK.GRAY,TRIM1#,*154

main55611-02020-B0iZRE152..RX;ADE150,ZZE150..RS,RX;ZRE151..(5F,5FS)..RS200706-201210

DK.GRAY,TRIM1#,4#,*154

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02130-B0iADE150,ZRE152..RS;ZRE151,ZZE150..5F..RT200706-201001

DK.GRAY,TRIM1#

main58808-02130-B0iADE150,ZRE152..RS;ZRE151,ZZE150..5F..RT200706-201001

DK.GRAY,TRIM1#,4#

main58808-02240-B0iADE150,ZRE151..RX,SOL200912-201210

DK.GRAY,TRIM1#,4#

main58808-02240-B0iADE150,ZRE151..RX,SOL200912-201210

DK.GRAY,TRIM1#

58816BINSERT, CONSOLE BOX

main58816-02030-B0iZRE151..(6F,6FS)..RT;ADE150,NRE150,ZRE152..RS,SOL,TERRA200706-201210

DK.GRAY,TRIM1#

main58816-02030-B0iZRE151..RS;ADE150,ZRE152..RX200706-201210

DK.GRAY,TRIM1#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-02030-B0iADE150,ZRE151..RX,SOL200706-201210

DK.GRAY,TRIM1#,4#

main58817-02030-B0iADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS200706-201210

DK.GRAY,TRIM1#

58821CPANEL, CONSOLE, UPPER

main58821-02270iNRE150,ZRE151..TERRA200912

main58821-02280iADE150,ZRE151..RX,SOL200912

main58821-02290iZRE152..RS;ZRE151..5F..RT200706-200902

INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)

main58821-02290iADE150..RS200706-200903

main58821-02290iZRE151..6F..RT;ADE150,NRE150,ZRE152..RS,TERRA200811-201001

INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,WITH(TRAY)

main58821-02300iADE150..RS200706-200903

INSTRUMENT PANEL CENTER CLUSTER-SILVER PAINT,W(TRAY)

main58821-02300iZZE150..RS200706-201001

58917ACOVER, CONSOLE BOX, REAR

main58917-02140-B0iADE150,ZRE152..RX;ZRE151,ZZE150..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,4#,*153

main58917-02140-B0iADE150,ZRE152..RX;ZRE151,ZZE150..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,*153

main58917-02150-B0iADE150,ZRE152..RS;ZRE151,ZZE150..(5F,5FS)..RT200706-201001

DK.GRAY,TRIM1#,*154

main58917-02150-B0iADE150,ZRE152..RX;ZRE151,ZZE150..(5F,5FS)..RS200706-201001

DK.GRAY,TRIM1#,4#,*154

main58917-02170-B1iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912-201011

DK.GRAY,TRIM1#

sub58917-02171

main58917-02171-B1iADE150,NRE150,ZRE151201012-201104

DK.GRAY,TRIM1#

sub58917-02172

main58917-02172-B1iADE150,NRE150,ZRE151201105-201210

DK.GRAY,TRIM1#

58991DBRACKET, CONSOLE BOX MOUNTING, UPR RH

main58991-02010iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH

main58992-02010iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-02010iADE150200706-201001

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02040iZZE150200706-201001

main58996-02120iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

9010508120

main90105-08120

90105W0175

main90105-W0175

9011908C59

main90119-08C59

90119W0003

main90119-W0003

90119W0047

main90119-W0047

9015960303

main90159-60303

9015960431

main90159-60431

90159W0007

main90159-W0007

9046710203

main90467-10203

91673A0816

main91673-A0816

9331915008

main93319-15008

27 parts on this diagram · 3 diagrams in section
