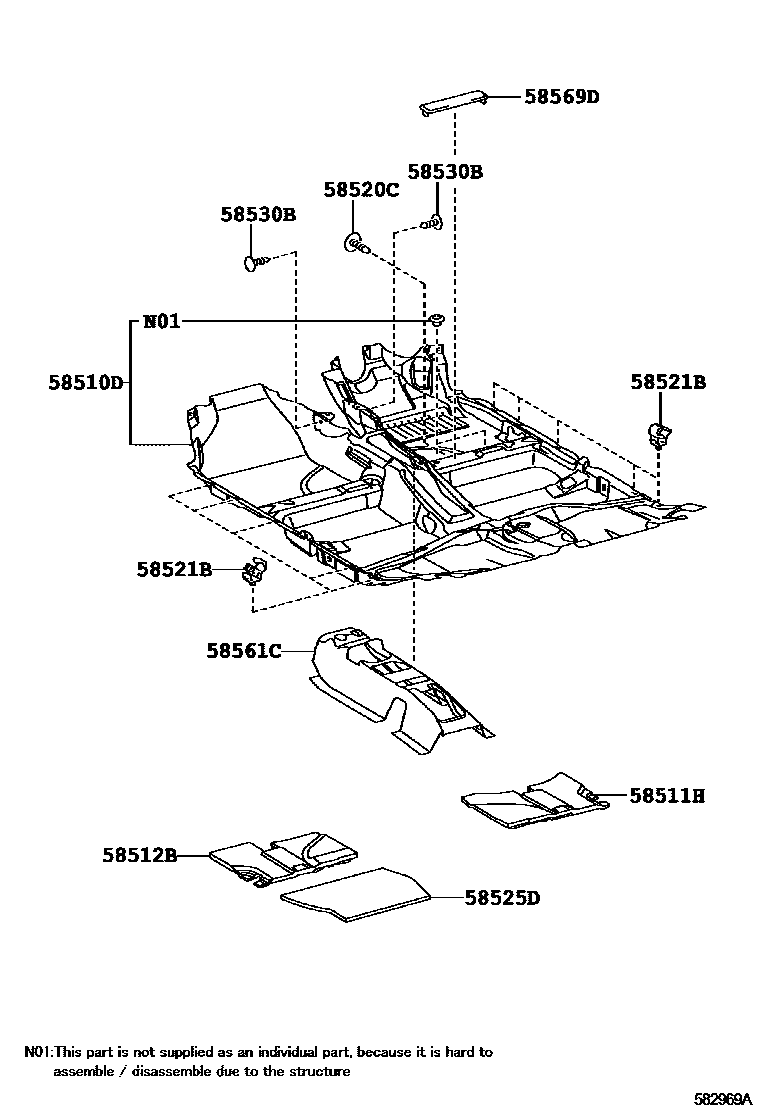

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-02840-B0iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201210

DK.GRAY,TRIM1#

main58510-02840-E1iZRE151..RS;ADE150,ZRE152..RX200706-201210

GREIGE,TRIM4#

58511HMAT, FLOOR, FRONT RH

main58512-02010iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

58512BMAT, FLOOR, FRONT LH

main58511-02020iZZE150200706-201001

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

DK.GRAY

sub90467-07049

58521BHOOK, FLOOR CARPET

main58521-02050iADE150200706-201001

58525DMAT, FRONT FLOOR, REAR NO.3

main58513-02060iZZE150200706-201001

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-B3iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

DK.GRAY

sub90467-W0006

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02120iZZE150200706-200903

sub58561-02121

main58561-02121iZRE151..RS,RT;ADE150,NRE150,ZRE152200903-201001

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02030-B0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

DK.GRAY

9 parts on this diagram · 1 diagram in section
