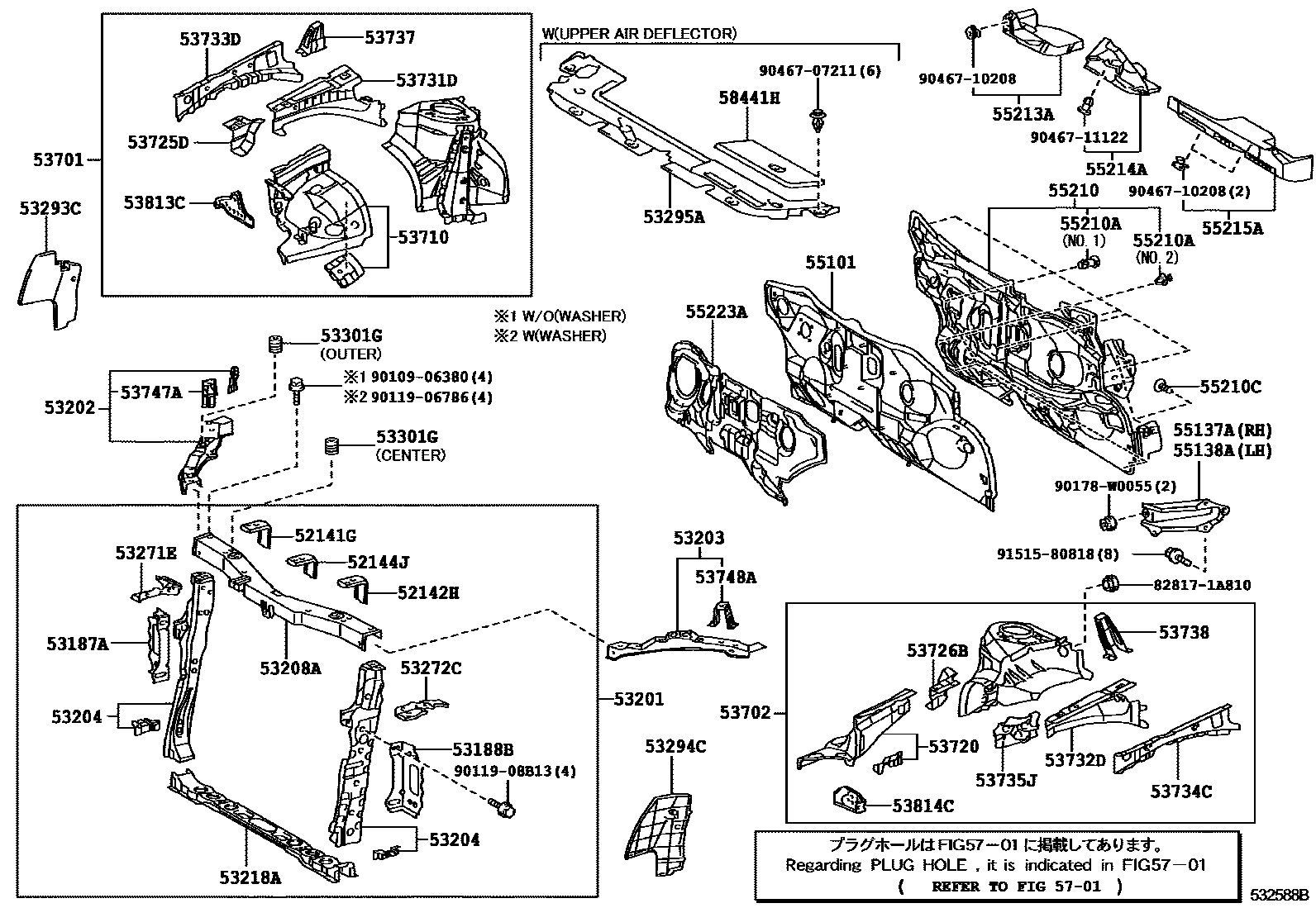

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52141GSTAY, FRONT BUMPER, RH

main52081-02020iZRE15#200706-201001

52142HSTAY, FRONT BUMPER, LH

main52082-02050iZZE150200706-201001

52144JSTAY, FRONT BUMPER, CENTER

main52085-02010iZZE150200706-201001

53187ASTAY, RADIATOR SUPPORT, RH

main53187-02010iZZE150200706-201001

53188BSTAY, RADIATOR SUPPORT, LH

main53188-02010iZZE150200706-201001

53201SUPPORT SUB-ASSY, RADIATOR

main53201-02901iZZE150200706-201201

sub53201-02905

sub53187-12030

sub53188-12030

sub90119-08B13

main53201-02905iADE150,NRE150,ZRE151201201

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-02030iADE150200706-201001

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-02040iADE150200706-201001

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53204-02010iZZE150200706-201001

LH

main53209-02040iADE150200706-201001

RH

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-02140iZRE15#200706-201001

*154

main53208-05030iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200810-201001

*153

53218ASUPPORT, RADIATOR, LOWER

main53218-02901iZZE150200706-201001

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-02010iADE150200706-201001

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-02010iZZE150200706-201001

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-02010iZZE150200706-201001

main53293-02080iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-02010iZZE150200706-201001

main53294-02080iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

53295ADEFLECTOR, RADIATOR UPPER AIR

main53141-02020iZRE15#200706-201001

sub53140-12010

53301GCUSHION, HOOD BUMPER

main53384-50010iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200912

OUTER

main90541-15019iZZE150200706-201001

OUTER

main90541-15022iZRE15#200706-201001

CENTER

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02080iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02090iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-02030iZZE150200706-201001

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-02030iZZE150200706-201001

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-02010iZZE150200706-201001

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-02010iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200706-201001

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02020iZZE150200706-201001

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02020iADE150200706-201001

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-02010iZZE150200706-201001

*153

main53733-12070iADE150200706-201001

*154

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-02010iZRE15#200706-201001

*153

main53734-12070iZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA200706-201001

*154

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-02010iZZE150200706-201001

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-02030iZZE150200706-201001

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-02040iZZE150200706-201001

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-02010iZZE150200706-201001

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-02010iZZE150200706-201001

53813CEXTENSION, FRONT FENDER, RH

main53813-02030iZZE150200706-201001

53814CEXTENSION, FRONT FENDER, LH

main53814-02030iADE150200706-201001

55101PANEL SUB-ASSY, DASH

main55101-02670iZRE151..5FS200706-200912

main55101-02680iZRE151..6F..(RS,RT);ADE150,NRE150,ZRE152200706-201210

main55101-02690iZZE150200706-200811

55137ABRACE, DASH TO FRAME, RH

main55137-02010iZZE150200706-201001

55138ABRACE, DASH TO FRAME, LH

main55138-02010iADE150200706-201001

55210INSULATOR ASSY, DASH PANEL

main55210-02200iZZE150200706-201001

55210ACLIP

main90467-11122iZZE150200706-201001

NO.1:REFER ILLUST.

main90467-11127iZZE150200706-201001

NO.2:REFER ILLUST.

55210CCLIP

main90467-08186-C0iZRE151..5F,5FS;ADE150,ZRE152,ZZE150200706-201210

BLACK

sub90467-08186

55213APAD, DASH PANEL SILENCER

main55213-02170iZZE150200706-201001

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-02020iZZE150200706-201001

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-02020iZZE150200706-201001

55223AINSULATOR, DASH PANEL, OUTER

main55223-02160iZZE150200706-201001

5701

58441HCOVER, BATTERY SERVICE HOLE

main58441-02010iZRE15#200706-201001

sub58441-12010

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9010906380

main90109-06380

9011906786

main90119-06786

9011908B13

main90119-08B13

90178W0055

main90178-W0055

9046707211

main90467-07211

9046710208

main90467-10208

9046711122

main90467-11122

9151580818

main91515-80818
