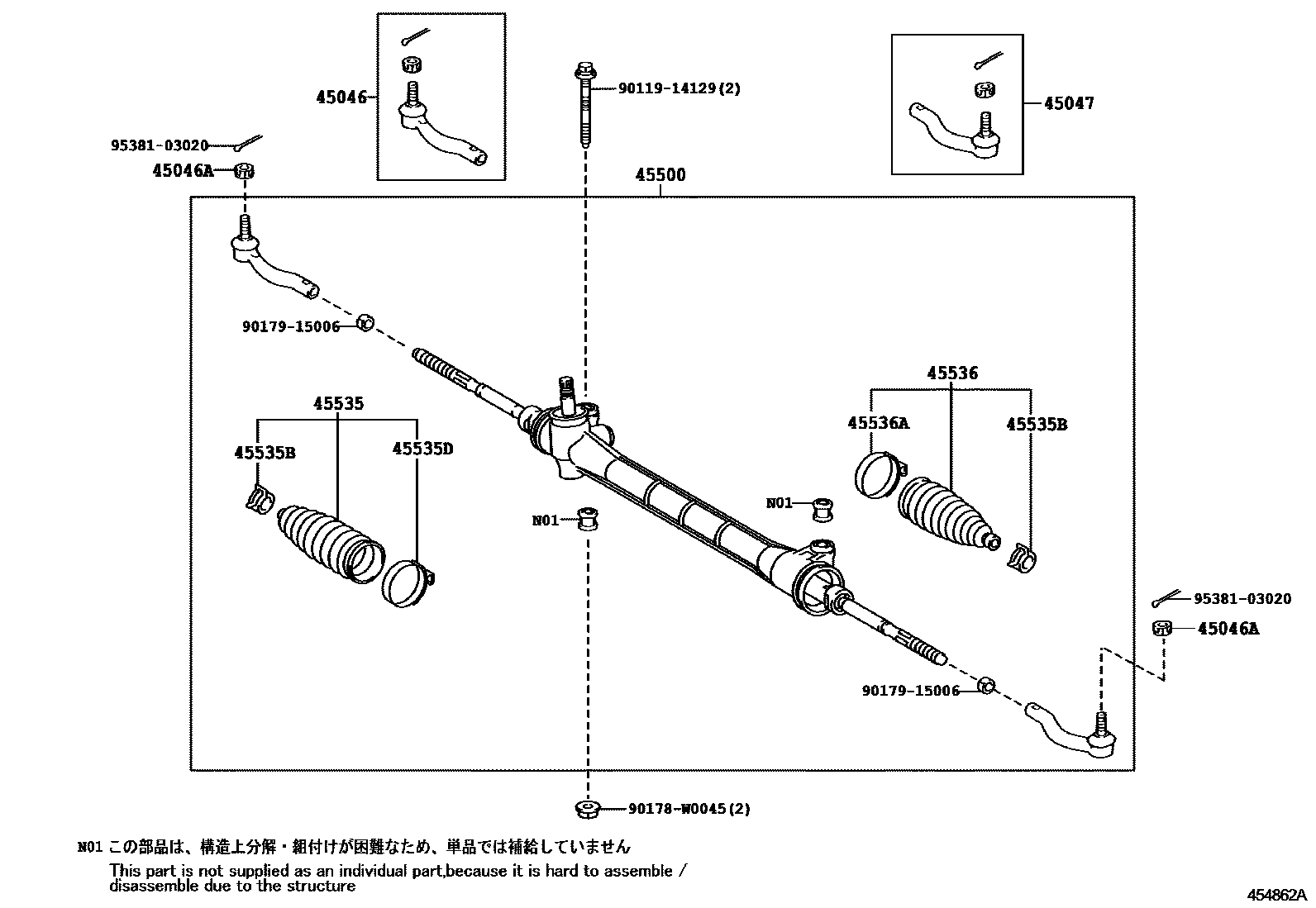

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09570iZZE150200706-201001

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZZE150200706-201001

45047END SUB-ASSY, TIE ROD, LH

main45047-09270iZZE150200706-201001

45500LINK ASSY, STEERING

main45500-02110iZZE150200706-201103

sub45500-02330

main45500-02330iADE150,NRE150,ZRE151201104

sub45510-02520

sub45046-09570

sub45047-09270

sub90179-15006

45535BOOT, STEERING RACK, NO.1

main45535-09120iZZE150200706-201001

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iZZE150200706-201001

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010iZZE150200706-201001

45536BOOT, STEERING RACK, NO.2

main45535-09120iZZE150200706-201001

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010iZZE150200706-201001

9011914129

main90119-14129

90178W0045

main90178-W0045

9017915006

main90179-15006

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section
