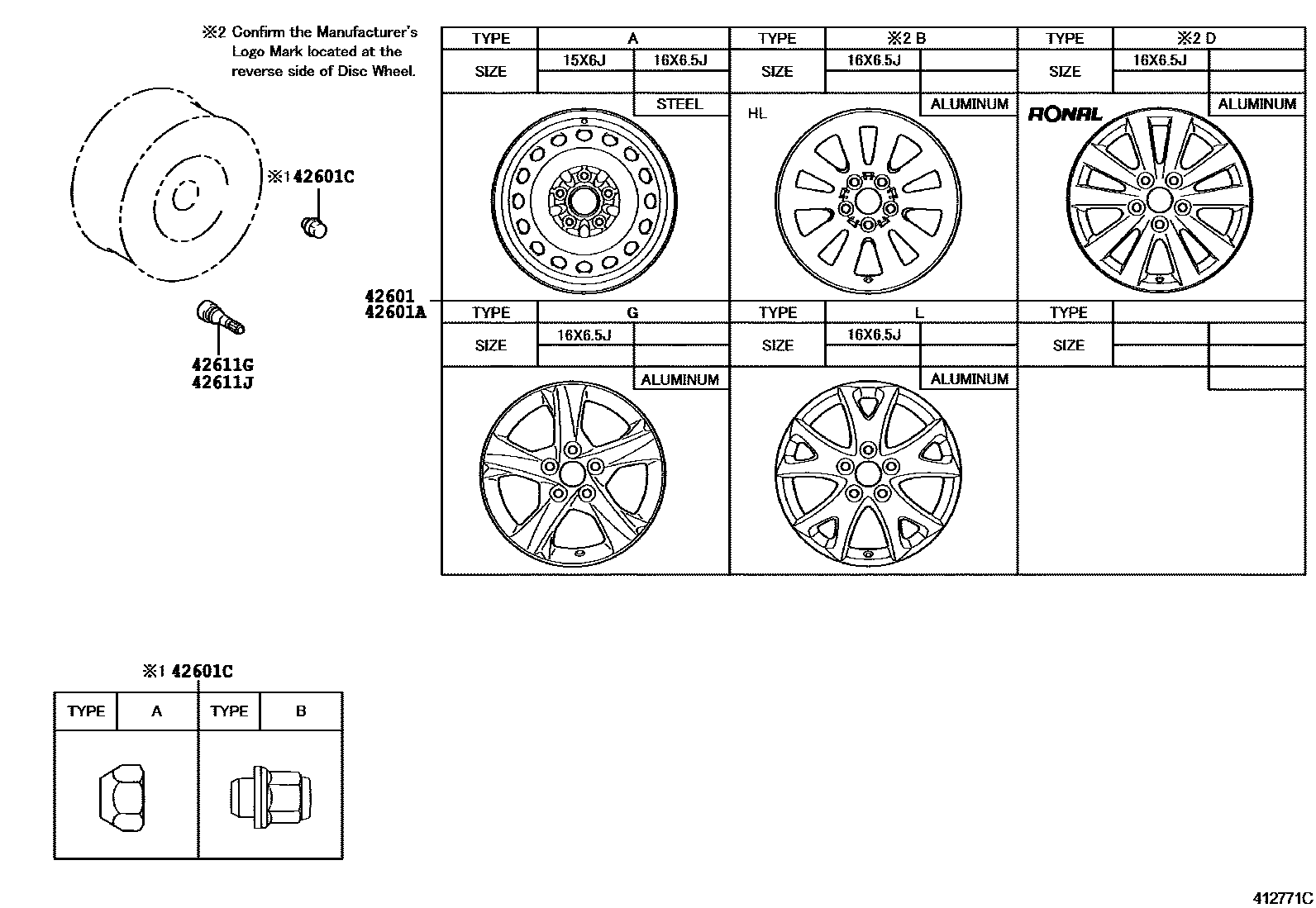

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-02750×4supersedes 42611-02740i200811-201001

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.

main42611-02760×4supersedes 42611-02750i200706-200811

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE B:REFER ILLUST.

main42611-02790×4supersedes 42611-02750i200706-200902

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE D:REFER ILLUST.

main42611-02C50×4i200912-201210

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE G:REFER ILLUST.

main42611-YY260×4i201105-201210

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE L:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02750supersedes 42611-02740i200912-201210

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×20i200706-200902

TYPE A:REFER ILLUST.

main90942-01033×20supersedes 90942-01007i200912

TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i200706-200903

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200706-200811

5 parts on this diagram · 3 diagrams in section
