TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

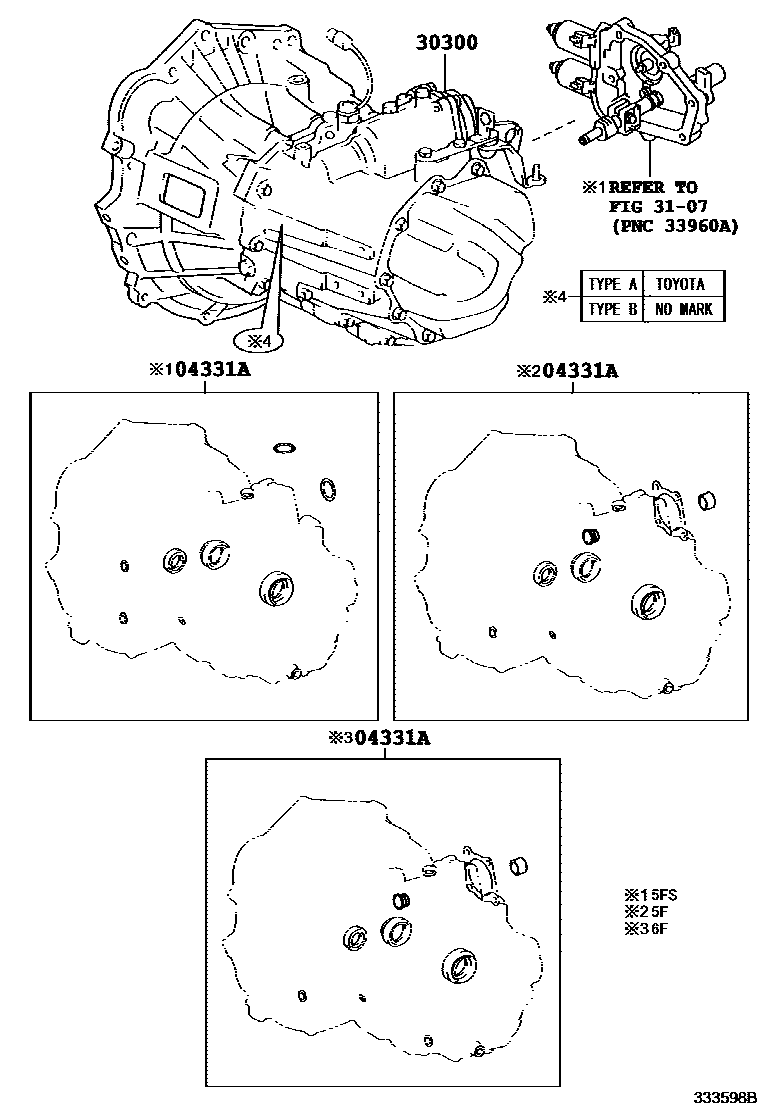

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-05210i200902-201210
*200
sub04331-05211
main04331-0D170i200811-201110
*200
sub04331-0D190
main04331-0D190i201110-201210
*200
sub04331-0D200
main04331-12630i200706-200903
main04331-12660i200706-200902
main04331-12680i200706-200902
sub04331-12681
main04331-12710i200706-200902
main04331-20200i200903-201210
main04331-20250i200902-201210
*199,*205
sub04331-20280
main04331-52590i200811-201210
*199,*205
sub04331-52592
main04331-52610i200902-201001
sub04331-52680
30300TRANSAXLE ASSY, MANUAL
main30300-02090i200706-200811
C50
sub30300-12E80
main30300-02100i200706-200902
C50,TYPE B:REFER ILLUST.
sub30300-12A90
main30300-02170i200811-201210
EC60,*200
sub30300-02171
sub35150-44010
main30300-02180i200902-201210
EC60,*200
sub30300-02181
sub35150-44010
main30300-12B30i200706-200903
EA61
main30300-12B50i200706-200902
C66
main30300-12C70i200811-201004
EC60,*199
sub30300-02170
main30300-12C80i200902-201004
EC60,*199
sub30300-02180
main30300-12D10i200903-201210
EA60
main30300-12D20i200712-200902
C50,TYPE A:REFER ILLUST.
main30300-12D40i200811-201004
EC60,*205
sub30300-02170
main30300-12D41i201004-201210
EC60,*205
main30300-12D50i200902-201004
EC60,*205
sub30300-02180
sub30300-12D51
main30300-12D51i201004-201210
EC60,*205
main30330-12040i200902-200912
EC60A
sub30330-12041
main30340-12020i200706-200902
C50A
3107

3 parts on this diagram · 5 diagrams in section
