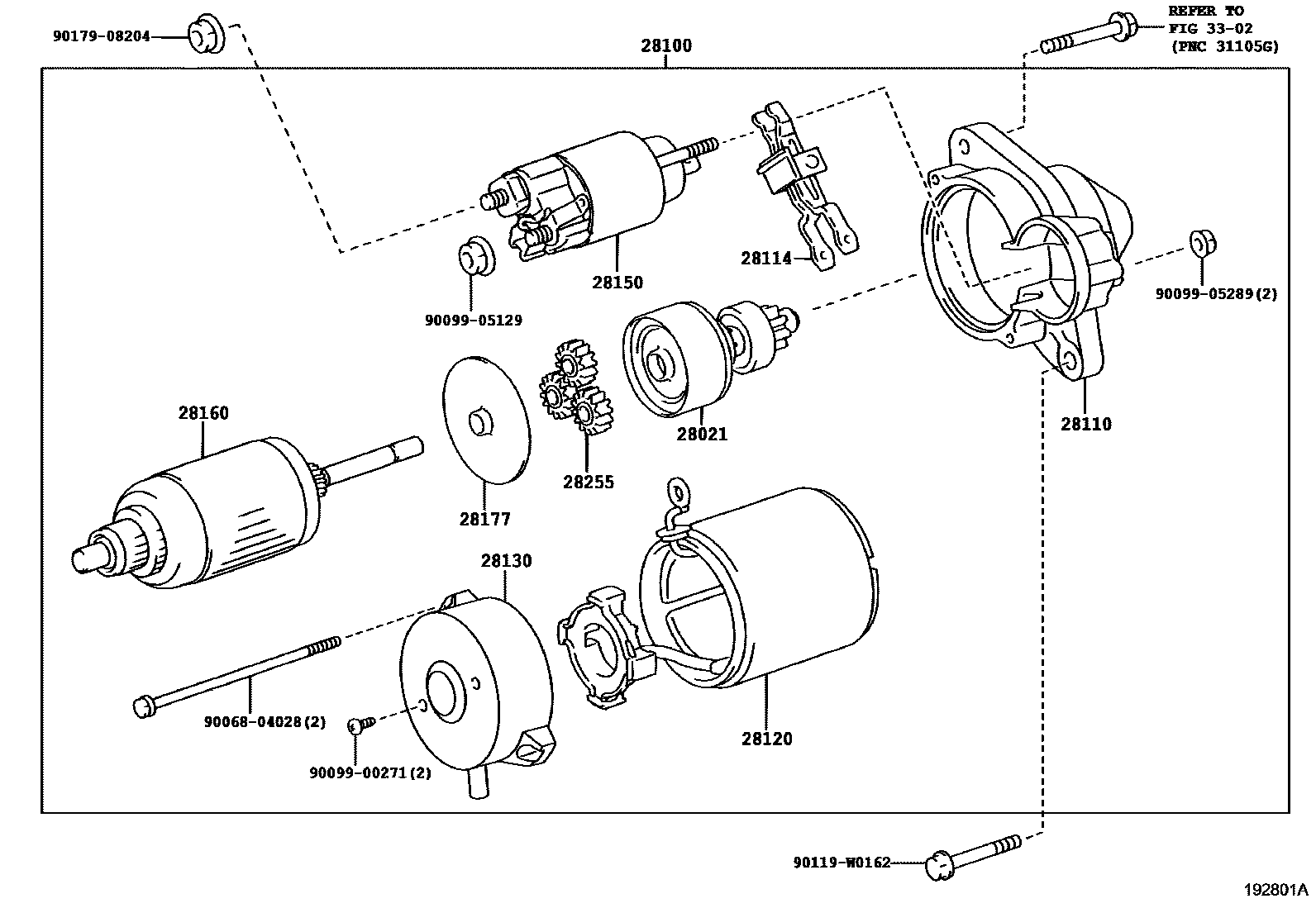

STARTER

0001 112V 2.0KW 0002 112V 1.1KW 0003 112V 1.1KW 0004 112V 1.3KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0R010i1ADFTV..ADE150..RX200706-201001

main28021-37050i1NRFE..NRE150200811-201001

28100STARTER ASSY

main28100-0D130i4ZZFE..ZZE150200706-200811

12V 1.1KW

main28100-0R010i1ADFTV..ADE150200706-201001

12V 2.0KW

sub28100-0R030

main28100-0T030i1ZR#,2ZRFE..ZRE15#..RS,RT,RX200706-201001

12V 1.1KW

main28100-0Y010i1NRFE..NRE150..TERRA200811-201001

12V 1.3KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0D130i4ZZFE..ZZE150200706-200811

main28110-0R010i1ADFTV..ADE150200706-201001

main28110-0T030i1ZRFAE..ZRE151200706-201001

main28110-0Y010i1NRFE..NRE150200811-201001

28114PIN, STARTER DRIVE LEVER SET

main28114-0R010i1ADFTV..ADE150..RX200706-201001

28120YOKE ASSY, STARTER

main28120-0D130i1ZRFE,2ZRFE..ZRE15#200706-201001

main28120-0J050i1NRFE..NRE150..TERRA200811-201001

main28120-38020i1ADFTV..ADE150..RX200706-201001

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0D130i4ZZFE..ZZE150200706-201001

main28130-0R010i1ADFTV..ADE150..RX200706-201001

main28130-0Y010i1NRFE..NRE150..TERRA200811-201001

28150SWITCH ASSY, MAGNET STARTER

main28150-0D130i1ZRFAE..ZRE151200706-201001

main28150-37020i1ADFTV..ADE150200706-201001

main28150-40090i1NRFE..NRE150..TERRA200811-201001

28160ARMATURE ASSY, STARTER

main28160-0D130i1ZR#,2ZRFE..ZRE15#..RS,RT,RX200706-201001

main28160-0D180i1NRFE..NRE150200811-201001

main28160-0G020i1ADFTV..ADE150200706-201001

28177PLATE(FOR STARTER ARMATURE)

main28177-0G020i1ADFTV..ADE150200706-201001

main28177-37050i1NRFE..NRE150..TERRA200811-201001

28255GEAR, PLANET

main28255-0G040i1ADFTV..ADE150..RX200706-201001

main28255-37050i1NRFE..NRE150200811-201001

3302

9006804028

main90068-04028

9009900271

main90099-00271

9009905129

main90099-05129

9009905289

main90099-05289

90119W0162

main90119-W0162

9017908204

main90179-08204

17 parts on this diagram · 4 diagrams in section
