ALTERNATOR

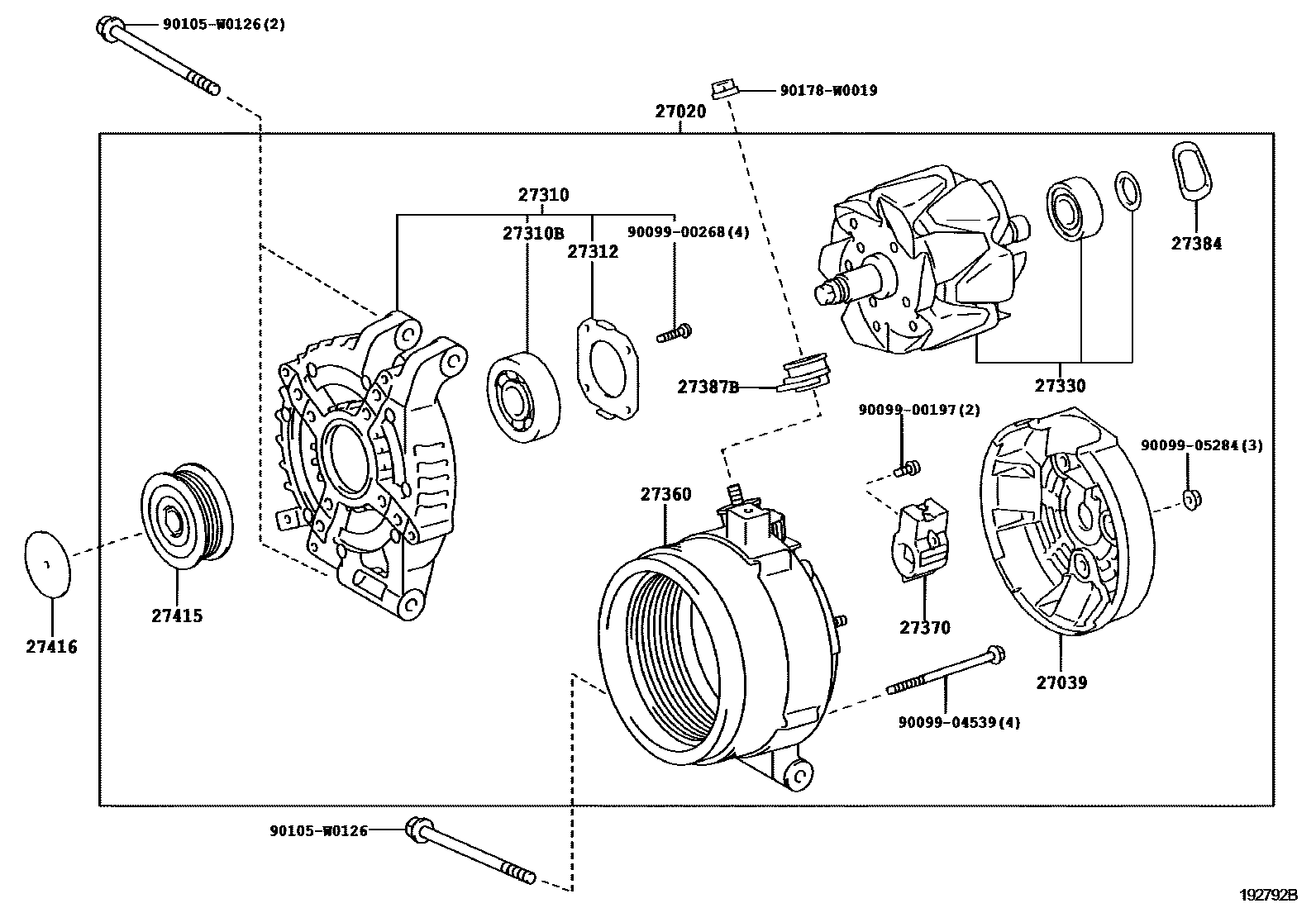

Parts diagram

27020ALTERNATOR ASSY

main27060-0D190i200706-200810

12V 90A

main27060-0G011i200903-201001

12V 100A

main27060-0R011i200706-200903

12V 100A

main27060-0T010i200706-201001

12V 90A

main27060-0T080i200902-201010

12V 90A

main27060-0T081i201010

12V 90A

main27060-0Y050i200811-201001

12V 80A

27039COVER, ALTERNATOR REAR END

main27039-0C020i200811-201001

main27039-26170i200706-200707

main27039-27090i200707-201001

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0Y010i200811-201001

main27310-27090i200706-201001

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10029i200811-201001

main90099-10223i200706-201001

27312PLATE, RETAINER

main27312-0C020i200811-201001

main27312-72100i200706-201001

27330ROTOR ASSY, ALTERNATOR

main27330-0M040i200811-201001

main27330-30070i200706-201001

27360COIL ASSY, ALTERNATOR

main27360-0Y080i200811-201001

main27360-26160i200706-200903

main27360-27090i200903-201001

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0M040i200811-201001

main27370-58460i200706-201001

27384WASHER

main27384-0C020i200811-201001

main27384-50030i200706-201001

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0C020i200811-201001

main27387-20130i200706-201001

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T020i200706-201010

main27415-0T021i200903-201210

main27415-26010i200706-201210

27416CAP, ALTERNATOR PULLEY

main27416-0W020i200706-201210

main27416-27010i200706-201210

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90105W0126

main90105-W0126

90178W0019

main90178-W0019

18 parts on this diagram · 4 diagrams in section
