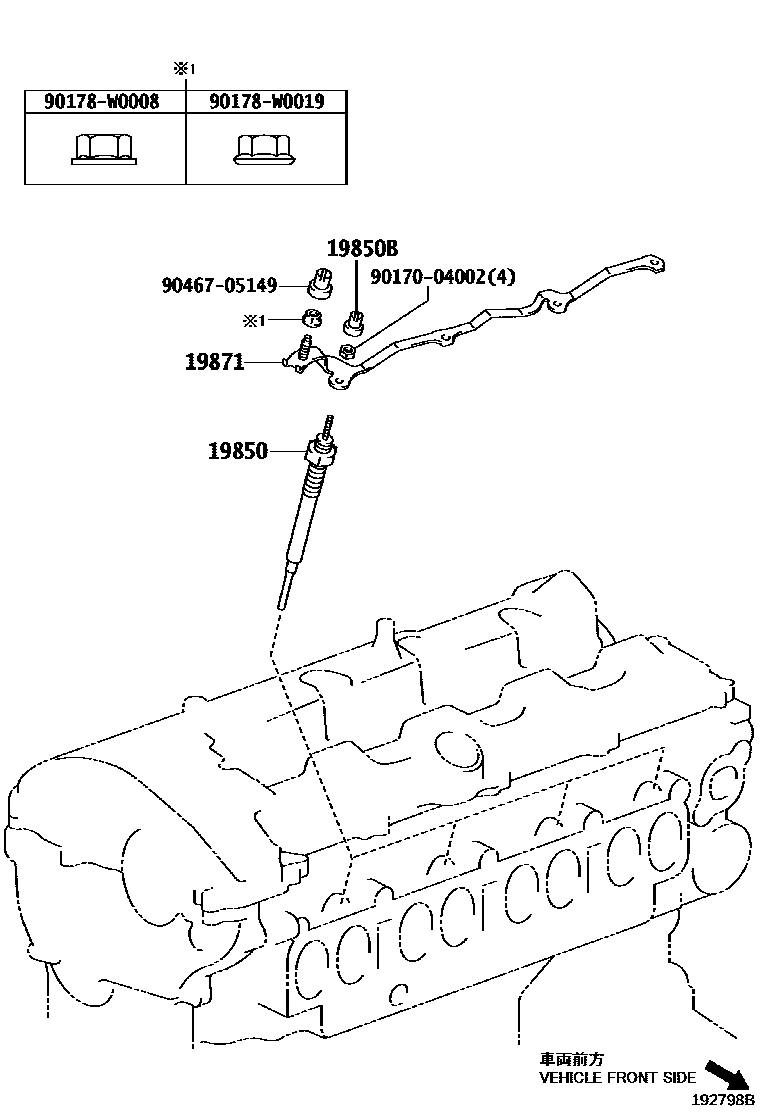

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19850PLUG ASSY, GLOW

main19850-0R010i1ADFTV..ADE150200706-200903

*BV-GV=12V-11V

main19850-0R022i1ADFTV..ADE150200903-201107

*BV-GV=12V-11V,(L)

main19850-26022i1ADFTV..ADE150200903-201107

*BV-GV=12V-11V,(J)

main19850-26022i1ADFTV..ADE150201107

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1ADFTV..ADE150200706-201001

19871CONNECTOR, GLOW PLUG NO.1

main19871-26010i1ADFTV..ADE150200706-201001

9017004002

main90170-04002

90178W0008

main90178-W0008

90178W0019

main90178-W0019

9046705149

main90467-05149

7 parts on this diagram · 4 diagrams in section
