Toyota 166310 — EXHAUST PIPE

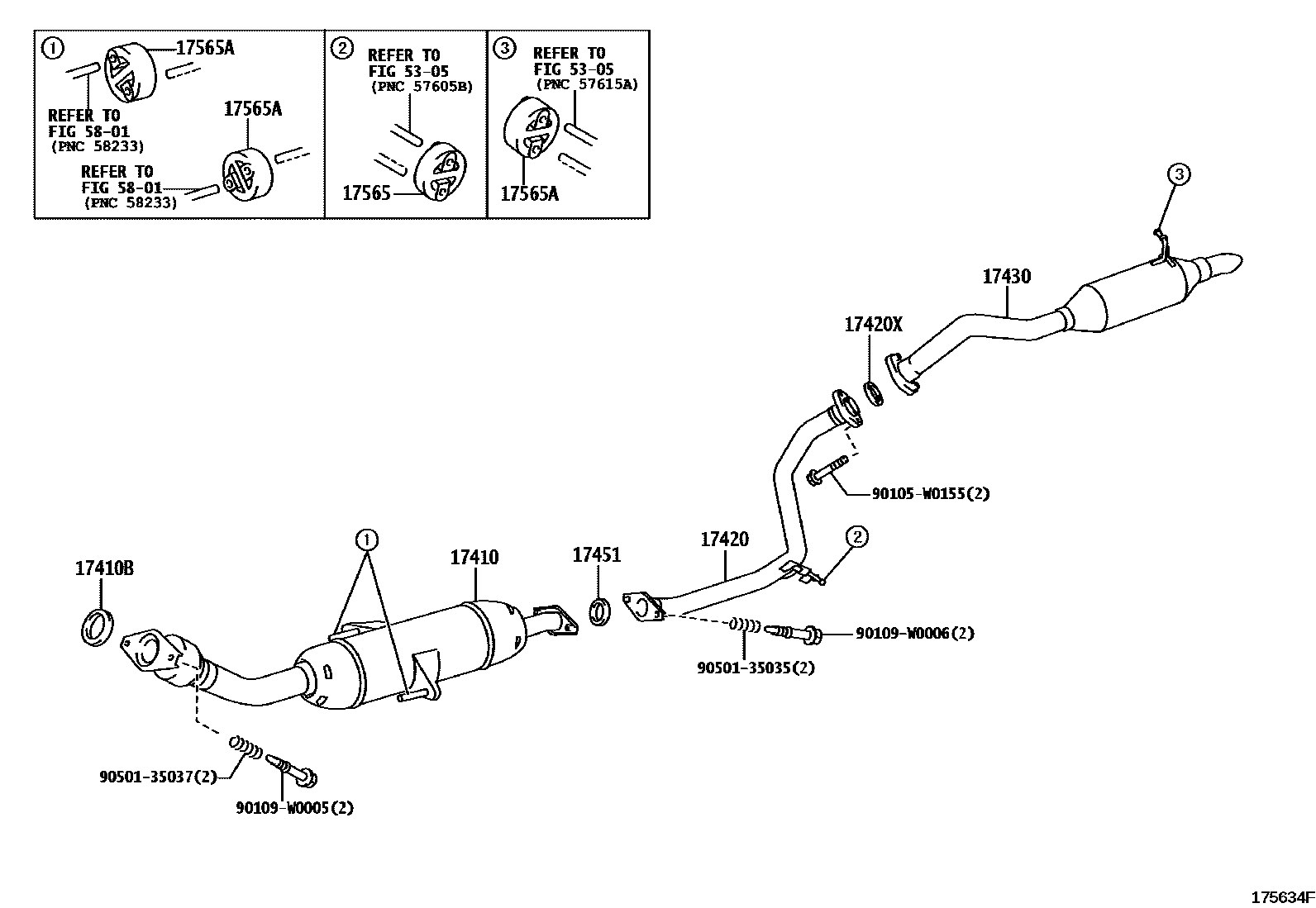

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

17410BGASKET, EXHAUST PIPE

17420PIPE ASSY, EXHAUST, CENTER

17420XGASKET, EXHAUST PIPE, CENTER

17430PIPE ASSY, EXHAUST, TAIL

17451GASKET, EXHAUST PIPE

17565SUPPORT, EXHAUST PIPE, NO.5

17565ASUPPORT, EXHAUST PIPE, NO.4

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90105W0155

90109W0005

90109W0006

9050135035

9050135037

15 parts on this diagram · 4 diagrams in section

EXHAUST PIPE for Toyota 166310

This section contains 18 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 166310. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, PIPE ASSY, EXHAUST, CENTER NO.2, GASKET, EXHAUST PIPE, CENTER.
