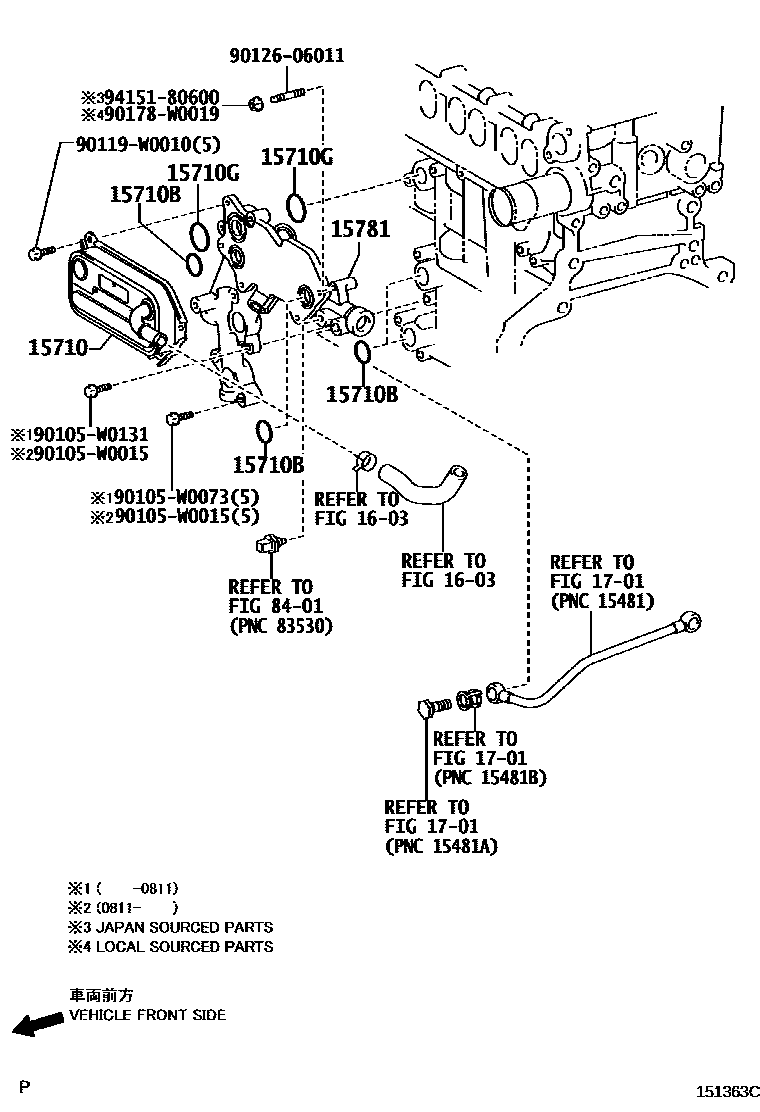

ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15710-0R010i1ADFTV..ADE150200706-201010

sub15710-0R011

main15710-0R011i1ADFTV..ADE150201010

15710BRING, O(FOR OIL COOLER)

main90301-24018i1ADFTV..ADE150200706-201001

15710GRING, O, NO.2

main90301-29013i1ADFTV..ADE150200706-201001

15781BRACKET, OIL COOLER, NO.1

main15781-26011i1ADFTV..ADE150200706-200811

sub15781-26030

sub91551-80635

main15781-26030i1ADFTV..ADE150200811-201011

main15781-26031i1ADFTV..ADE150201011

1603

1701

8401

90105W0015

main90105-W0015

90105W0073

main90105-W0073

90105W0131

main90105-W0131

90119W0010

main90119-W0010

9012606011

main90126-06011

90178W0019

main90178-W0019

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
