Toyota 166310 — ENGINE OIL PUMP

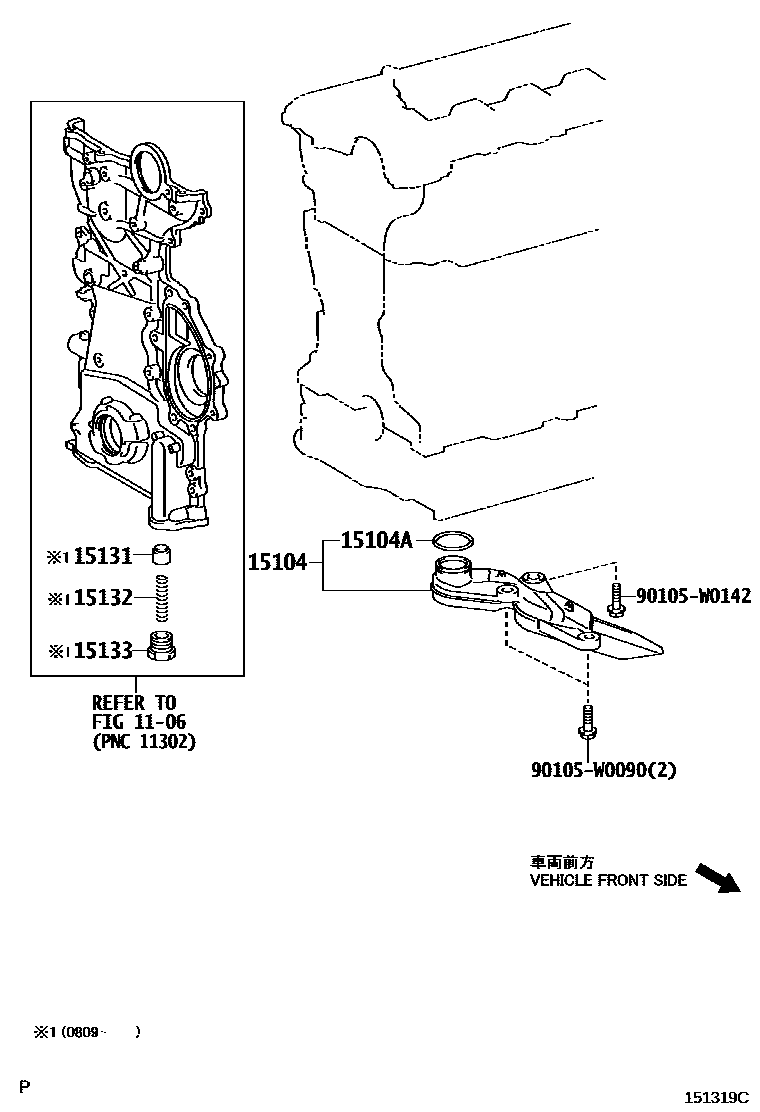

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

15104ARING, O(FOR OIL STRAINER)

15131VALVE, OIL PUMP RELIEF

15132SPRING, OIL PUMP RELIEF VALVE

15133PLUG, OIL PUMP RELIEF VALVE

90105W0090

90105W0142

8 parts on this diagram · 5 diagrams in section

ENGINE OIL PUMP for Toyota 166310

This section contains 27 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota 166310. Key components include: CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE, COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET).
