PARTIAL ENGINE ASSEMBLY

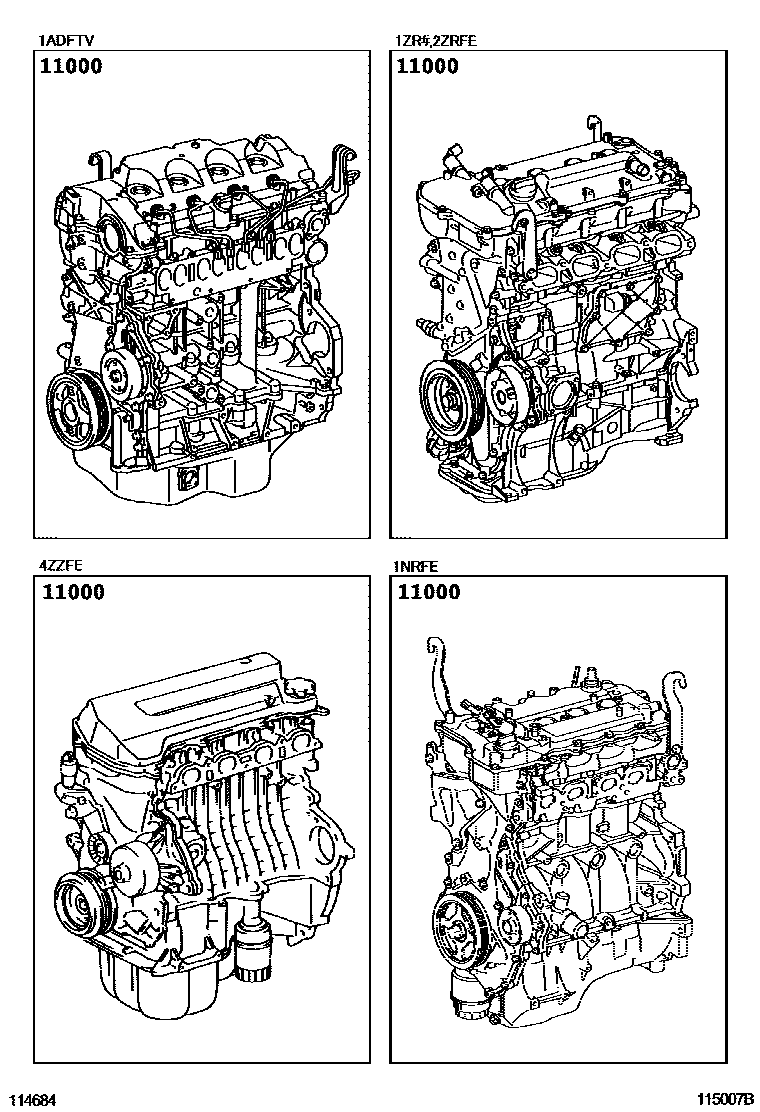

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0D300i200706-200811
sub19000-22A51
sub16258-28030
sub16268-22101
main19000-0R080i200801-200802
sub16261-0R080
sub16279-26050
sub16283-26011
sub26100-26020
sub96136-41501
main19000-0R081i200802-200903
sub19000-26401
main19000-0R120i200912-201110
sub16278-0R010
sub25760-26200
sub25770-26172
main19000-0R121i201110-201210
main19000-0T010i200810-200902
(L)
main19000-0T020i200810-200902
(L)
main19000-0T070i200912-201210
sub19000-0T072
main19000-0T080i200902-201001
sub19000-0T082
main19000-0T100i200902-201001
sub19000-0T102
main19000-37240i200706-200810
main19000-37260i200706-200810
main19000-47090i200912-201002
sub91671-G0825
sub94188-00841
main19000-47091i201002-201210
sub19000-47092

1 parts on this diagram · 1 diagram in section
