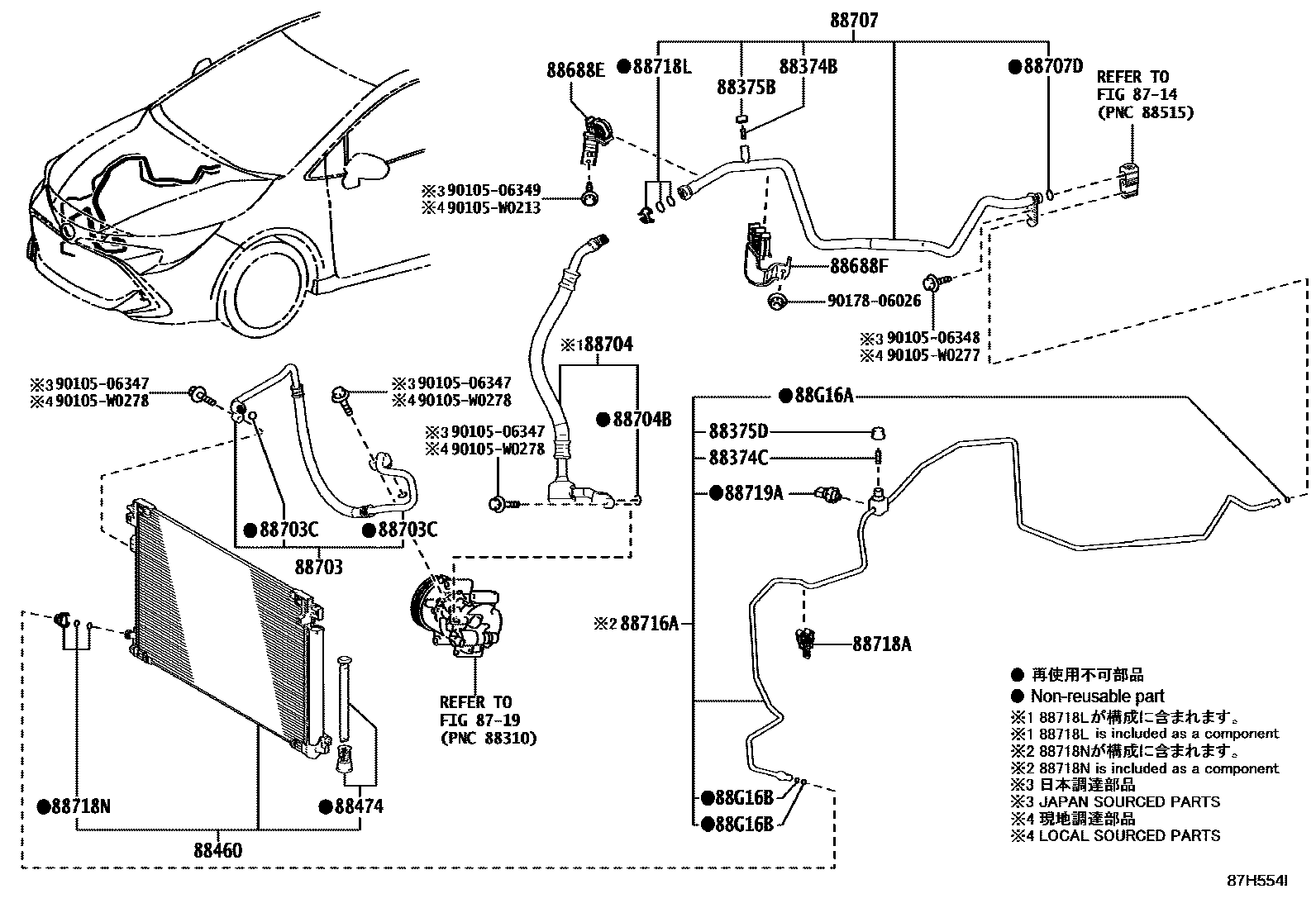

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
main88374-30010iMZEH12,NRE210,ZWE211; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88374CVALVE, SERVICE, NO.2
REFRIGERANT CORRESPONDENCE-HFC134A
main88374-30020iMZEH12..RHD;NRE210..EUR;ZWE211..LHD; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
REFRIGERANT CORRESPONDENCE-HFC134A
88375BCAP, SERVICE VALVE, NO.1
REFRIGERANT CORRESPONDENCE-HFC134A
main88375-30310iMZEH12,NRE210,ZWE211..EUR; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88375DCAP, SERVICE VALVE, NO.2
REFRIGERANT CORRESPONDENCE-HFC134A
main88375-30320iMZEH12,NRE210,ZWE211..EUR; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88460CONDENSER ASSY, COOLER
main884A0-02030iNRE210..EUR; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
REFRIGERANT CORRESPONDENCE-HFC134A
88474DRYER, COOLER
main88474-12020iMZEH12,NRE210,ZWE211; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1
main88688-02C70iNRE210; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2
main88688-02C80iNRE210; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88703HOSE SUB-ASSY, DISCHARGE
main88703-02C90iNRE210; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
main88704-02D10iNRE210; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707PIPE SUB-ASSY, SUCTION
REFRIGERANT CORRESPONDENCE-HFC134A
main88707-02500iNRE210..RHD; NRE210..RHD..(G,N);NRE210..RHD..CVT..D;NRE210..RHD..WG..6F..D; NRE210..RHD..HB..6F..D201901
LIGHT GRADE; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
main88707-02480iNRE210..LHD..(G,N);NRE210..LHD..WG..6F..D;NRE210..LHD..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..EUR; NRE210..LHD..HB..6F..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
REFRIGERANT CORRESPONDENCE-HFC134A
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&FUEL CAUTION LABEL-ENGLISH&MOROCCO SPEC&CATALYTIC CONVERTER-9R-08 & 11R-08
88707DRING, O(FOR SUCTION TUBE)
main90068-14038iMZEH12,NRE210; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR; ZWE211..LHD201901
ID=13.4,OD=18.2; ID=13.4,OD=18.2,AIR CONDITIONER-WITHOUT; ID=13.4,OD=18.2,LIGHT GRADE; ID=13.4,OD=18.2,NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; ID=13.4,OD=18.2,OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; ID=13.4,OD=18.2,OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; ID=13.4,OD=18.2,OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; ID=13.4,OD=18.2,OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; ID=13.4,OD=18.2,OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; ID=13.4,OD=18.2,REFRIGERANT CORRESPONDENCE-HFC134A; ID=13.4,OD=18.2,REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
ID=13.4,OD=18.2
88716APIPE, COOLER REFRIGERANT LIQUID, A
REFRIGERANT CORRESPONDENCE-HFC134A
main88710-02D60iNRE210..RHD; NRE210..RHD..(G,N);NRE210..RHD..CVT..D;NRE210..RHD..WG..6F..D; NRE210..RHD..HB..6F..D201901
LIGHT GRADE; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
main88710-02D40iNRE210..LHD..(G,N);NRE210..LHD..WG..6F..D;NRE210..LHD..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..EUR; NRE210..LHD..HB..6F..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
REFRIGERANT CORRESPONDENCE-HFC134A
REFRIGERANT CORRESPONDENCE-HFC134A
REFRIGERANT CORRESPONDENCE-HFC134A
REFRIGERANT CORRESPONDENCE-HFC134A
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
main88718-02A30iMZEH12,NRE210,ZWE211; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88718LCLAMP, PIPING
main88718-52280iMZEH12,NRE210,ZWE211; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88718NCLAMP, PIPING
main88718-1E150iMZEH12,NRE210,ZWE211; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88719ASENSOR, AIR CONDITIONER PRESSURE
main88719-11010iMZEH12,NRE210,ZWE211; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
AIR CONDITIONER-WITHOUT; LIGHT GRADE; NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88G16ARING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
main90099-14119iMZEH12,NRE210,ZWE211; NRE210..G,N;NRE210..WG..6F..D;NRE210..CVT..D..EUR; NRE210..LHD..CVT..D..EUR; NRE210..LHD..HB..6F..D..EUR; NRE210..RHD..HB..6F..D;NRE210..LHD..CVT..D..EUR201901
ID=6.7,OD=10.3; ID=6.7,OD=10.3,AIR CONDITIONER-WITHOUT; ID=6.7,OD=10.3,LIGHT GRADE; ID=6.7,OD=10.3,NTA SPEC(EUROPE)&AIR CONDITIONER-WITHOUT; ID=6.7,OD=10.3,OUTSIDE EUROPE&ALGERIA SPEC&AIR CONDITIONER-WITHOUT; ID=6.7,OD=10.3,OUTSIDE EUROPE&EGYPT SPEC&AIR CONDITIONER-WITHOUT; ID=6.7,OD=10.3,OUTSIDE EUROPE&MOROCCO SPEC&AIR CONDITIONER-WITHOUT; ID=6.7,OD=10.3,OUTSIDE EUROPE&NEW CALEDONIA SPEC&AIR CONDITIONER-WITHOUT; ID=6.7,OD=10.3,OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT; ID=6.7,OD=10.3,REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
88G16BRING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
main90099-14158×2iNRE210..RHD; NRE210..RHD..(G,N);NRE210..RHD..CVT..D;NRE210..RHD..WG..6F..D; NRE210..RHD..HB..6F..D201901
ID=6.7,OD=10.3; ID=6.7,OD=10.3,LIGHT GRADE; ID=6.7,OD=10.3,REFRIGERANT CORRESPONDENCE-HFC134A&AIR CONDITIONER-WITHOUT
9010506347
main90105-06347
9010506348
main90105-06348
9010506349
main90105-06349
90105W0213
main90105-W0213
90105W0277
main90105-W0277
90105W0278
main90105-W0278
9017806026
main90178-06026
30 parts on this diagram · 6 diagrams in section
