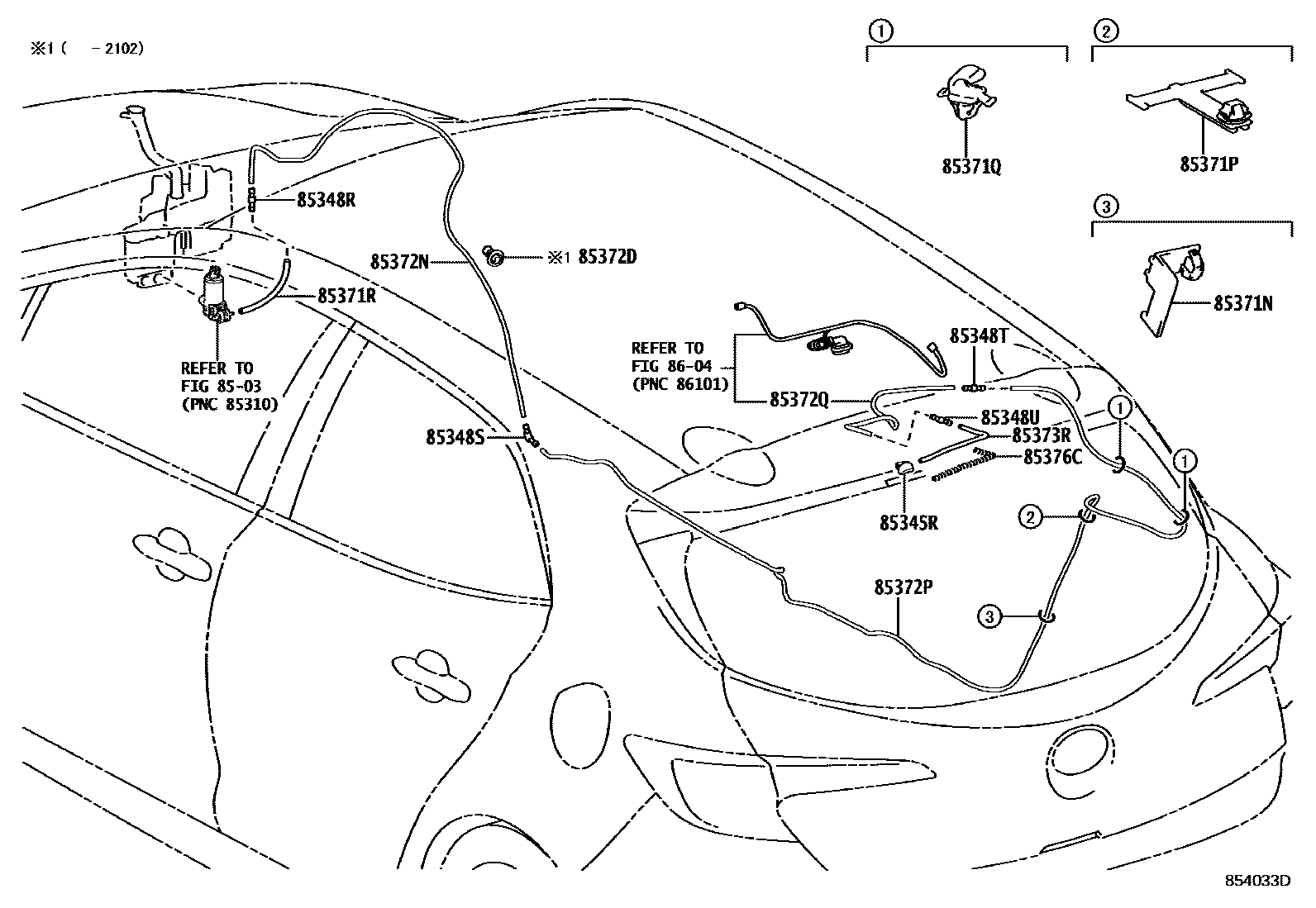

Toyota COROLLA (UKP)166 — REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85348UJOINT, REAR WASHER HOSE, NO.3

85371NCLAMP, REAR WASHER HOSE

85371PCLAMP, REAR WASHER HOSE, NO.2

85371QCLAMP, REAR WASHER HOSE, NO.3

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372DGROMMET, REAR WASHER HOSE

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

85376CSPRING, WASHER HOSE

8604ANTENNA

→ Go to FIG 86-04

17 parts on this diagram · 2 diagrams in section

REAR WASHER for Toyota COROLLA (UKP)166

This section contains 17 genuine Toyota parts for the REAR WASHER system of the Toyota COROLLA (UKP)166. Key components include: WINDSHIELD WASHER, NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2.
