ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

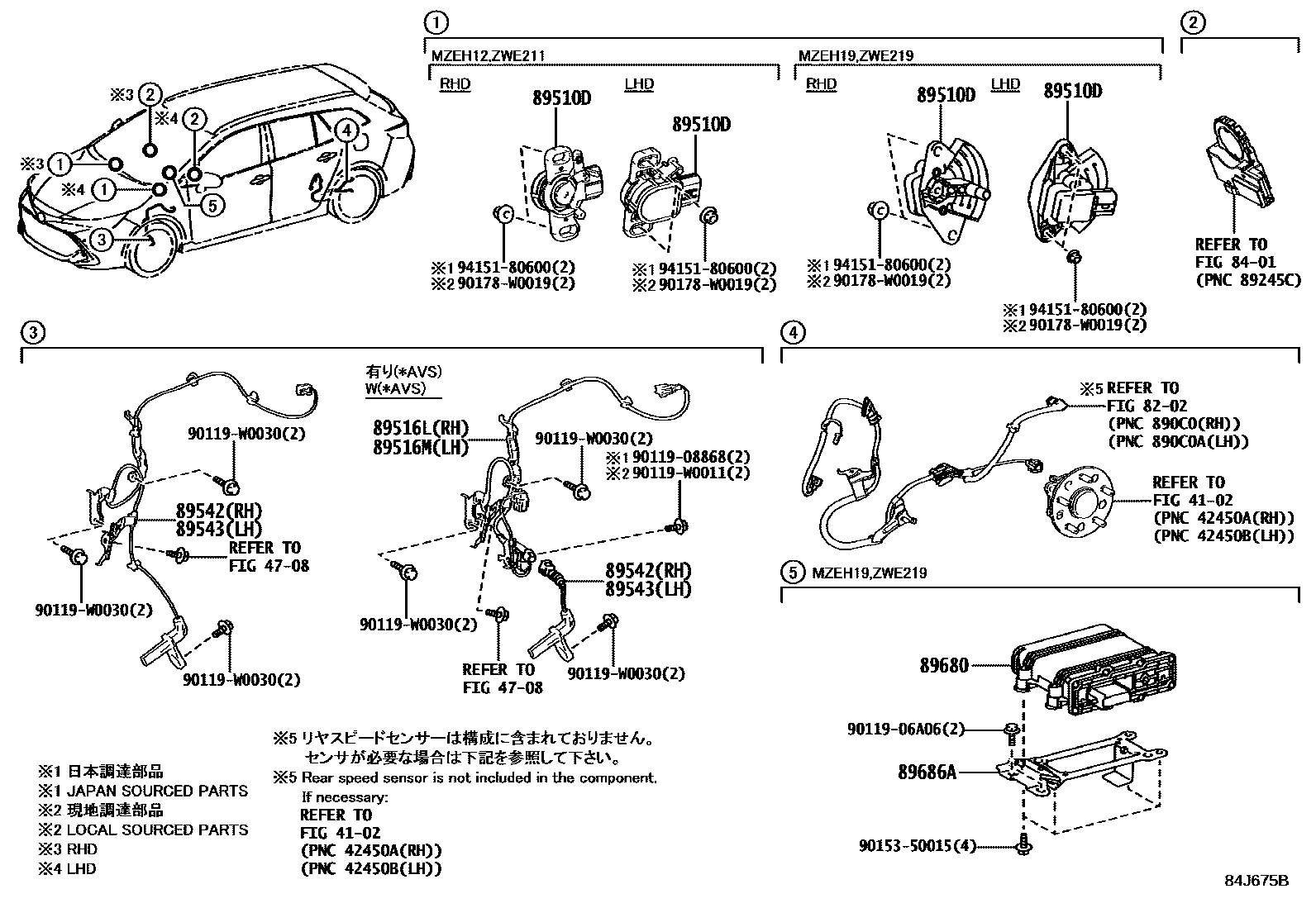

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iMZEH12,ZWE211..RHD201901

main89510-47040iMZEH12,ZWE211..LHD201901

main89510-K0010iMZEH19,ZWE219..LHD202301-202306

main89510-K0011iMZEH19,ZWE219..LHD202306

main89510-K0020iMZEH19,ZWE219..RHD202301-202306

main89510-K0021iMZEH19,ZWE219..RHD202306

89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH

main89516-12090iMZEH19..LHD..G; MZEH19..LHD..S202301

AVS(TEMS)-WITH

89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH

main89516-12200iMZEH12..G;ZWE211..HB..G201901

89542SENSOR, SPEED, FRONT RH

main89542-02170supersedes 89542-12140iMZEH12..G;ZWE211..HB..G; NRE210;ZWE211..WG..G;MZEH12,ZWE211..C,D,N,P201901

AVS(TEMS)-WITHOUT

main89542-12140iMZEH19..LHD..G; MZEH19..LHD..S202301

AVS(TEMS)-WITH

89543SENSOR, SPEED, FRONT LH

main89543-02170supersedes 89543-12140iMZEH19..LHD..G; ZWE219;MZEH19..RHD;MZEH19..LHD..(N,S)202301

AVS(TEMS)-WITHOUT

main89543-12140iMZEH19..LHD..G; MZEH19..LHD..S202301

AVS(TEMS)-WITH

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-02010iMZEH19,ZWE219202301

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-02010iMZEH19,ZWE219202301

9011906A06

main90119-06A06

9011908868

main90119-08868

90119W0011

main90119-W0011

90119W0030

main90119-W0030

9015350015

main90153-50015

90178W0019

main90178-W0019

9415180600

main94151-80600

18 parts on this diagram · 2 diagrams in section
