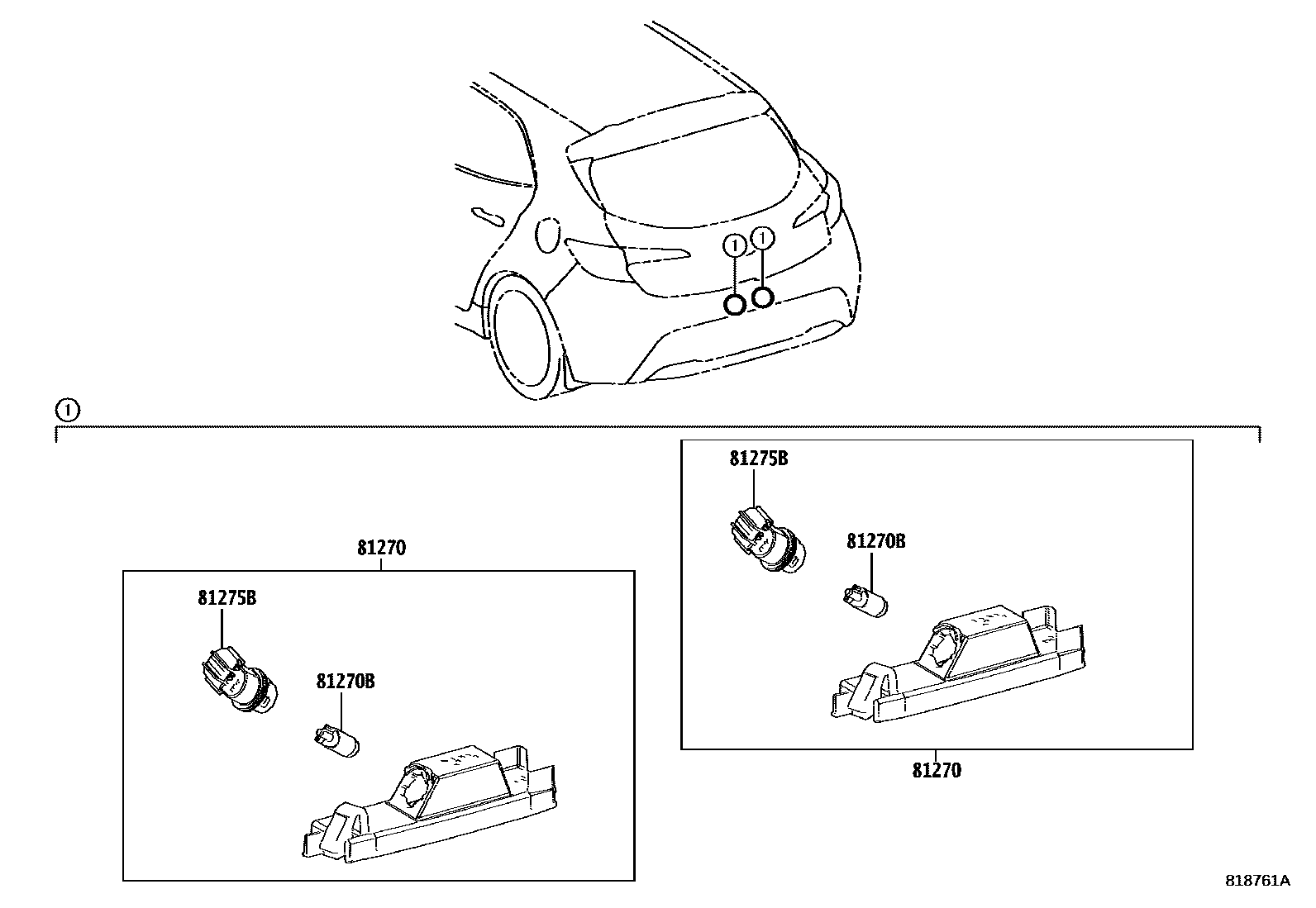

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-02230×2iMZEH12,NRE210,ZWE211..HB201901

main81270-0D120×2iMZEH19,ZWE219..WG202301

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-WB021iMZEH19,ZWE219..HB202301

12V 5W

main99132-12050×2iMZEH19,ZWE219..WG202301

12V 5W

81275BSOCKET PLUG, LICENSE PLATE LAMP

main81278-02230×2iMZEH12,NRE210,ZWE211..HB201901

3 parts on this diagram · 2 diagrams in section
