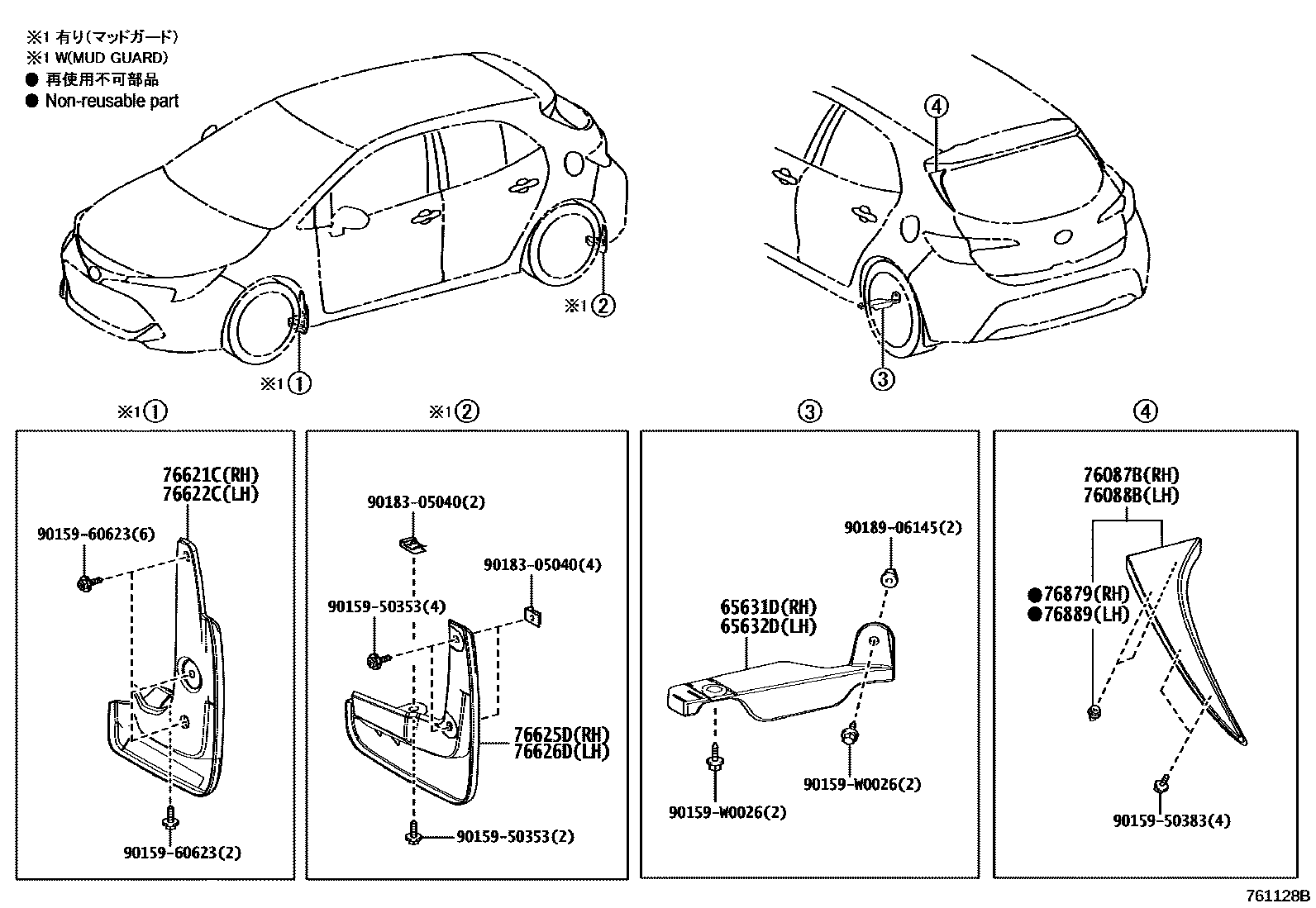

MUDGUARD & SPOILER

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02310iMZEH12,NRE210,ZWE211; MZEH12,NRE210,ZWE211..HB..G201901

LIGHT GRADE

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-02310iMZEH12,NRE210,ZWE211; MZEH12,NRE210,ZWE211..HB..G201901

LIGHT GRADE

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-02090iMZEH12,NRE210,ZWE211..HB201901-201903

main76087-02091iMZEH12,NRE210,ZWE211..HB201904

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-02090iMZEH12,NRE210,ZWE211..HB201901-201903

main76088-02091iMZEH12,NRE210,ZWE211..HB201904

76621CMUDGUAD, FRONT FENDER, RH

main76621-02240iMZEH12,NRE210,ZWE211..C,D,G,N201901

MUD GUARD-WITH(FRONT & REAR)

76622CMUDGUARD, FRONT FENDER, LH

main76622-02250iMZEH12,NRE210,ZWE211..C,D,G,N201901

MUD GUARD-WITH(FRONT & REAR)

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-02380iMZEH12,NRE210,ZWE211..HB201901

MUD GUARD-WITH(FRONT & REAR)

main76625-02430iMZEH12,NRE210,ZWE211..WG..(C,D,G,N)201902

MUD GUARD-WITH(FRONT & REAR)

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-02380iMZEH12,NRE210,ZWE211..HB201901

MUD GUARD-WITH(FRONT & REAR)

main76626-02420iMZEH12,NRE210,ZWE211..WG..(C,D,G,N)201902

MUD GUARD-WITH(FRONT & REAR)

76879CLIP, REAR SPOILER, NO.1

main90467-09233×2iMZEH12,NRE210,ZWE211..HB201901

76889CLIP, REAR SPOILER, NO.2

main90467-09233×2iMZEH12,NRE210,ZWE211..HB201901

9015950353

main90159-50353

9015950383

main90159-50383

9015960623

main90159-60623

90159W0026

main90159-W0026

9018305040

main90183-05040

9018906145

main90189-06145

16 parts on this diagram · 2 diagrams in section
