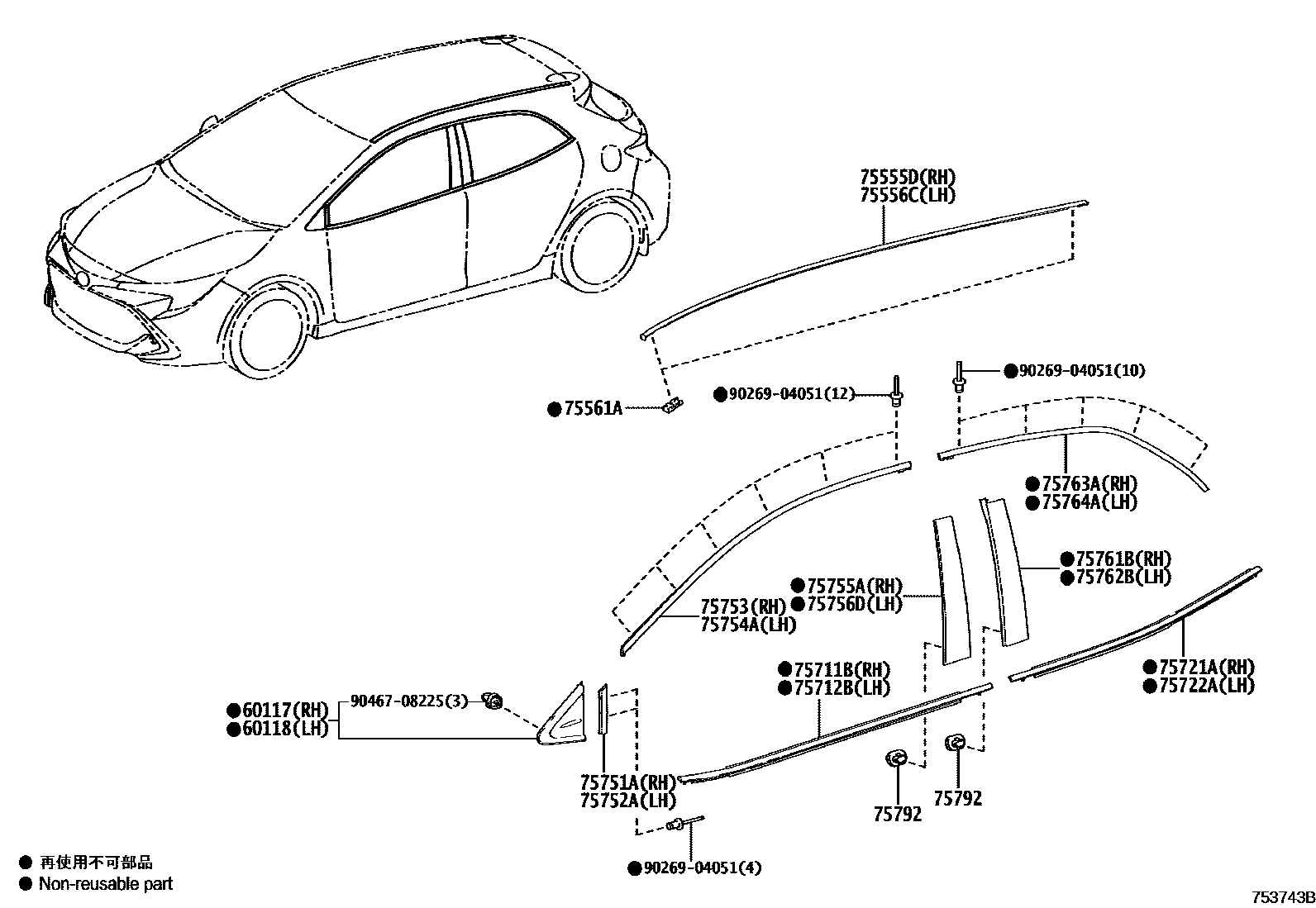

SIDE MOULDING

0001 1DOOR MOULDING 0002 1ROCKER MOULDING 0003 1ROCKER MOULDING(GRS PACKAGE) 0005 1DOOR MOULDING 0006 1ROCKER MOULDING 0007 1ROCKER MOULDING(CROSS PACKAGE0008 1ROCKER MOULDING(GRS PACKAGE) 0010 1FENDER MOULDING(CROSS PACKAGE

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02230201901

main60117-02250201901

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02230201901

main60118-02250201901

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02310201902-202310

main75555-02320201901-202309

main75555-02390202310

main75555-02420202310

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02290201901-202309

main75556-02370201902-202310

main75556-02390202310

main75556-02430202310

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-33030201901

75711BMOULDING, FRONT DOOR BELT, RH

main75710-02490201901

75712BMOULDING, FRONT DOOR BELT, LH

main75720-02490201901

75721AMOULDING, REAR DOOR BELT, RH

main75730-02470201901

main75730-02510201902

75722AMOULDING, REAR DOOR BELT, LH

main75740-02470201901

main75740-02510201902

75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)

main75751-02020201901

75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)

main75752-02020201901

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-02030201901

main75753-02040201901

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-02030201901

main75754-02040201901

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-02130201901

main75755-02190201901

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-02130201901

main75756-02190201901

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-02140201901

main75761-02200201901

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-02140201901

main75762-02200201901

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-02030201901

main75763-02040201901

main75763-02070201902

main75763-02080201902

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-02030201901

main75764-02040201901

main75764-02070201902

main75764-02080201902

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010201901

9026904051

main90269-04051

9046708225

main90467-08225

22 parts on this diagram · 8 diagrams in section
