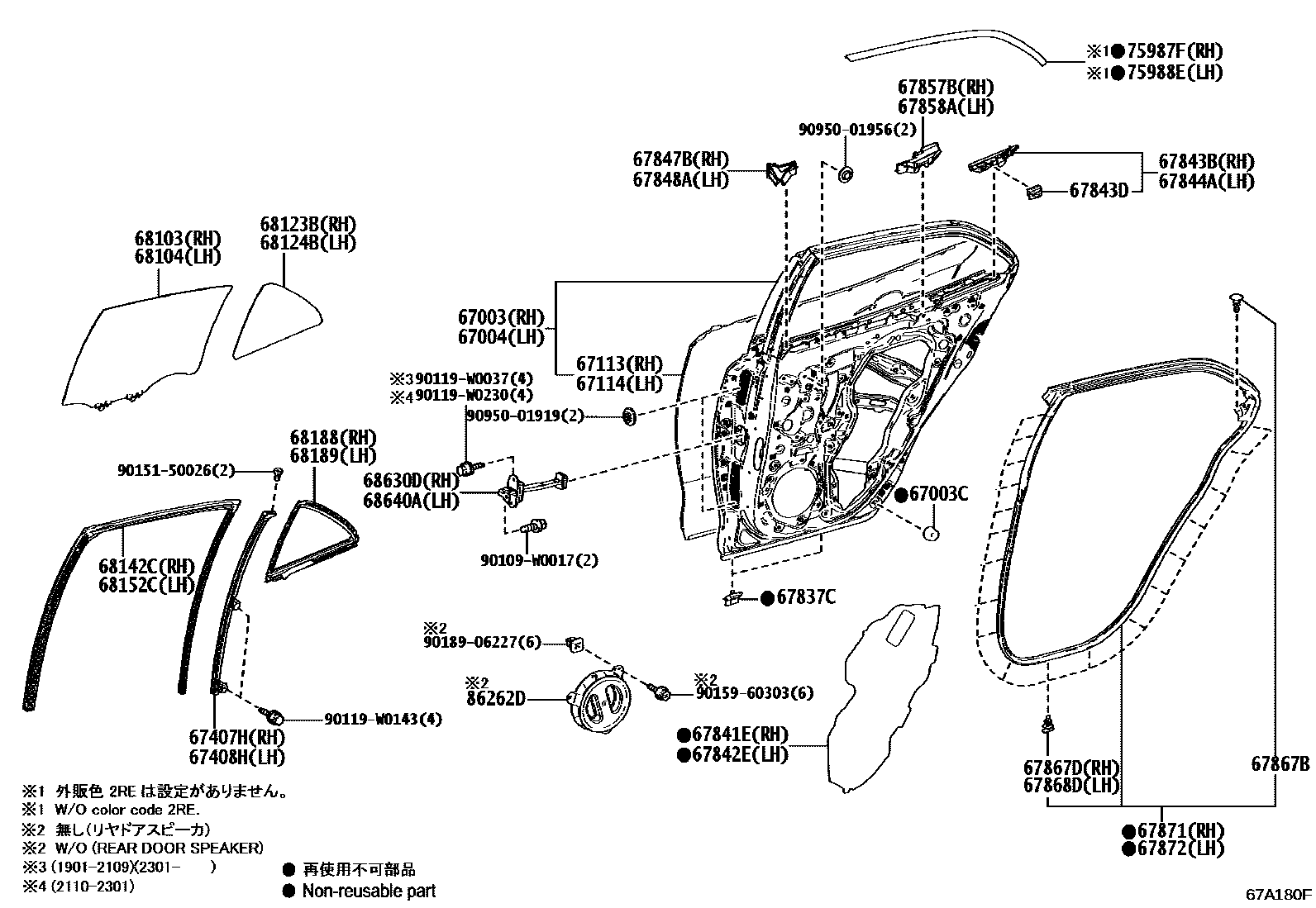

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH
67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67843DCLIP, REAR DOOR SERVICE HOLE
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858APROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
main68103-02550supersedes 68103-02560iMZEH12,NRE210,ZWE211..HB..(D,N); MZEH12,NRE210,ZWE211..HB..G201901-202009
REAR SIDE GLASS-GREEN
main68103-02551supersedes 68103-02561iMZEH12,NRE210,ZWE211..HB..(D,N); MZEH12,NRE210,ZWE211..HB..G202010
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
main68103-02570supersedes 68103-02600iMZEH12,NRE210,ZWE211..WG..(D,N); MZEH12,NRE210,ZWE211..WG..G201902-202009
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
68104GLASS SUB-ASSY, REAR DOOR, LH
main68104-02520supersedes 68104-02560iMZEH12,NRE210,ZWE211..HB..(D,N); MZEH12,NRE210,ZWE211..HB..G201901-202009
REAR SIDE GLASS-GREEN
main68104-02521supersedes 68104-02561iMZEH12,NRE210,ZWE211..HB..(D,N); MZEH12,NRE210,ZWE211..HB..G202010
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
main68104-02570supersedes 68104-02600iMZEH12,NRE210,ZWE211..WG..(D,N); MZEH12,NRE210,ZWE211..WG..G201902-202009
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
main68123-02470supersedes 68123-02480iMZEH12,NRE210,ZWE211..HB..(D,N); MZEH12,NRE210,ZWE211..HB..G201901-202009
REAR SIDE GLASS-GREEN
main68123-02471supersedes 68123-02481iMZEH12,NRE210,ZWE211..HB..(D,N); MZEH12,NRE210,ZWE211..HB..G202010
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
main68123-02490supersedes 68123-02520iMZEH12,NRE210,ZWE211..WG..(D,N); MZEH12,NRE210,ZWE211..WG..G201902-202009
REAR SIDE GLASS-GREEN
main68123-02491supersedes 68123-02521iMZEH12,NRE210,ZWE211..WG..(C,D,N,P); MZEH12,NRE210,ZWE211..WG..G202010
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
main68124-02470supersedes 68124-02480iMZEH12,NRE210,ZWE211..HB..(D,N); MZEH12,NRE210,ZWE211..HB..G201901-202009
REAR SIDE GLASS-GREEN
main68124-02471supersedes 68124-02481iMZEH12,NRE210,ZWE211..HB..(D,N); MZEH12,NRE210,ZWE211..HB..G202010
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
main68124-02490supersedes 68124-02520iMZEH12,NRE210,ZWE211..WG..(D,N); MZEH12,NRE210,ZWE211..WG..G201902-202009
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL.
BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL.
75988ESTRIPE, REAR DOOR, OUTSIDE LH
WITH(BLACK OUT TAPE),0 OR 1PIECE,REF.ILL.
WITH(BLACK OUT TAPE),0 OR 1PIECE,REF.ILL.
86262DCOVER, REAR DOOR SPEAKER
90109W0017
main90109-W0017
90119W0037
main90119-W0037
90119W0143
main90119-W0143
90119W0230
main90119-W0230
9015150026
main90151-50026
9015960303
main90159-60303
9018906227
main90189-06227
9095001919
main90950-01919
9095001956
main90950-01956
44 parts on this diagram · 4 diagrams in section
