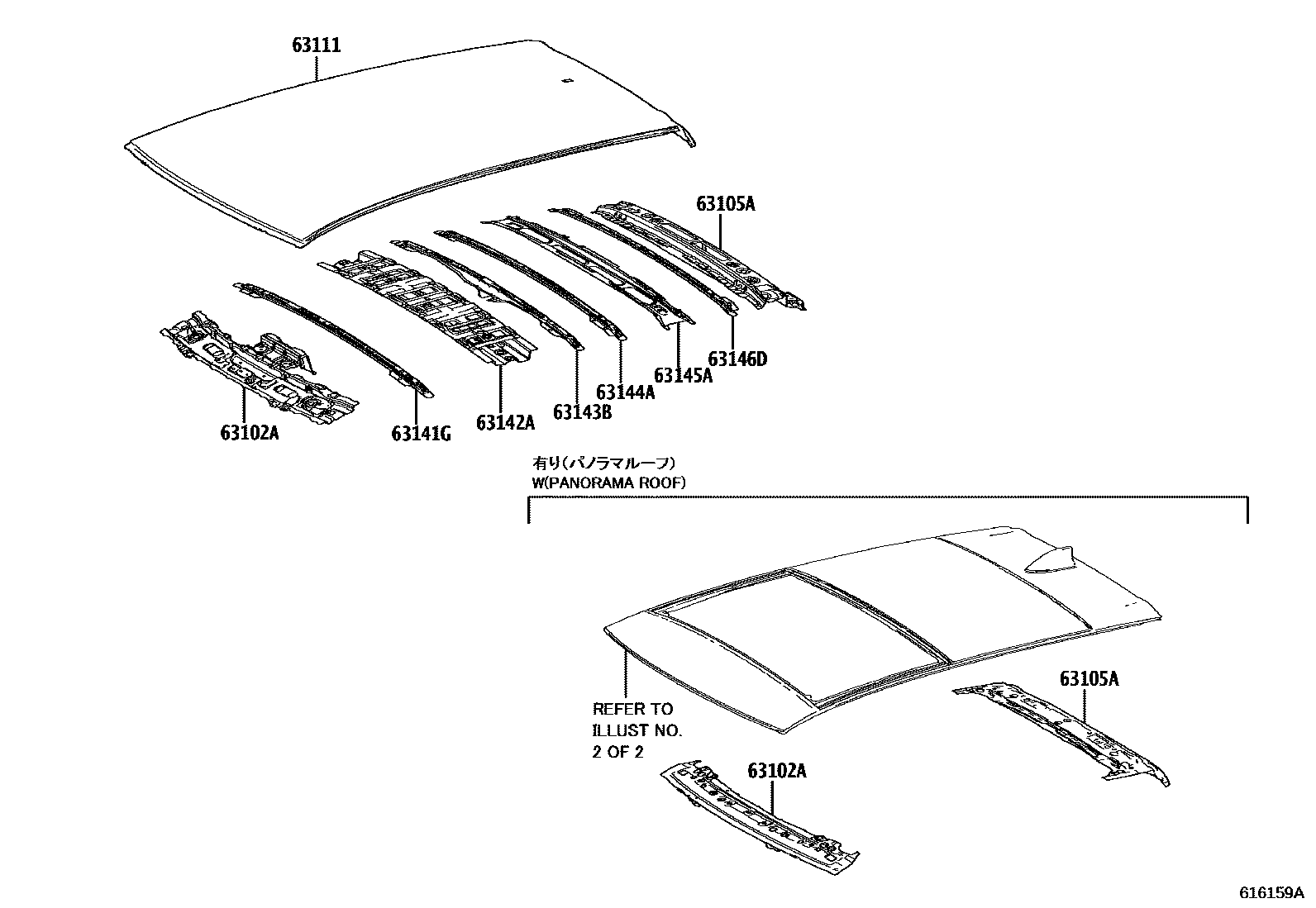

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF(PANORAMA) 0003 1SLIDING ROOF(PANORAMA) 0004 1ROOF PANEL 0005 1SLIDING ROOF(PANORAMA) 0006 1SLIDING ROOF(PANORAMA) 0007 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02904iMZEH19,ZWE219202301

main63102-02903iMZEH19,ZWE219..G,N,S202301

MOON ROOF-WITH(PANORAMA ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-02190iMZEH19,ZWE219..HB202301

main63105-02200iMZEH12,NRE210,ZWE211..WG201902

main63105-02180iMZEH12,NRE210,ZWE211..HB..(G,N)201901

MOON ROOF-WITH(PANORAMA ROOF)

63111PANEL, ROOF

main63111-02670iMZEH12,NRE210,ZWE211..HB201901

main63111-02730supersedes 63111-02720iMZEH12,NRE210,ZWE211..WG..(C,G,N,P); NRE210,ZWE211..WG..D201902

ROOF RAIL-BLACK PAINTED

main63111-02720iMZEH19,ZWE219..WG..(G,N,S); ZWE219..WG..D202301

ROOF RAIL-WITHOUT

main63111-02740iMZEH12,NRE210..WG..(G,N)201902

MOON ROOF-WITH(PANORAMA ROOF)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63142-02160iMZEH12,NRE210,ZWE211201901

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-02120iMZEH19,ZWE219..HB202301

main63141-02310iMZEH12,NRE210,ZWE211..WG201902

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-02220iMZEH12,NRE210,ZWE211..HB201901

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-02150iMZEH19,ZWE219..HB202301

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63128-02060iMZEH19,ZWE219..HB202301

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63148-02120iMZEH12,NRE210,ZWE211..HB201901

9 parts on this diagram · 7 diagrams in section
