SIDE MEMBER

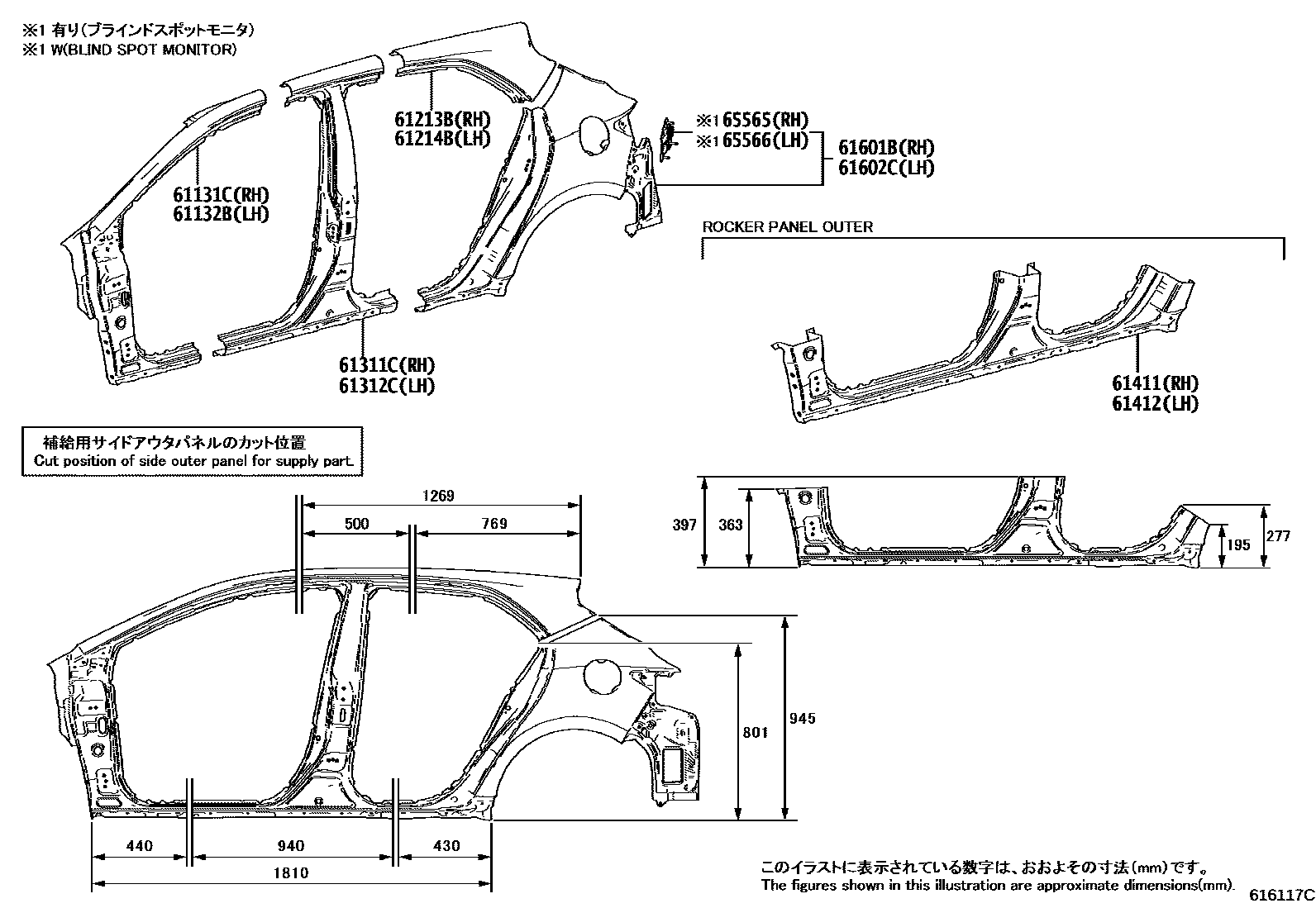

Parts diagram

61131CPILLAR, FRONT BODY, OUTER RH

main61013-02010i202301

main61101-02180i202301

61132BPILLAR, FRONT BODY, OUTER LH

main61014-02010i201902

main61102-02170i202301

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61207-02030i202301

main61213-02240i201902

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61208-02030i201901

main61214-02250i202301

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02260i202301

main61311-02320i201902

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-02310i202301

main61312-02350i201902

61411PANEL, ROCKER, OUTER RH

main61411-02330i201901

main61411-02340i202301

61412PANEL, ROCKER, OUTER LH

main61412-02330i201901

main61412-02340i201902

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02510i201901

main61601-02530i202301

main61601-02500i201901

LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA); LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

main61601-02520i201902

LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA); LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-02540i202301

main61602-02560i201902

main61602-02530i201901

LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA); LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

main61602-02550i201902

LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA); LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

65565PATCH, SIDE PANEL REAR END, RH

main65565-02070i201901

LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA); LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

65566PATCH, SIDE PANEL REAR END, LH

main65565-02070i201901

LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA); LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

12 parts on this diagram · 6 diagrams in section
