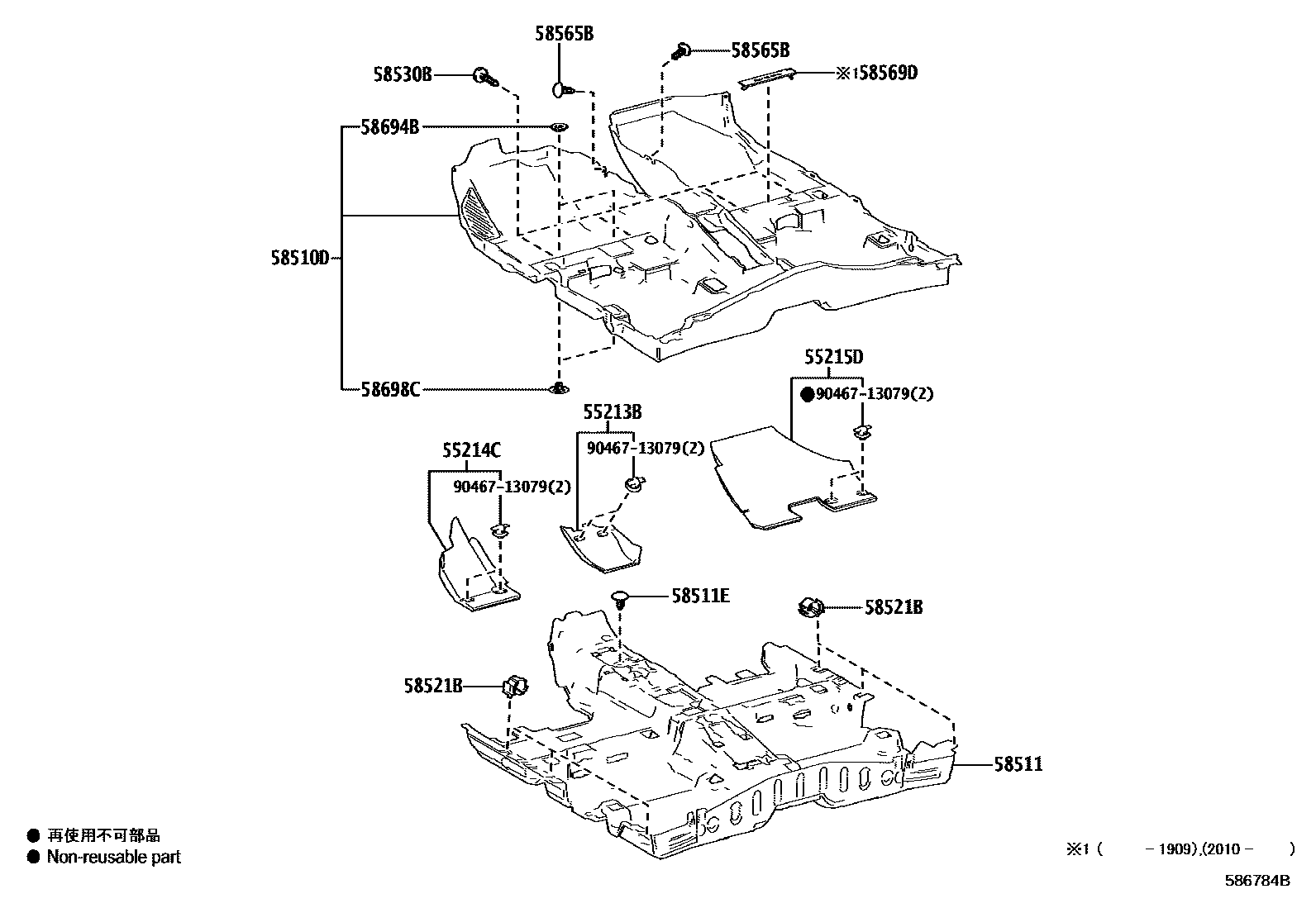

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58511MAT, FLOOR, FRONT
LIGHT GRADE
SUB COLD AREA SPEC
SUB COLD AREA SPEC
COLD AREA SPEC; LIGHT GRADE; SUB COLD AREA SPEC
LIGHT GRADE
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT
LIGHT GRADE
LIGHT GRADE
58511ECLIP(FOR FRONT FLOOR MAT)
BLACK; LIGHT GRADE,BLACK; SEAT HEATER-WITHOUT,BLACK; WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&SEAT HEATER-WITHOUT,BLACK
58521BHOOK, FLOOR CARPET
LIGHT GRADE
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM1#,2#
58565BCLIP
BLACK,TRIM1#,2#
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046713079
main90467-13079
13 parts on this diagram · 8 diagrams in section
