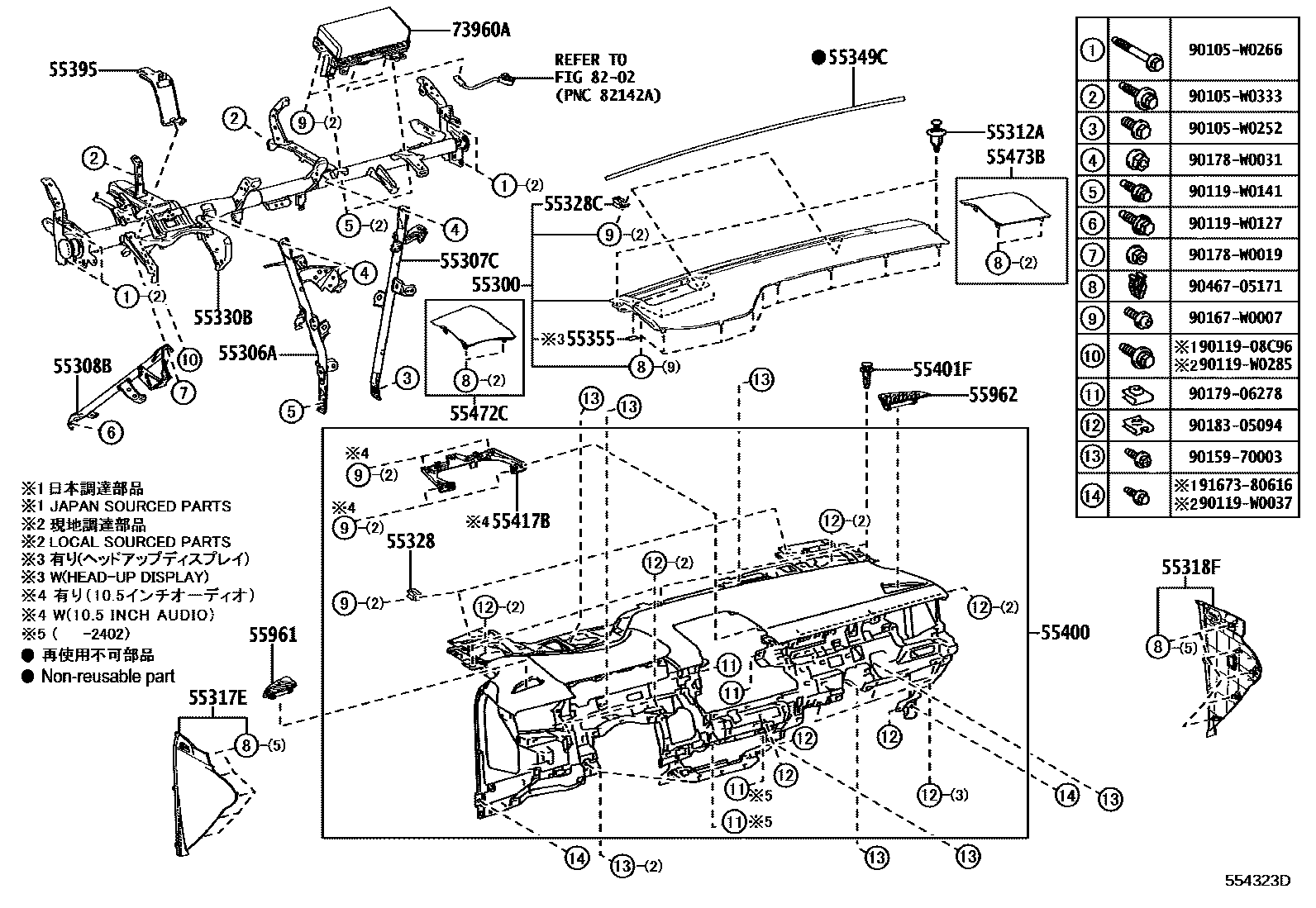

INSTRUMENT PANEL & GLOVE COMPARTMENT
55300PANEL ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#
HEAD UP DISPLAY-WITH,BLACK,TRIM2#
HEAD UP DISPLAY-WITH,BLACK,TRIM2#
HEAD UP DISPLAY-WITH,BLACK,TRIM2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55312ACLIP, INSTRUMENT PANEL
55317EPANEL, INSTRUMENT SIDE, NO.1
BLACK,TRIM2#
BLACK,TRIM1#,2#
55318FPANEL, INSTRUMENT SIDE, NO.2
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
55328PIN, INSTRUMENT PANEL, NO.1
NATURAL
55328CPIN, INSTRUMENT PANEL, NO.2
PINK
YELLOW
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
HEAD UP DISPLAY-WITH
55395BRACKET, INSTRUMENT PANEL TO PEDAL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM1#,2#
main55400-02140-C0iMZEH12,NRE210,ZWE211..LHD..N; MZEH12..LHD..N;ZWE211..LHD..HB..N; NRE210,ZWE211..LHD..D..EUR; NRE210..GEN; NRE210..LHD..CVT..N;NRE210..LHD..HB..6F..N201901-202009
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2#; AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2#; BLACK,TRIM1#,2#; LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK/DK.ROSE,TRIM20
BLACK/GRAY,TRIM1#
BLACK,TRIM1#,2#
AUDIO-8INCH & 6SPEAKER,BLACK,TRIM2#; BLACK,TRIM2#
main55400-02905-C0iMZEH12,NRE210,ZWE211..LHD..N; MZEH12..LHD..N;NRE210..LHD..D..EUR; NRE210,ZWE211..LHD..D..EUR; NRE210..GEN; NRE210..LHD..N202009
AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2#; AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2#; BLACK,TRIM1#,2#; LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
AUDIO-8INCH & 6SPEAKER,BLACK,TRIM2#; BLACK,TRIM2#
BLACK/DK.ROSE,TRIM2#
BLACK/GRAY,TRIM1#
BLACK,TRIM21
BLACK,TRIM2#
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-RADIO LESS 6SPEAKER,BLACK/DK.ROSE,TRIM20; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK/DK.ROSE,TRIM20
main55400-02150-C2supersedes 55400-02903-C2iMZEH12,NRE210,ZWE211..LHD..G; MZEH12..LHD..G;ZWE211..LHD..HB..G201901-202009
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-RADIO LESS 6SPEAKER,BLACK/GRAY,TRIM1#,20; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK/GRAY,TRIM1#,20
main55400-02150-C4supersedes 55400-02903-C3iMZEH12,ZWE211..LHD..G; MZEH12..LHD..G;ZWE211..LHD..HB..G201911-202009
AUDIO-8INCH & NAVI & DAB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM20,21; AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM20,21; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM20,21
main55400-02180-C0iMZEH12,NRE210,ZWE211..RHD..N; MZEH12..RHD..N;ZWE211..RHD..HB..N; NRE210,ZWE211..RHD..D201901-202009
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2#; AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2#; LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-RADIO LESS 6SPEAKER,BLACK/DK.ROSE,TRIM20; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK/DK.ROSE,TRIM20
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-RADIO LESS 6SPEAKER,BLACK/GRAY,TRIM1#,20; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK/GRAY,TRIM1#,20
main55400-02190-C6supersedes 55400-02170-C6iMZEH12,ZWE211..RHD..G; MZEH12..RHD..G;ZWE211..RHD..HB..G201911-202009
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM20,21; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM20,21
SEAT COVER MATERIAL-GRS&AUDIO-8INCH & NAVI & DAB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACK/DK.ROSE,TRIM20
SEAT COVER MATERIAL-GRS&AUDIO-8INCH & NAVI & DAB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACK/GRAY,TRIM1#,20
SEAT COVER MATERIAL-GRS&AUDIO-8INCH & NAVI & DAB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM20,21
AUDIO-4SPEAKER & WITH(CVR 100200),BLACK,TRIM2#
main55400-02907-C1iMZEH12,ZWE211..LHD..G; MZEH12..LHD..G; MZEH12..LHD..G;ZWE211..LHD..HB..G202009-202201
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-RADIO LESS 6SPEAKER,BLACK/DK.ROSE,TRIM20; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK/DK.ROSE,TRIM20
main55400-02907-C2iMZEH12,ZWE211..LHD..G; MZEH12..LHD..G; MZEH12..LHD..G;ZWE211..LHD..HB..G202009-202201
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK/GRAY,TRIM1#,20; AUDIO-RADIO LESS 6SPEAKER,BLACK/GRAY,TRIM1#,20; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK/GRAY,TRIM1#,20
main55400-02907-C3iMZEH12,ZWE211..LHD..G; MZEH12..LHD..G; MZEH12..LHD..G;ZWE211..LHD..HB..G202011-202201
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM20,21; AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM20,21; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM20,21
main55400-02913-C3iMZEH12,NRE210,ZWE211..RHD..N; MZEH12,NRE210..RHD..N; NRE210,ZWE211..RHD..D; NRE210..RHD..D202009
AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2#; AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2#; LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#
AUDIO-4SPEAKER & WITH(CVR 100200),BLACK,TRIM2#
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK/DK.ROSE,TRIM20; AUDIO-RADIO LESS 6SPEAKER,BLACK/DK.ROSE,TRIM20; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK/DK.ROSE,TRIM20
AUDIO-8INCH & DAB & JBL & 8SPEAKER 21MM,BLACK/GRAY,TRIM1#; AUDIO-8INCH & DAB & JBL & 8SPEAKER 21MM,BLACK/GRAY,TRIM1#,20; AUDIO-8INCH DAB JBL 8SPEAKER 21MM,BLACK/GRAY,TRIM1#; AUDIO-8INCH DAB JBL 8SPEAKER 21MM,BLACK/GRAY,TRIM1#,20; AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITH(FOR E-CALL),BLACK/GRAY,TRIM1#; AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITH(FOR E-CALL),BLACK/GRAY,TRIM1#,20; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER)&DATA COMMUNICATION MODULE-WITH(FOR E-CALL),BLACK/GRAY,TRIM1#,20
AUDIO-8INCH & DAB & JBL & 8SPEAKER 21MM,BLACK,TRIM21; AUDIO-8INCH DAB JBL 8SPEAKER 21MM,BLACK,TRIM21; AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITH(FOR E-CALL),BLACK,TRIM21; LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER)&DATA COMMUNICATION MODULE-WITH(FOR E-CALL),BLACK,TRIM21
55401FCLIP(FOR SAFETY PAD)
55417BRETAINER, RADIO TUNER FINISH
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM1#,2#
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM1#,2#
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM1#,2#; DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
AUDIO-8INCH & DAB & JBL & 8SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM1#,2#; AUDIO-8INCH & JBL & 8SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & JBL & 8SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM1#,2#
AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#; AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM1#,2#
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM1#,2#
BLACK,TRIM2#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM1#,2#
BLACK,TRIM2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202WIRING & CLAMP
90105W0252
main90105-W0252
90105W0266
main90105-W0266
90105W0333
main90105-W0333
9011908C96
main90119-08C96
90119W0037
main90119-W0037
90119W0127
main90119-W0127
90119W0141
main90119-W0141
90119W0285
main90119-W0285
9015970003
main90159-70003
90167W0007
main90167-W0007
90178W0019
main90178-W0019
90178W0031
main90178-W0031
9017906278
main90179-06278
9018305094
main90183-05094
9046705171
main90467-05171
9167380616
main91673-80616
38 parts on this diagram · 8 diagrams in section
