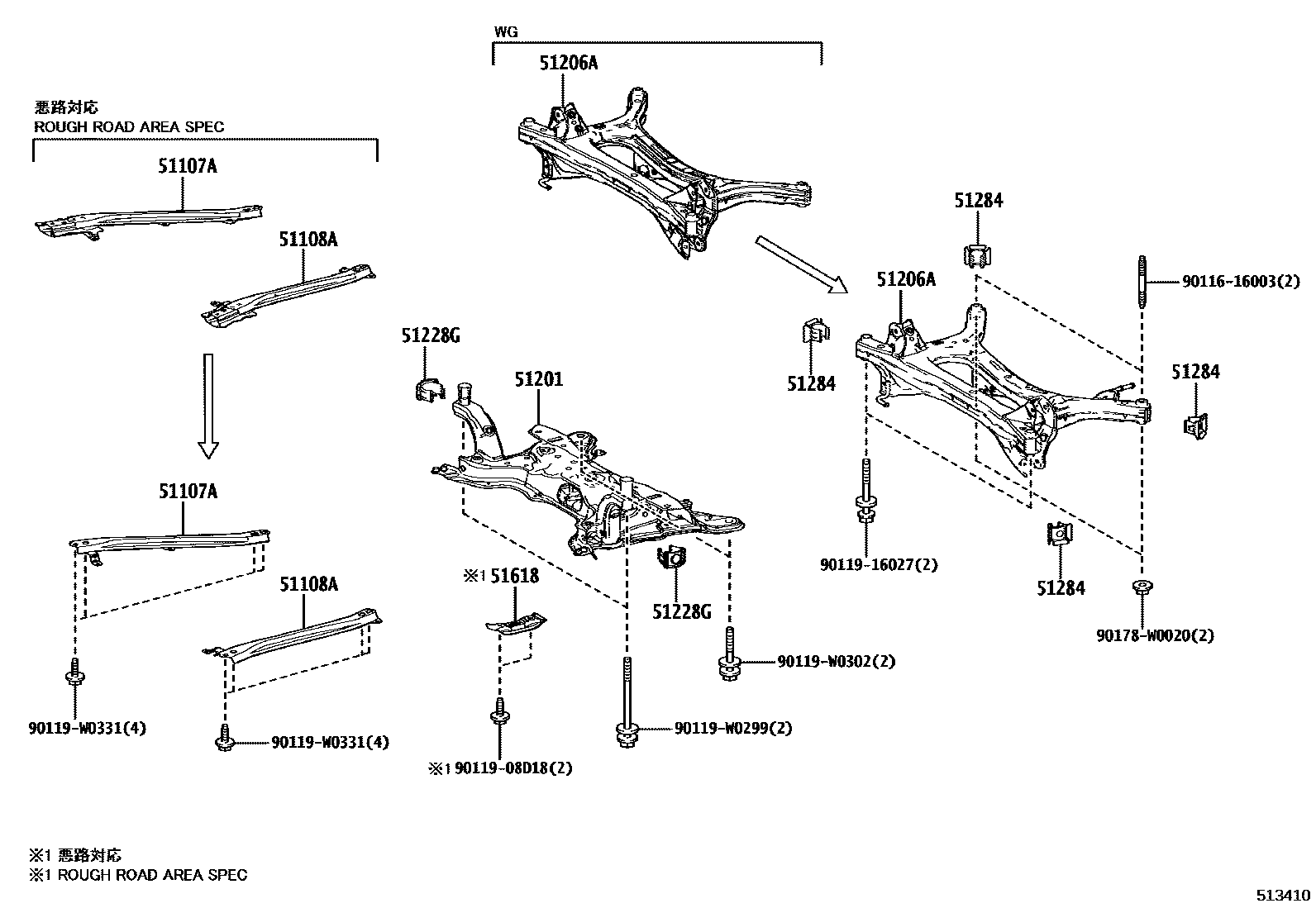

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER 0004 1UNDER COVER 0007 1UNDER COVER 0009 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-02110iMZEH12,NRE210,ZWE211201901

main51107-02120iMZEH19,ZWE219..C,D,G,N,S202301

ROUGH ROAD AREA SPEC

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-02110iMZEH19,ZWE219202301

main51108-02120iMZEH12,NRE210,ZWE211..(C,D,G,N)..EUR201901

ROUGH ROAD AREA SPEC

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02240iNRE210,ZWE211201901-201902

main51201-02241iMZEH19,ZWE219202301

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-02080iMZEH12,NRE210,ZWE211..HB201901-202212

main51206-02081iMZEH12,NRE210,ZWE211..HB; MZEH19,ZWE219..HB202301

main51206-02090iMZEH12,NRE210,ZWE211..WG201902-202212

main51206-02091iMZEH12,NRE210,ZWE211..WG; MZEH19,ZWE219..WG202301

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4010×2iMZEH19,ZWE219202301

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-F4010×4iMZEH12,NRE210,ZWE211201901-202301

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-47010iMZEH12,NRE210,ZWE211..(C,D,G,N)..EUR201901

ROUGH ROAD AREA SPEC

9011616003

main90116-16003

9011908D18

main90119-08D18

9011916027

main90119-16027

90119W0299

main90119-W0299

90119W0302

main90119-W0302

90119W0331

main90119-W0331

90178W0020

main90178-W0020

14 parts on this diagram · 5 diagrams in section
