FRONT SPRING & SHOCK ABSORBER

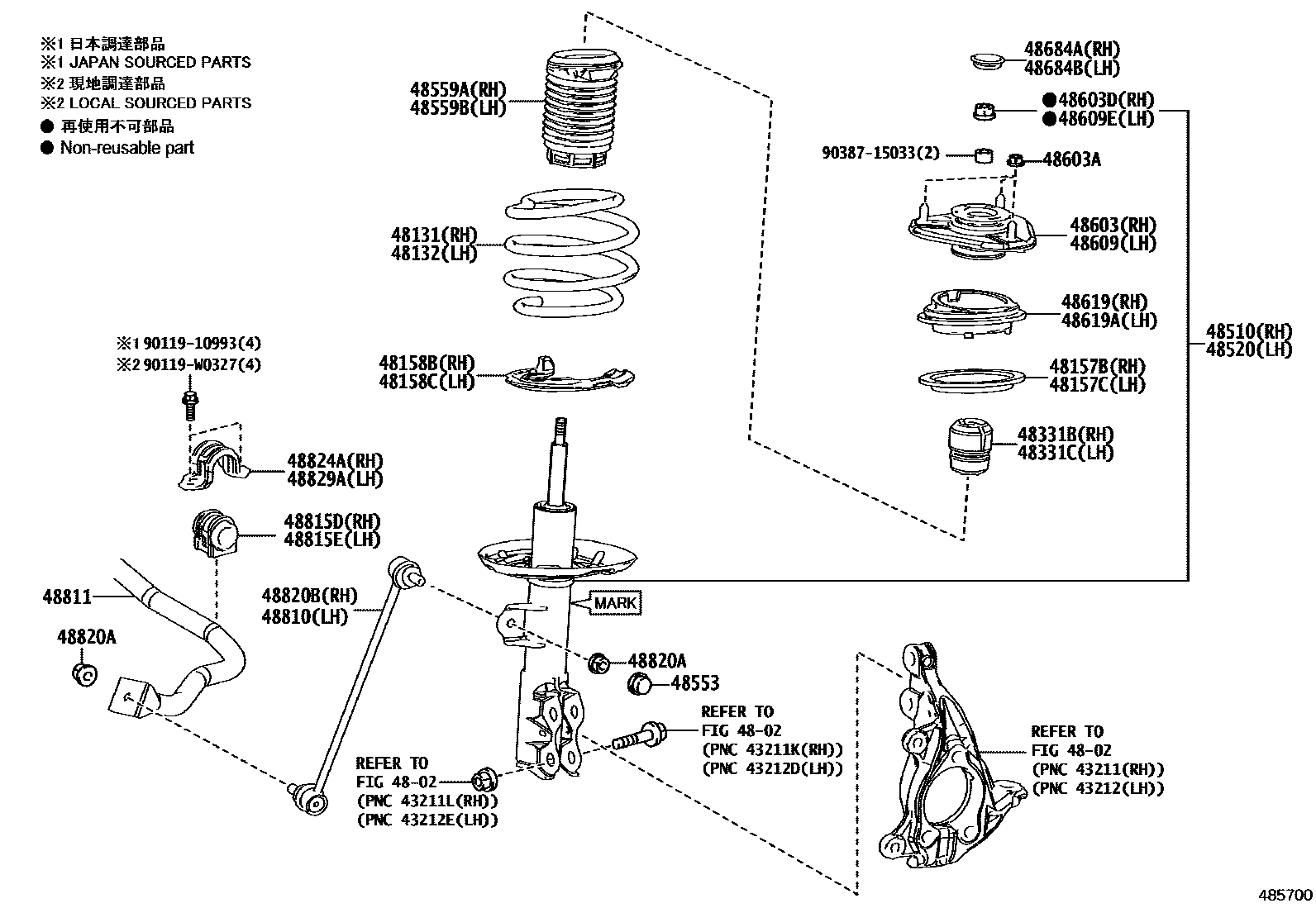

Parts diagram
4802FRONT AXLE ARM & STEERING KNUCKLE
→ Go to FIG 48-02
48131SPRING, FRONT COIL, RH
main48131-0Z130i201901
TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48131-0Z150i201901
TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48131-0Z191i201902
main48131-0ZC90i202301
TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPEC; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD STEEL; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; TIRE&DISC WHEEL-205/55R16 SUMMER TIRE STEEL WHEEL
main48131-0ZD00i202301
main48131-0ZD10i202301
AVS(TEMS)-WITH; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48131-0ZD20i202301
AVS(TEMS)-WITHOUT
main48131-0Z140i201901
TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z160i201901
AVS(TEMS)-WITHOUT; TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z201i201902
AVS(TEMS)-WITHOUT; TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z210i201901
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z220i201901
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGHROAD SPORT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z230i201902
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGHROAD SPORT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0ZD30i202301
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD STEEL; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-205/55R16 SUMMER TIRE STEEL WHEEL
main48131-0ZD40i202301
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGHROAD SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
48132SPRING, FRONT COIL, LH
main48131-0Z130i201901
TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48131-0Z150i201901
TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48131-0Z191i201902
main48131-0ZC90i202301
TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPEC; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD STEEL; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; TIRE&DISC WHEEL-205/55R16 SUMMER TIRE STEEL WHEEL
main48131-0ZD00i202301
main48131-0ZD10i202301
AVS(TEMS)-WITH; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48131-0ZD20i202301
AVS(TEMS)-WITHOUT
main48131-0Z140i201901
TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z160i201901
AVS(TEMS)-WITHOUT; TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z201i201911
TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main48131-0Z210i201901
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z220i201901
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGHROAD SPORT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0Z230i201902
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGHROAD SPORT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48131-0ZD30i202301
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD STEEL; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-205/55R16 SUMMER TIRE STEEL WHEEL
main48131-0ZD40i202301
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGHROAD SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-F4010i201901
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-F4010i201901
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-F4010i202301
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-F4010i201901
48331BBUMPER, FRONT SPRING, RH
main48331-02170i201901
main48331-02180i201901
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGHROAD SPORT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
48331CBUMPER, FRONT SPRING, LH
main48331-02170i202301
main48331-02180i201901
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGHROAD SPORT; ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-80A52i201901
MARK 48510-12L30
main48510-8Z363i201901
MARK 48510-02M00; MARK 48510-02M00,TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; MARK 48510-02M00,TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48510-02M00,TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48510-02M00,TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48510-8Z365i202301
MARK 48510-02M20; MARK 48510-02M20,TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPEC; MARK 48510-02M20,TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD STEEL; MARK 48510-02M20,TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; MARK 48510-02M20,TIRE&DISC WHEEL-205/55R16 SUMMER TIRE STEEL WHEEL
main48510-8Z366i202301
MARK 48510-02M30
main48510-8Z367i201902
MARK 48510-02M60
main48510-8Z369i202301
MARK 48510-02M80; MARK 48510-02M80,AVS(TEMS)-WITHOUT
main48510-8Z364i201901
MARK 48510-02M10; MARK 48510-02M10,TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; MARK 48510-02M10,TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48510-8Z368i201902
MARK 48510-02M70; MARK 48510-02M70,AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROADSPORT; MARK 48510-02M70,AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48510-8Z370supersedes 48510-8Z364i201901-202009
MARK 48510-02M90,ROUGH ROAD AREA SPEC; MARK 48510-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROADSPEC; MARK 48510-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48510-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48510-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; MARK 48510-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48510-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48510-8Z371supersedes 48510-8Z365i201901-202009
MARK 48510-02N00,ROUGH ROAD AREA SPEC; MARK 48510-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; MARK 48510-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; MARK 48510-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48510-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48510-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; MARK 48510-02N00,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48510-02N00,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48510-8Z372i201902
MARK 48510-02N10,ROUGH ROAD AREA SPEC
main48510-8Z373supersedes 48510-8Z368i201902
MARK 48510-02N40,ROUGH ROAD AREA SPEC; MARK 48510-02N40,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; MARK 48510-02N40,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48510-02N40,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; MARK 48510-02N40,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48510-02N40,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48510-8Z507supersedes 48510-8Z364i202009
MARK 48510-02M91,ROUGH ROAD AREA SPEC; MARK 48510-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROADSPEC; MARK 48510-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48510-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48510-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; MARK 48510-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48510-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48510-8Z508i202009
MARK 48510-02N01,ROUGH ROAD AREA SPEC; MARK 48510-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; MARK 48510-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; MARK 48510-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48510-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48510-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; MARK 48510-02N01,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48510-02N01,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; MARK 48510-02N01,ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; MARK 48510-02N01,ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-80612i201901
MARK 48520-12L30
main48520-8Z217i202301
MARK 48520-02M20; MARK 48520-02M20,TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPEC; MARK 48520-02M20,TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD STEEL; MARK 48520-02M20,TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; MARK 48520-02M20,TIRE&DISC WHEEL-205/55R16 SUMMER TIRE STEEL WHEEL
main48520-8Z218i202301
MARK 48520-02M30
main48520-8Z219i201902
MARK 48520-02M60
main48520-8Z221i202301
MARK 48520-02M80; MARK 48520-02M80,AVS(TEMS)-WITHOUT
main48520-8Z244i201901
MARK 48520-02M00; MARK 48520-02M00,TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; MARK 48520-02M00,TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48520-02M00,TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48520-02M00,TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48520-8Z220i202301
MARK 48520-02M70; MARK 48520-02M70,AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROADSPEC; MARK 48520-02M70,AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; MARK 48520-02M70,TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main48520-8Z222i201901-202009
MARK 48520-02M90,ROUGH ROAD AREA SPEC; MARK 48520-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROADSPEC; MARK 48520-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48520-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48520-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; MARK 48520-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48520-02M90,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48520-8Z223i201901-202009
MARK 48520-02N00,ROUGH ROAD AREA SPEC; MARK 48520-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; MARK 48520-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; MARK 48520-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48520-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48520-02N00,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; MARK 48520-02N00,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48520-02N00,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48520-8Z224i202301
MARK 48520-02N10,ROUGH ROAD AREA SPEC
main48520-8Z225i201911
MARK 48520-02N40,ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; MARK 48520-02N40,ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main48520-8Z245i201901
MARK 48520-02M10; MARK 48520-02M10,TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; MARK 48520-02M10,TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48520-8Z348supersedes 48520-8Z245i202009
MARK 48520-02M91,ROUGH ROAD AREA SPEC; MARK 48520-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROADSPEC; MARK 48520-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48520-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48520-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUMSPORT; MARK 48520-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48520-02M91,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main48520-8Z349i202009
MARK 48520-02N01,ROUGH ROAD AREA SPEC; MARK 48520-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT; MARK 48520-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; MARK 48520-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; MARK 48520-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; MARK 48520-02N01,ROUGH ROAD AREA SPEC&AVS(TEMS)-WITHOUT&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT; MARK 48520-02N01,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMERTIRE; MARK 48520-02N01,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; MARK 48520-02N01,ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; MARK 48520-02N01,ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
48553CAP, SHOCK ABSORBER, UPPER
main48553-52030×2i201901
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
main48559-F4010i201901-201906
main48559-F4011i201907
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
main48559-F4010i201901-201906
main48559-F4011i201907
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-F4010i201901
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-10029×6i201901
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90177-14005i201901
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-F4010i201901
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90177-14005i201901
48619BEARING, STRUT MOUNTING, RH
main48619-F4010i201901
48619ABEARING, STRUT MOUNTING, LH
main48619-F4010i201901
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-52010i201901
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-52010i201901
48810LINK ASSY, FRONT STABILIZER, LH
main48820-47040i201901
48811BAR, STABILIZER, FRONT
main48811-02350i201902-202106
main48811-02351i202107
main48811-02360i201901
main48811-02530i201902
48815DBUSH, FRONT STABILIZER BAR, RH
main48815-02380i201902
main48815-02520i201901-202112
main48815-02580i202201
48815EBUSH, FRONT STABILIZER BAR, LH
main48815-02380i201902
main48815-02520i201901-202112
main48815-02580i202201
48820ANUT(FOR FRONT STABILIZER LINK)
main90178-W0051×4i201901
(L)
main94151-21241×4i201901
(J)
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-47040i202301
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-F4010i201901
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-F4010i201901
9011910993
main90119-10993
90119W0327
main90119-W0327
9038715033
main90387-15033

34 parts on this diagram · 1 diagram in section
