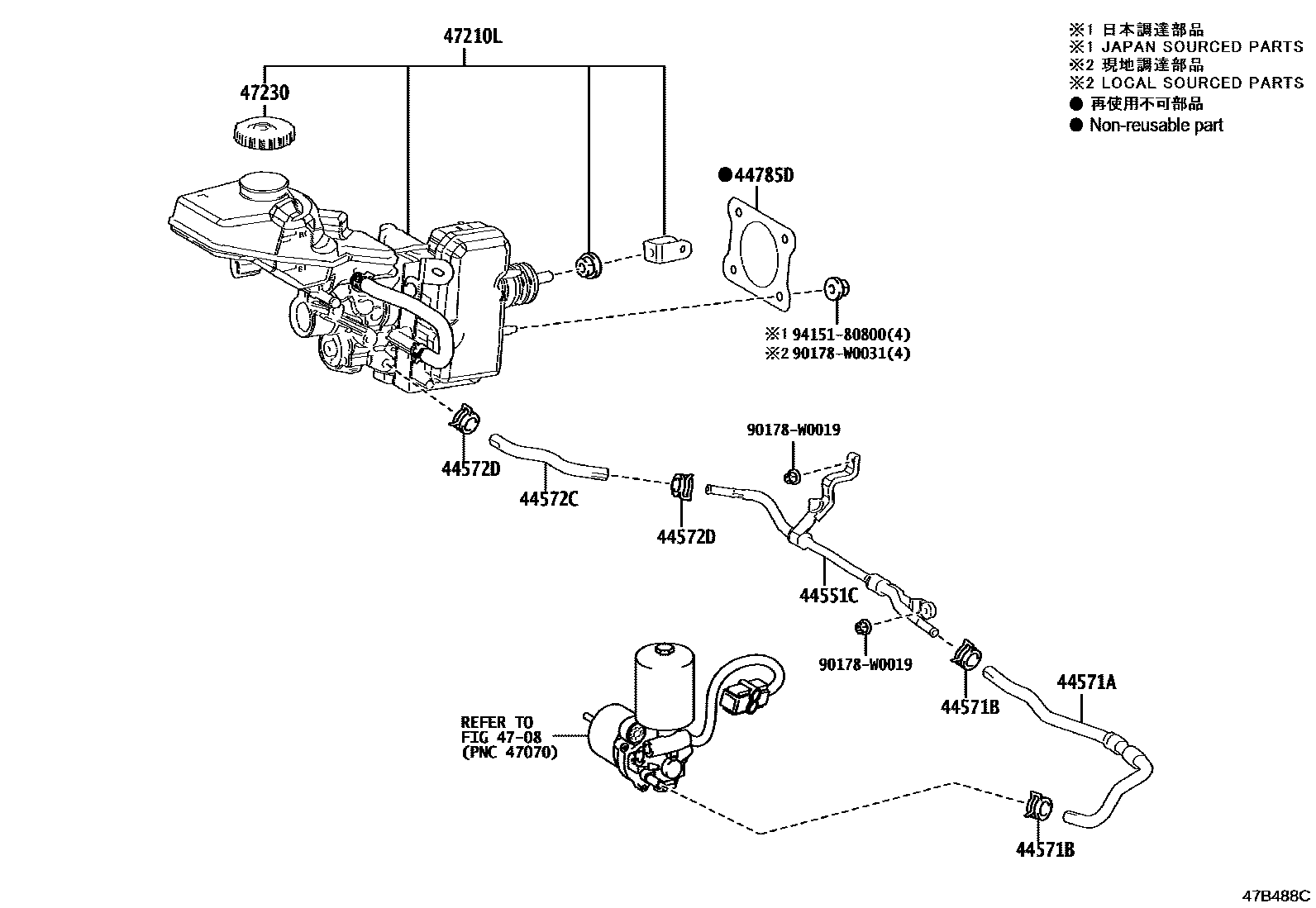

BRAKE MASTER CYLINDER
44551CTUBE, BRAKE ACTUATOR, NO.1
44571AHOSE, BRAKE ACTUATOR, NO.1
44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
44572CHOSE, BRAKE ACTUATOR, NO.2
44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
44785DGASKET, BRAKE MASTER CYLINDER
(L)
(J)
4708BRAKE TUBE & CLAMP
47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER
main47050-12A80supersedes 47050-12A91iMZEH12..RHD..WG..G; ZWE211..RHD..WG;MZEH12..RHD..WG..N201902-202203
TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main47050-12400iMZEH12,ZWE211..LHD..HB..(D,N); MZEH12,ZWE211..LHD..HB..G; ZWE211..LHD..HB..G201901-202203
TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main47050-12401supersedes 47050-12411iMZEH12,ZWE211..LHD..HB..(D,N); MZEH12,ZWE211..LHD..HB..G; ZWE211..LHD..HB..G202204
TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; TIRE&DISC WHEEL-225/45R17 ALUMINUM; TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main47050-12420supersedes 47050-12411iMZEH12,ZWE211..LHD..HB..(D,N); MZEH12,ZWE211..LHD..HB..G; ZWE211..LHD..HB..G201901-202203
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main47050-12421supersedes 47050-12411iMZEH12,ZWE211..LHD..HB..(D,N); MZEH12,ZWE211..LHD..HB..G; ZWE211..LHD..HB..G202204
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main47050-12480supersedes 47050-12491iMZEH12,ZWE211..RHD..HB..(D,N); MZEH12,ZWE211..RHD..HB..G; ZWE211..RHD..HB..G201901-202203
TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
TIRE&DISC WHEEL-225/45R17 ALUMINUM
TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; TIRE&DISC WHEEL-225/45R17 ALUMINUM; TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main47050-12500iMZEH12,ZWE211..RHD..HB..(D,N); MZEH12,ZWE211..RHD..HB..G; ZWE211..RHD..HB..G201901-202203
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main47050-12501supersedes 47050-12481iMZEH12,ZWE211..RHD..HB..(D,N); MZEH12,ZWE211..RHD..HB..G; ZWE211..RHD..HB..G202204
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main47050-12A00supersedes 47050-12A11iMZEH12..LHD..WG..G; ZWE211..LHD..WG;MZEH12..LHD..WG..N201902-202203
TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main47050-12A10iMZEH12..LHD..WG..G; MZEH12..LHD..WG..N; MZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)201902-202203
TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC
main47050-12A11iMZEH12,ZWE211..LHD..WG..N; MZEH12..LHD..WG..G; MZEH12..LHD..WG..N; MZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)202204
TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; TIRE&DISC WHEEL-225/45R17 ALUMINUM; TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main47050-12A20supersedes 47050-12A00iMZEH12..LHD..WG..G; ZWE211..LHD..WG;MZEH12..LHD..WG..N201902-202203
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main47050-12A30iMZEH12,ZWE211..LHD..WG..N; MZEH12..LHD..WG..G; MZEH12..LHD..WG..N; MZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)201902-202203
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM(MACHINING)
main47050-12A31iMZEH12,ZWE211..LHD..WG..N; MZEH12..LHD..WG..G; MZEH12..LHD..WG..N; MZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)202204
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM(MACHINING); ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM TREK LTD; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main47050-12A91iMZEH12,ZWE211..RHD..WG..N; MZEH12..RHD..WG..G; MZEH12..RHD..WG..N; MZEH12..RHD..WG..N;ZWE211..RHD..WG..(G,N)202204
TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; TIRE&DISC WHEEL-225/45R17 ALUMINUM; TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
main47050-12B00supersedes 47050-12A91iMZEH12..RHD..WG..G; MZEH12..RHD..WG..N;ZWE211..RHD..WG..(D,G,N)201902-202203
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main47050-12B01supersedes 47050-12A91iMZEH12..RHD..WG..G; MZEH12..RHD..WG..N;ZWE211..RHD..WG..(C,D,G,N)202204
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT
main47050-12B10supersedes 47050-12A91iMZEH12,ZWE211..RHD..WG..N; MZEH12..RHD..WG..G; MZEH12..RHD..WG..N; MZEH12..RHD..WG..N;ZWE211..RHD..WG..(G,N)201902-202203
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM(MACHINING)
main47050-12B11iMZEH12,ZWE211..RHD..WG..N; MZEH12..RHD..WG..G; MZEH12..RHD..WG..N; MZEH12..RHD..WG..N;ZWE211..RHD..WG..(G,N)202204
ROUGH ROAD AREA SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC; ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-225/45R17 ALUMINUM(MACHINING); ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/40R18 ALUMINUM TREK LTD; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM; ROUGH ROAD AREA SPEC&TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
90178W0019
main90178-W0019
90178W0031
main90178-W0031
9415180800
main94151-80800
12 parts on this diagram · 6 diagrams in section
