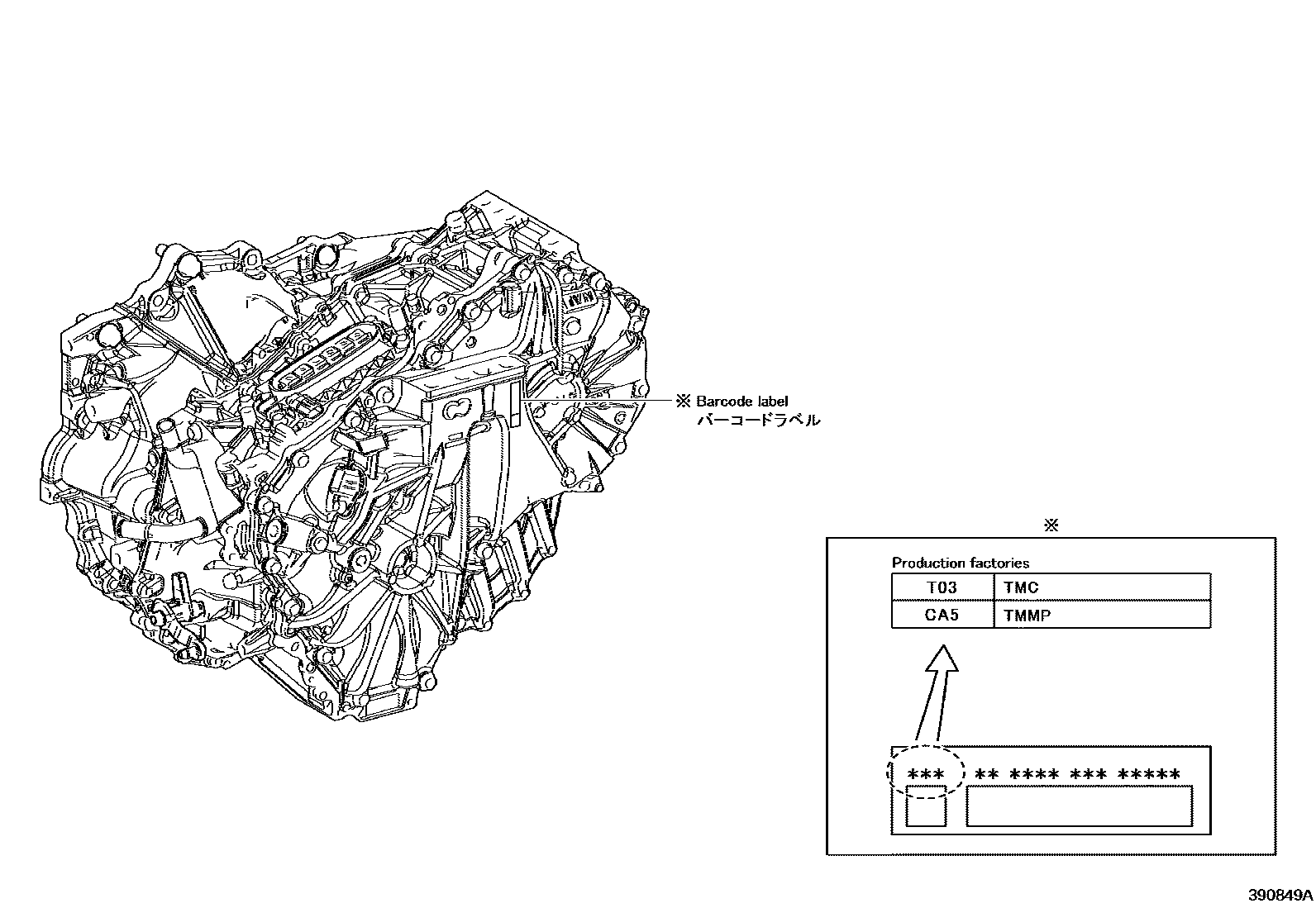

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-02050iZWE211201901-202211

(L)

main30900-02060iZWE219202301

TMMP:REF.ILLUST

main30900-12010iMZEH12201902

main30900-12020iZWE211202207

(J)

main30900-12040iZWE219202301

AISIN:REF.ILLUST

main30900-12060iMZEH19202301-202408

AISIN:REFER TO ILL.

main30900-12090iMZEH19202408

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main90119-W0155×7iZWE211201901

*10-1.25PX45-30

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMZEH12,ZWE211201901

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMZEH19,ZWE219202301

30900LUNION(FOR TRANSAXLE HOUSING)

main90404-16031iMZEH12,ZWE211201901

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMZEH12,ZWE211201901

30900PPLUG, DRAIN(HEV)

main90341-18016iMZEH12,ZWE211201901

30900QPLUG, FILLER(HEV)

main90341-18016iMZEH12,ZWE211201901

main90341-18090iMZEH19,ZWE219202301

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMZEH12,ZWE211201901

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMZEH12,ZWE211201901

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-02020iZWE219202301-202302

main31270-02030iMZEH19202304

(L)

main31270-12010iMZEH12201902

main31270-28020iZWE219202302

(J)

main31270-47070iZWE211201901

main31270-63010iMZEH19202301

(J)

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016iZWE211201901

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040iZWE211201901

main35572-28140iZWE219202301

main35572-33070iMZEH12201902

main35572-63020iMZEH19202301

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZWE211201901

main90311-25035iZWE219202301

main90311-27011iMZEH12201902

main90311-27012iMZEH19202301

4302

82821TCOVER, CONNECTOR

main82821-47240iMZEH12,ZWE211201901

82823MCAP, TERMINAL

main82823-28110iMZEH19,ZWE219202301

main82823-47040iMZEH12,ZWE211201901

8401

8431

8432

G1148CABLE, MOTOR

mainG114828040iZWE219202301-202409

mainG114828041iZWE219202410

mainG114833050iMZEH12201902

mainG114847070iZWE211201901

mainG114863010iMZEH19202301-202410

mainG114863011iMZEH19202411

G125AACOOLER, MOTOR COOLING

mainG125A02020iZWE219202301

(L)

mainG125A28010iZWE219202301

(J)

mainG125A63010iMZEH19202301

9010510591

main90105-10591

90105W0092

main90105-W0092

90105W0159

main90105-W0159

90105W0267

main90105-W0267

90105W0306

main90105-W0306

9011906A57

main90119-06A57

90119W0019

main90119-W0019

90119W0037

main90119-W0037

90119W0174

main90119-W0174

9030106196

main90301-06196

9030110189

main90301-10189

9030115004

main90301-15004

9034108001

main90341-08001

9034113004

main90341-13004

9034118020

main90341-18020

9155110818

main91551-10818

9155180825

main91551-80825

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

91641H0820

main91641-H0820

9167180612

main91671-80612

9167380616

main91673-80616

9167380620

main91673-80620

9413000802

main94130-00802

9451200800

main94512-00800

48 parts on this diagram · 6 diagrams in section
