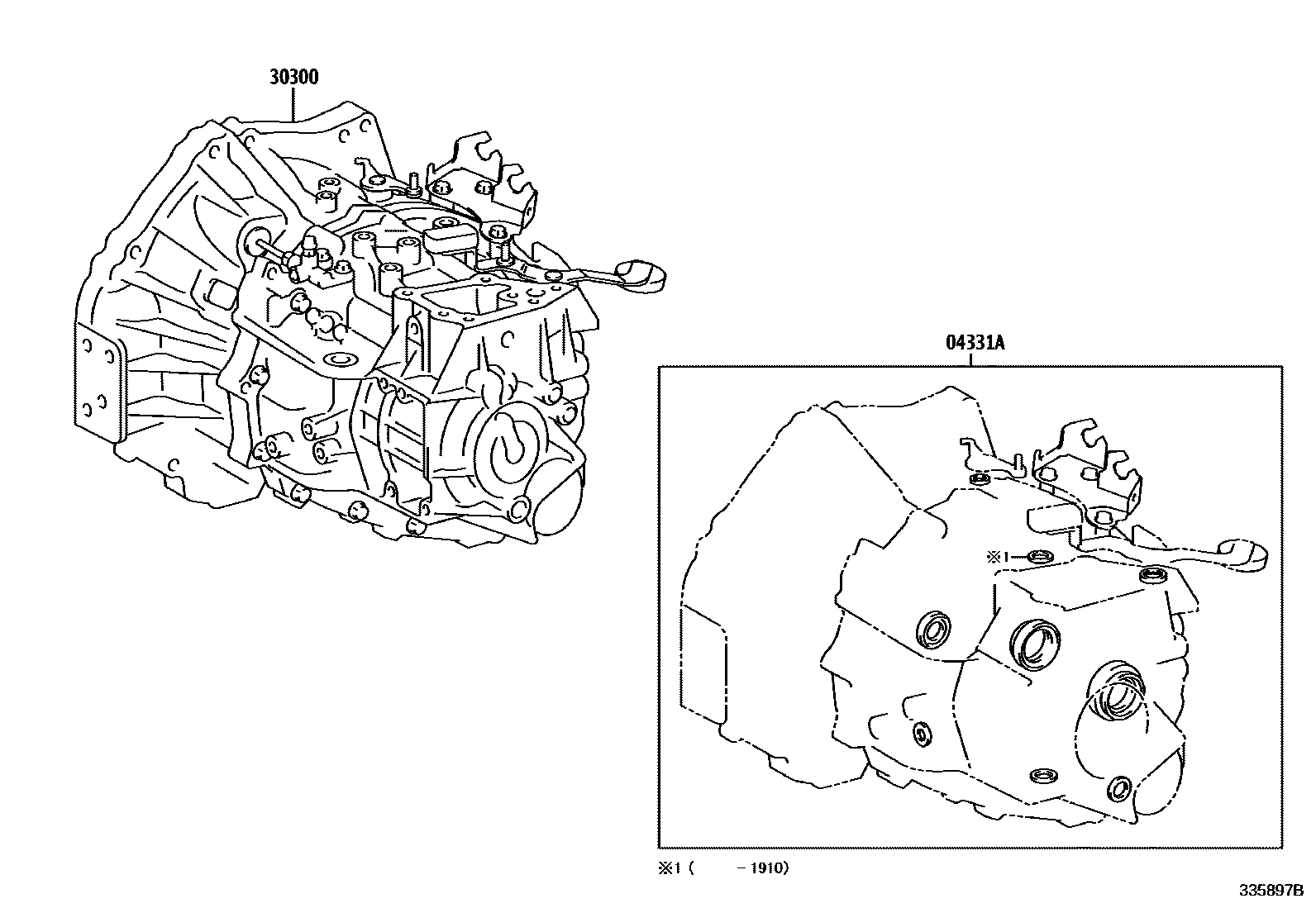

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-0F011iNRE210..6F201901-201910

main04331-0F020iNRE210..6F201910

30300TRANSAXLE ASSY, MANUAL

main30300-02460iNRE210..6F201901-201910

EC6A,REFER TO PNC 33403K

main30300-02461iNRE210..6F201910

EC6A,REFER TO PNC 33403K

main30300-02470iNRE210..6F..D..EUR201901-201910

EC6A,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM),REFER TO PNC 33403K

main30300-02471iNRE210..6F..D..EUR201910

EC6A,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM),REFER TO PNC 33403K

2 parts on this diagram · 1 diagram in section
