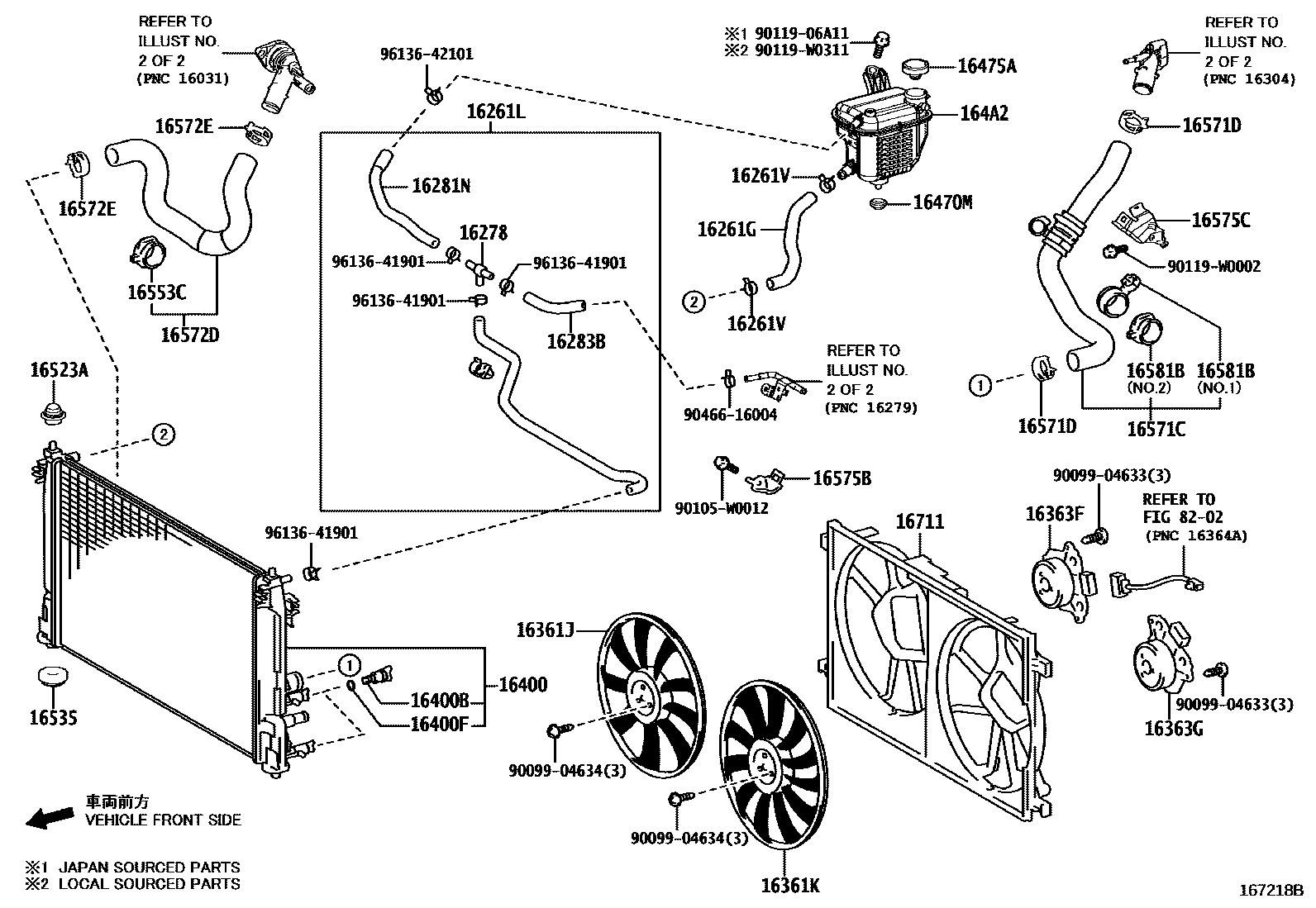

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
(L)
(J)
16261GHOSE, WATER BY-PASS, NO.1
16261LHOSE, WATER BY-PASS
16261VCLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16278PIPE, WATER BY-PASS, NO.2
(L)
TYPE A:REFER ILLUST.
(J)
TYPE B:REFER ILLUST.
16281HOSE, WATER BY-PASS, NO.4
*132
*613
16281NHOSE, WATER BY-PASS, NO.4
(L)
TYPE A:REFER ILLUST.
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(L)
(L)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(L)
NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(L)
(J)
TYPE B:REFER ILLUST.
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(J)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(J)
NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(J)
16283HOSE, WATER BY-PASS, NO.6
NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(L)
(L)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(L)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(L)
*132
NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(J)
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(J)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS),(J)
*613
16283BHOSE, WATER BY-PASS
16361JFAN, RH
16361KFAN, LH
16363FMOTOR, COOLING FAN, RH
16363GMOTOR, COOLING FAN, LH
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16475ACAP, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16575BBRACKET, WATER HOSE CLAMP, NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
16581CLAMP, HOSE(FOR WATER HOSE)
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16711SHROUD, FAN
8202
9009904633
main90099-04633
9009904634
main90099-04634
90105W0012
main90105-W0012
9011906A11
main90119-06A11
90119W0002
main90119-W0002
90119W0311
main90119-W0311
9046616004
main90466-16004
9613641901
main96136-41901
9613642101
main96136-42101
42 parts on this diagram · 14 diagrams in section
