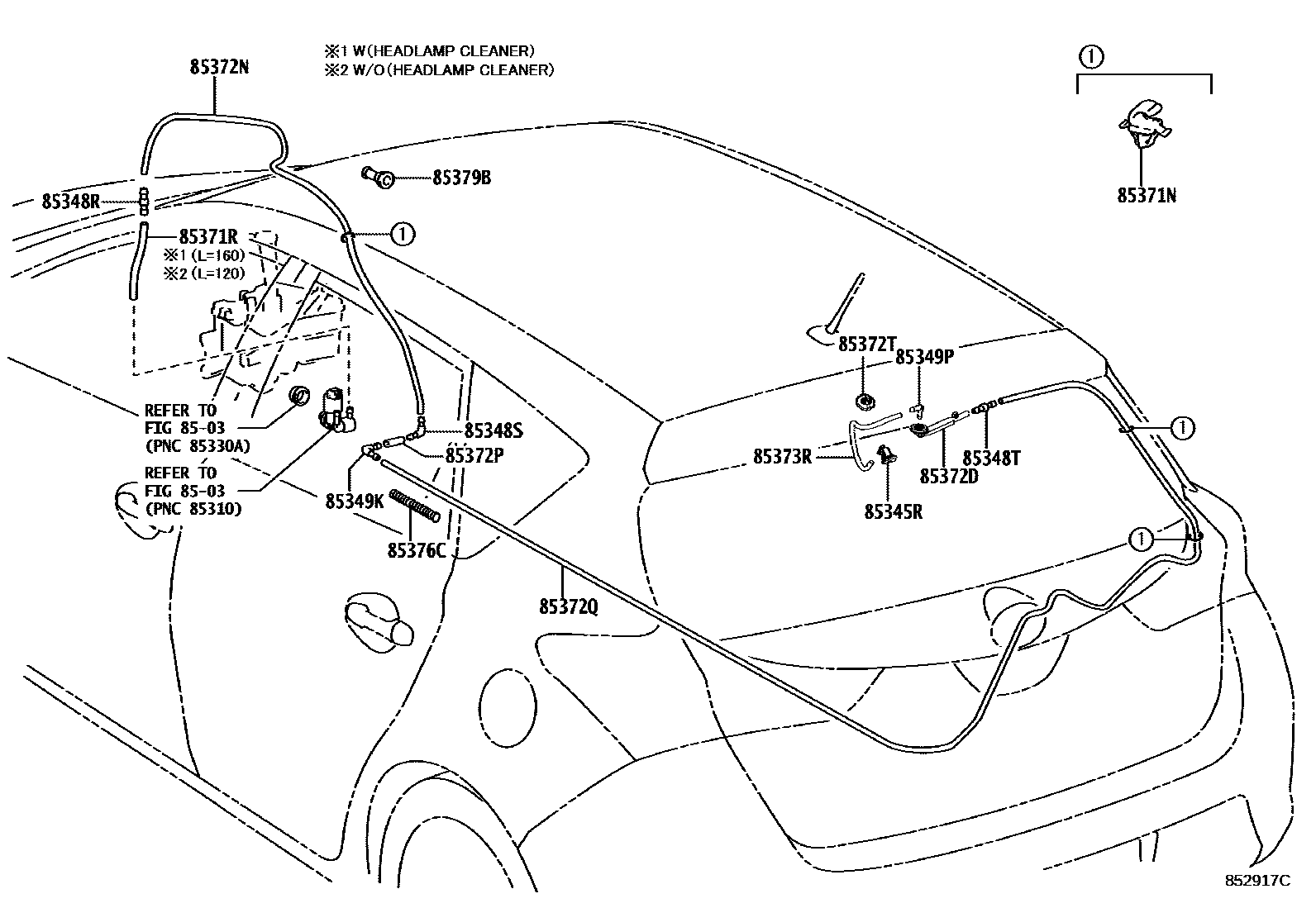

REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
*318:REFER ILLUST.
L=1450(*H,L=120)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1430
L=1800(*H,L=1460)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=35
L=1800(*H,L=35)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=4985(*H,L=3450)
L=3374
L=3374
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=270)
L=1000(*H,L=270),HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
L=1000(*H,L=270),HEADLAMP-LED & WITH(*AHB)
L=1000(*H,L=270),HEADLAMP-LED
85376CSPRING, WASHER HOSE
85379BGROMMET, WASHER, A
17 parts on this diagram · 1 diagram in section
