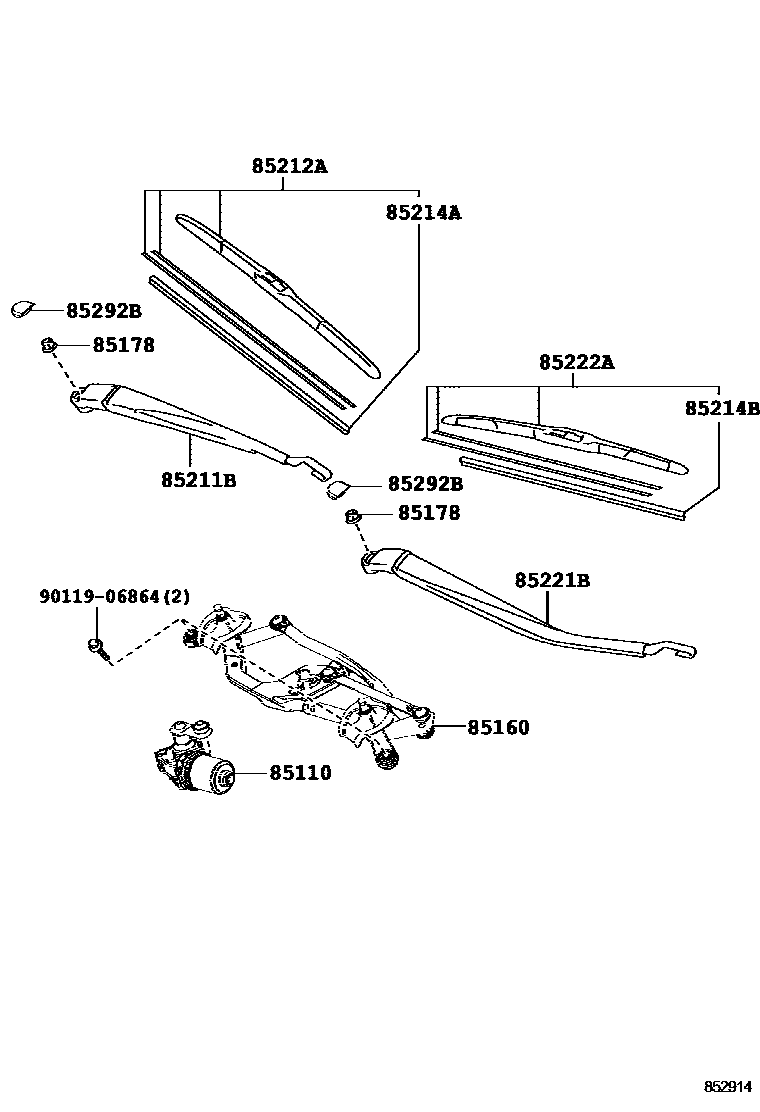

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12B60iNRE180,ZRE18#201208-201408

main85110-12B61iNRE180,ZRE18#201409-201503

85160LINK ASSY, WINDSHIELD WIPER

main85150-12B40iNRE180,ZRE18#201208-201503

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iNRE180,ZRE18#201208-201503

85211BARM, FRONT WIPER, RH

main85211-12620iNRE180,ZRE18#201208-201503

85212ABLADE, FR WIPER, RH

main85212-12520iNRE180,ZRE18#201208-201503

85214ARUBBER, WIPER, RH

main85214-52110iNRE180,ZRE18#201308-201503

main85214-68020iNRE180,ZRE18#201208-201307

85214BRUBBER, WIPER, LH

main85214-68030iNRE180,ZRE18#201208-201503

85221BARM, FRONT WIPER, LH

main85221-12540iNRE180,ZRE18#201208-201503

85222ABLADE, FR WIPER, LH

main85222-52220iNRE180,ZRE18#201208-201503

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iNRE180,ZRE18#201208-201503

9011906864

main90119-06864

11 parts on this diagram · 1 diagram in section
