REAR SEAT & SEAT TRACK

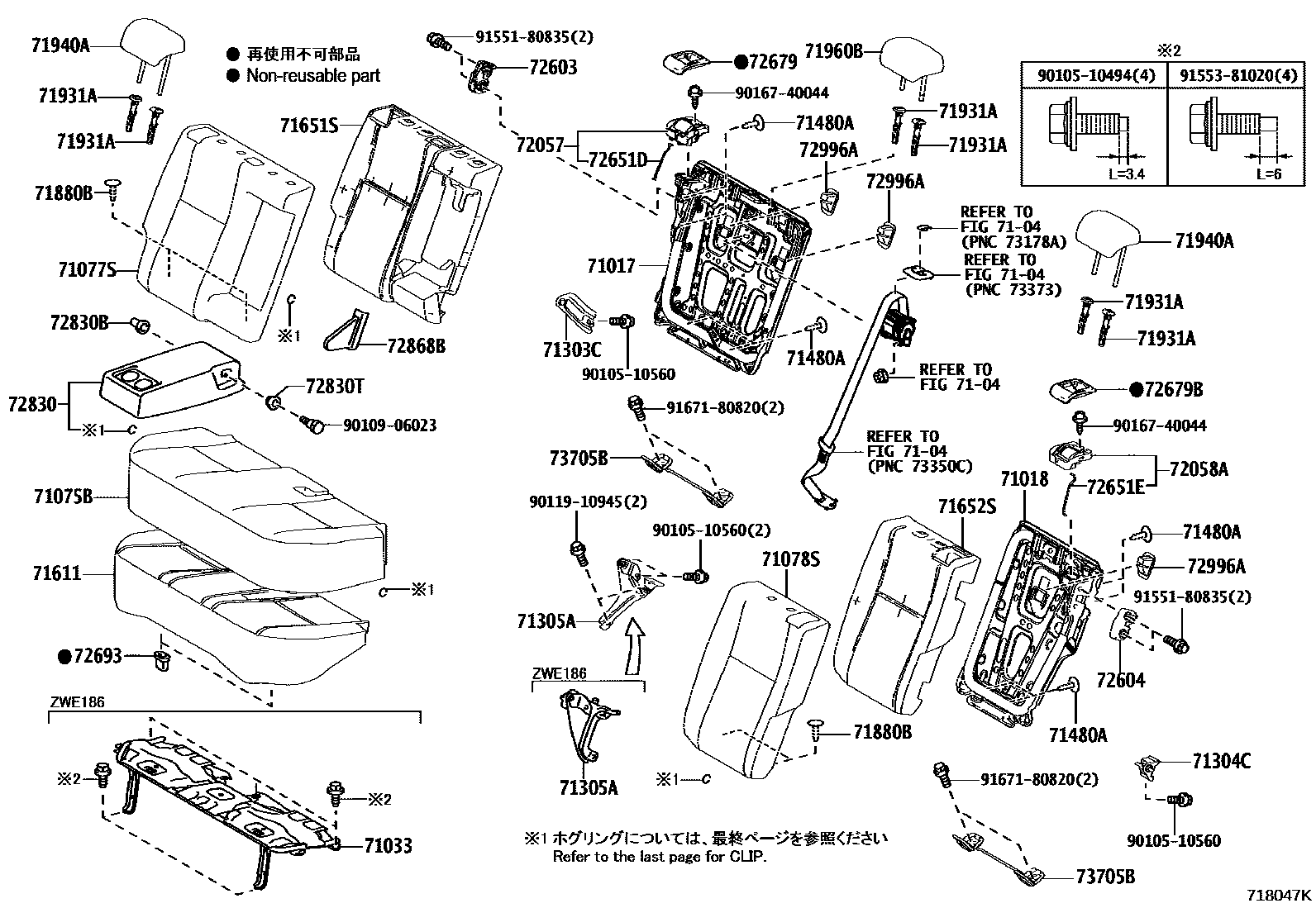

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-12A20i201503
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-12460i201208-201503
71033LEG SUB-ASSY, REAR SEAT CUSHION
main71033-02011i201604
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-12F80-C1i201503-201805
BLACK,TRIM2#
main71075-12F80-C4i201405-201503
BLACK,TRIM2#
main71075-12G00-20i201503-201805
BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71075-12G00-C3i201208-201405
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71075-12G00-C8i201405-201503
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71075-12G10-C3i201208-201405
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main71075-12G10-C6i201405-201503
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main71075-12G10-C9i201503-201805
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(ORANGE STITCH),BLACK,TRIM2#
main71075-12P30-C0i201604-201805
BLACK,TRIM2#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-12L50-C3i201208-201307
BLACK,TRIM2#
main71077-12L51-C3i201307-201405
BLACK,TRIM2#
main71077-12L51-C5i201405-201503
BLACK,TRIM2#
main71077-12L51-C9i201503-201805
BLACK,TRIM2#
main71077-12P90-C3i201208-201307
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71077-12P91-C3i201307-201405
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71077-12P91-C6i201405-201503
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71077-12P91-C8i201503-201805
BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71077-12Q00-C2i201208-201307
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main71077-12Q01-C2i201307-201405
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main71077-12Q01-C5i201405-201503
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main71077-12Q01-C7i201503-201805
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(ORANGE STITCH),BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-12J40-C3i201208-201307
BLACK,TRIM2#
main71078-12J41-20i201503-201805
BLACK,TRIM2#
main71078-12J41-C3i201307-201405
BLACK,TRIM2#
main71078-12J41-C8i201405-201503
BLACK,TRIM2#
main71078-12J60-C3i201208-201307
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71078-12J61-C3i201307-201405
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71078-12J61-C6i201405-201503
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71078-12J61-C8i201503-201805
BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71078-12J70-C2i201208-201307
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main71078-12J71-C2i201307-201405
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main71078-12J71-C5i201405-201503
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main71078-12J71-C7i201503-201805
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(ORANGE STITCH),BLACK,TRIM2#
main71078-12P80-C0i201604-201805
BLACK,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-12210i201208-201503
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-12080i201208-201503
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-12230i201604
main71305-12240i201208-201503
71480ACLIP (FOR REAR SEATBACK)
main90467-05164-C0×8i201208-201503
BLACK,TRIM2#
main90467-05164-C7×8i201610-201805
BLACK
71611PAD, REAR SEAT CUSHION
main71503-12220i201503
main71503-12300i201604
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-12A90i201208-201503
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-12830i201208-201503
71880BCLIP(FOR REAR SEATBACK CARPET)
main90467-05164-B2×4i201208-201311
DK.GRAY
main90467-05164-C0×4i201311-201503
BLACK
main90467-05164-C7×4i201610-201805
BLACK
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-21×3i201710-201805
W(LOCK),BLACK,TRIM2#
main71930-44020-C0×3i201208-201503
W(LOCK),BLACK,TRIM2#
main71931-47010-C0×3i201208-201503
W/O(LOCK),BLACK,TRIM2#
main71931-47010-C8×3i201710-201805
W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
main71940-12C90-C2×2i201208-201503
BLACK,TRIM2#
main71940-12D10-C3×2i201208-201403
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71940-12D11-C3×2i201403-201503
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71940-12D11-C6×2i201503-201805
BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71940-12D20-C3×2i201208-201503
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-12770-C2i201208-201503
BLACK,TRIM2#
main71960-12790-C3i201208-201403
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71960-12791-C3i201403-201503
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main71960-12791-C6i201503-201805
BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71960-12800-C3i201208-201503
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72057-12010-C0i201208-201503
BLACK,TRIM2#
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
main72058-12010-C0i201208-201503
BLACK,TRIM2#
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72603-12050i201208-201503
72604LOCK SUB-ASSY, REAR SEATBACK, LH
main72604-12070i201208-201503
72651DROD, REAR SEATBACK LOCK, RH
main72651-12190i201208-201503
72651EROD, REAR SEATBACK LOCK, LH
main72652-12140i201208-201503
72679BEZEL, REAR SEATBACK LOCK CONTROL
main72667-12010-C0i201208-201503
BLACK,TRIM2#
72679BBEZEL, REAR SEATBACK LOCK CONTROL
main72668-12010-C0i201208-201503
BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i201208-201503
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-12780-C2i201208-201405
BLACK,TRIM2#
main72830-12780-C3i201503-201805
BLACK,TRIM2#
main72830-12780-C4i201405-201503
BLACK,TRIM2#
main72830-12820-C1i201208-201405
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main72830-12820-C2i201503-201805
BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main72830-12820-C6i201405-201503
"S PACKAGE"&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; BLACK,TRIM2#
main72830-12830-C2i201208-201405
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
main72830-12830-C3i201503-201805
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(ORANGE STITCH),BLACK,TRIM2#
main72830-12830-C4i201405-201503
BLACK,TRIM2#; SPORT PACKAGE&SEAT COVER MATERIAL-SPORTS,BLACK,TRIM2#
72830BBUSH(FOR REAR SEAT CENTER ARMREST)
main72622-47010i201208-201503
72830TBUSH (FOR REAR SEAT CENTER ARMREST)
main72622-47020i201208-201503
72868BCOVER, CENTER ARMREST HINGE
main72868-12050-C0i201208-201503
BLACK,TRIM2#
72996ACOVER, REAR SEATBACK
main72996-12380-C0×3i201208-201503
BLACK,TRIM2#
73705BBRACKET SUB-ASSY, CROSS ANCHOR
main73705-12150×2i201503
main73705-12160×2i201604
9010510494
main90105-10494
9010510560
main90105-10560
9010906023
main90109-06023
9011910945
main90119-10945
9016740044
main90167-40044
9155180835
main91551-80835
9155381020
main91553-81020
9167180820
main91671-80820

41 parts on this diagram · 2 diagrams in section
