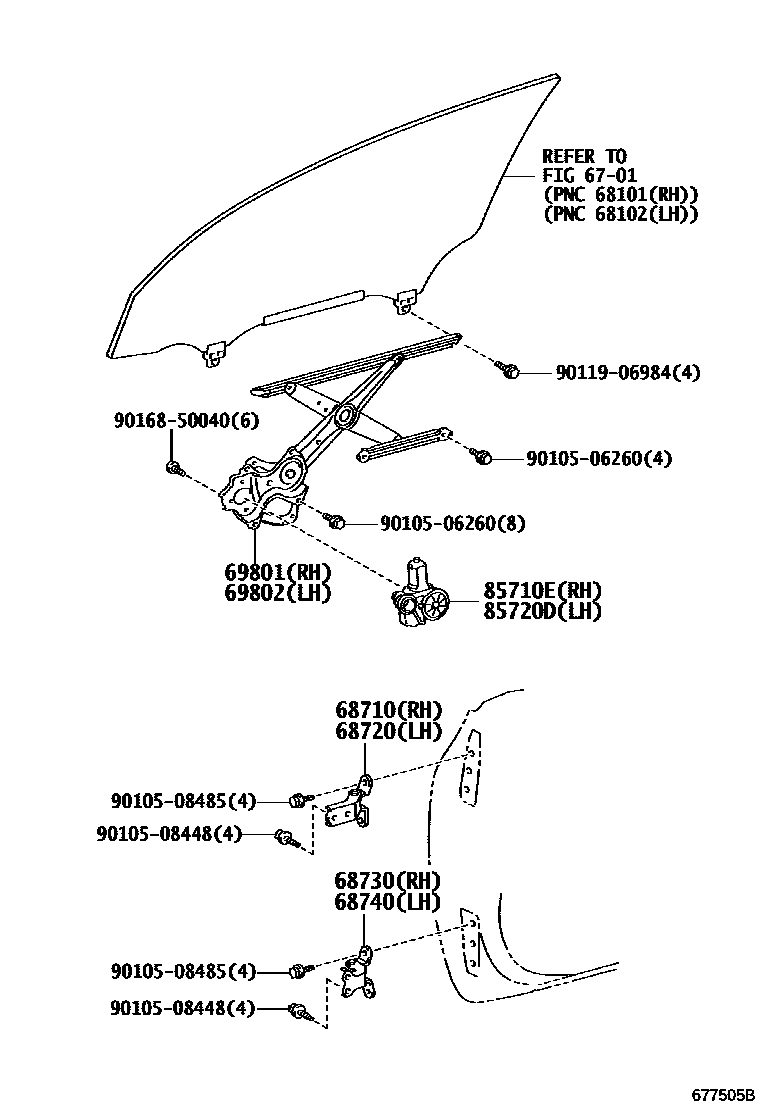

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i201208-201503

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i201208-201503

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i201208-201503

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i201208-201503

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33090i201208-201312

main69801-52140i201401-201503

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33090i201208-201312

main69802-52130i201401-201503

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12420i201503

main85710-12490i201208-201503

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12360i201503

SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER); WITH(TFT COLOR MULTI INFORMATION DISPLAY; WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)

main85720-12490i201208-201503

"S PACKAGE"

main85720-35140i201208-201503

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
