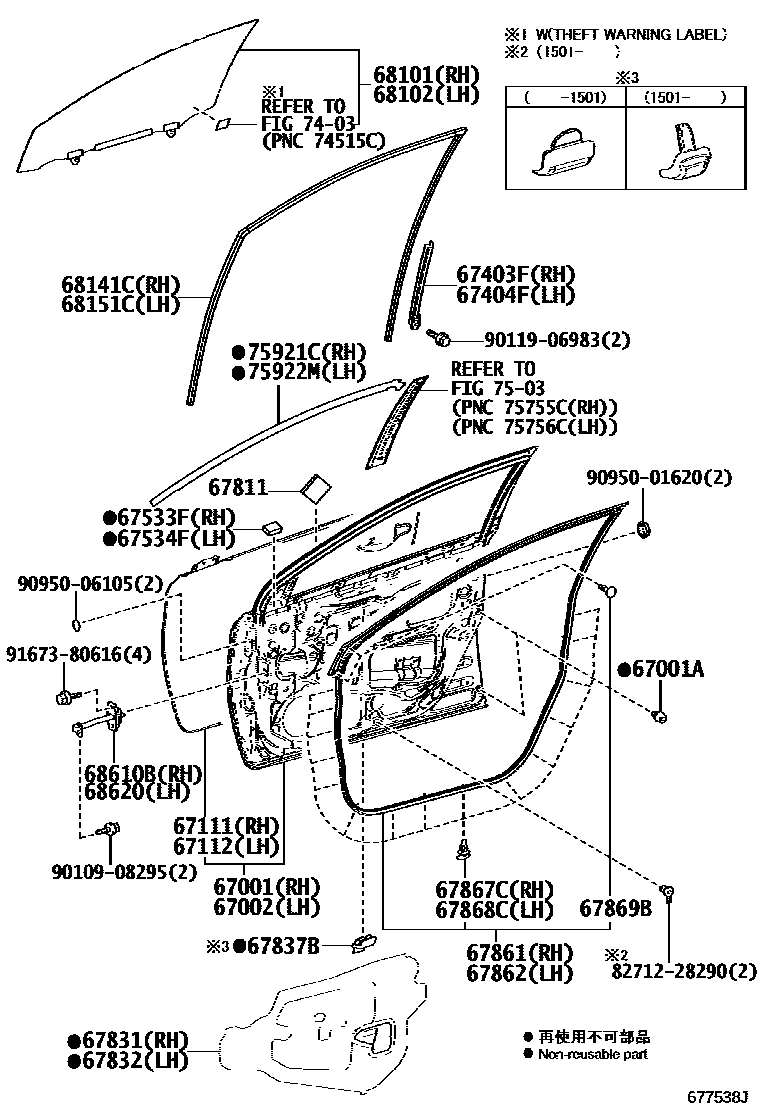

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12B10iNRE180,ZRE18#201208-201501

main67001-12B80iNRE180,ZRE18#201501-201503

67001ACUSHION, FRONT DOOR PANEL

main90541-09143×4iNRE180,ZRE18#201208-201503

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12B10iNRE180,ZRE18#201208-201501

main67002-12B80iNRE180,ZRE18#201501-201503

67111PANEL, FRONT DOOR, OUTER RH

main67111-12730iNRE180,ZRE18#201208-201503

67112PANEL, FRONT DOOR, OUTER LH

main67112-12720iNRE180,ZRE18#201208-201503

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12290iNRE180,ZRE18#201208-201503

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12280iNRE180,ZRE18#201208-201503

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main69759-12110iNRE180,ZRE18#201208-201503

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main69759-12110iNRE180,ZRE18#201208-201503

67811PAD, FRONT DOOR SILENCER

main67811-12180×2iNRE180,ZRE18#,ZWE186201503

80 X 80

main67811-12190×2iNRE180,ZRE18#201208-201503

100 X 100

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12720iNRE180,ZRE18#201208-201503

main67831-12770iZWE186201604

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12500iNRE180,ZRE18#201503

main67832-12550iZWE186201604

67837BSEAL, FRONT DOOR DUST PROOF

main67837-12080×4iNRE180,ZRE18#201208-201501

main67837-12120×4iNRE180,ZRE18#201501-201503

main67837-48050×4iNRE180,ZRE18#201601

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12A80iNRE180,ZRE18#201208-201503

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12A80iNRE180,ZRE18#201208-201503

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×15iNRE180,ZRE18#201208-201503

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iNRE180,ZRE18#201208-201503

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iNRE180,ZRE18#201208-201503

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12C00iNRE180,ZRE181201208-201503

main68101-12C20iZRE182201208-201503

main68101-12D10iZRE182,ZWE186201503

main68101-12D40iNRE180,ZRE181201503

main68101-12C10iZRE182..N201208-201503

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN

main68101-12D50iZRE182..CVT..N201503

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12C00iNRE180,ZRE181201208-201503

main68102-12C20iZRE182201208-201503

main68102-12D10iZRE182,ZWE186201503

main68102-12D20iNRE180,ZRE181201503

main68102-12C10iZRE182..N201208-201503

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN

main68102-12D30iZRE182..CVT..N201503

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

68141CRUN, FRONT DOOR GLASS, RH

main68141-12590iNRE180,ZRE18#201208-201503

main68141-12591iNRE180,ZRE18#,ZWE186201601

68151CRUN, FRONT DOOR GLASS, LH

main68151-12290iNRE180,ZRE18#201208-201503

main68151-12291iNRE180,ZRE18#,ZWE186201601

68610BCHECK ASSY, FRONT DOOR, RH

main68610-12240iNRE180,ZRE18#201208-201503

68620CHECK ASSY, FRONT DOOR, LH

main68610-12240iNRE180,ZRE18#201208-201503

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

7503SIDE MOULDING

→ Go to FIG 75-03

75921CTAPE, BLACK OUT, NO.1 RH

main75921-12110iNRE180,ZRE18#201208-201503

75922MTAPE, BLACK OUT, NO.1 LH

main75922-12110iNRE180,ZRE18#201208-201503

8271228290CLAMP, WIRING HARNESS

main82712-28290

9010908295

main90109-08295

9011906983

main90119-06983

9095001620

main90950-01620

9095006105

main90950-06105

9167380616

main91673-80616

34 parts on this diagram · 3 diagrams in section
