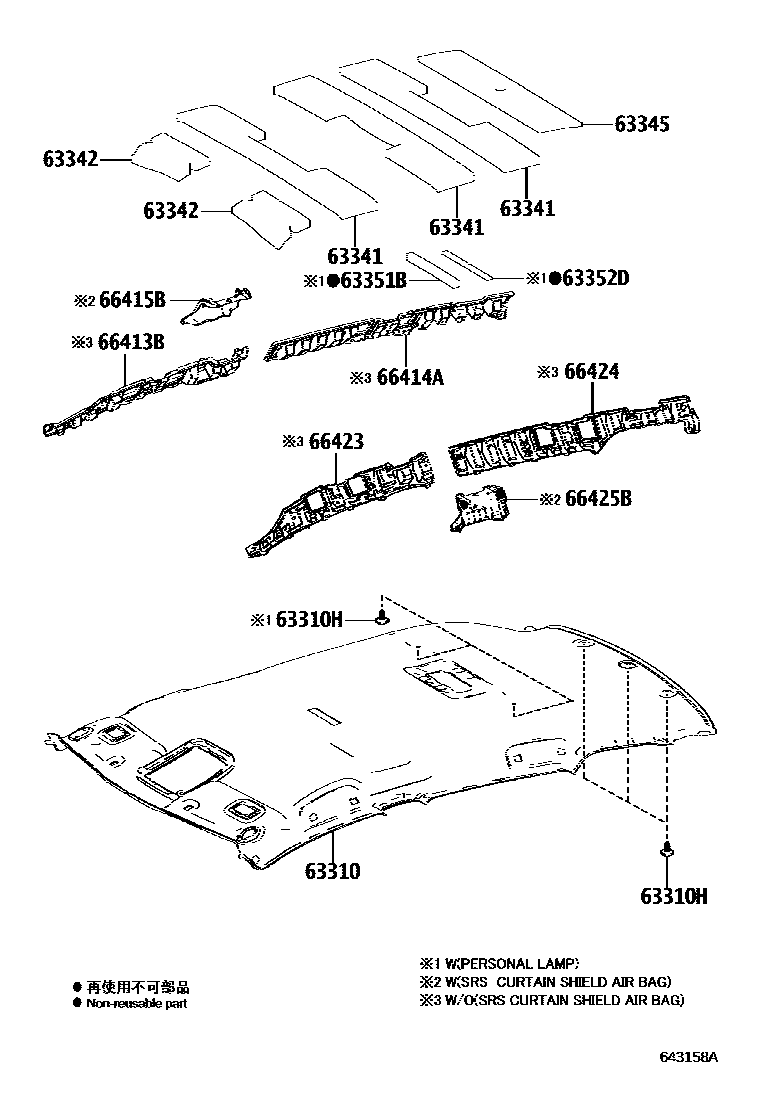

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(PANORAMA ROOF)

63310HEADLINING ASSY, ROOF

main63310-12J40-B1iNRE180,ZRE18#..D201208-201503

LT.GRAY,TRIM2#

main63310-12K50-B1iZRE18#..N201208-201503

LT.GRAY,TRIM2#

main63310-12L70-B0iNRE180,ZRE181..D201503-201805

LT.GRAY,TRIM2#

main63310-12L80-B0iZRE182;ZRE181,ZWE186..N201503-201805

LT.GRAY,TRIM2#

main63310-12K60-B1iZRE182..N201208-201503

MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2#

main63310-12L90-B0iZRE182..N201503-201805

MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B0×3iNRE180,ZRE18#..D; ZRE18#..N; ZRE182..N201208-201503

LT.GRAY,TRIM2#; MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-12350×3iNRE180,ZRE18#201208-201503

63342PAD, ROOF SILENCER, NO.2

main63342-12290×2iNRE180,ZRE18#201208-201503

63345PAD, ROOF SILENCER, NO.5

main63345-12040iNRE180,ZRE18#201208-201503

63351BPAD, ROOF HEADLINING

main63351-12090iZRE18#..N201208-201503

63352DPAD, ROOF HEADLINING, NO.2

main63352-12110iZRE18#..N201208-201503

66413BSPACER, SIDE RAIL, FRONT RH

main66413-12100iNRE180,ZRE181..6F201208-201503

66414ASPACER, SIDE RAIL, REAR RH

main66414-12100iNRE180,ZRE181..6F201208-201503

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-12050iZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE"

66423SPACER, SIDE RAIL, FRONT LH

main66423-12100iNRE180,ZRE181..6F201208-201503

66424SPACER, SIDE RAIL, REAR LH

main66424-12100iNRE180,ZRE181..6F201208-201503

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-12050iZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE"

13 parts on this diagram · 2 diagrams in section
