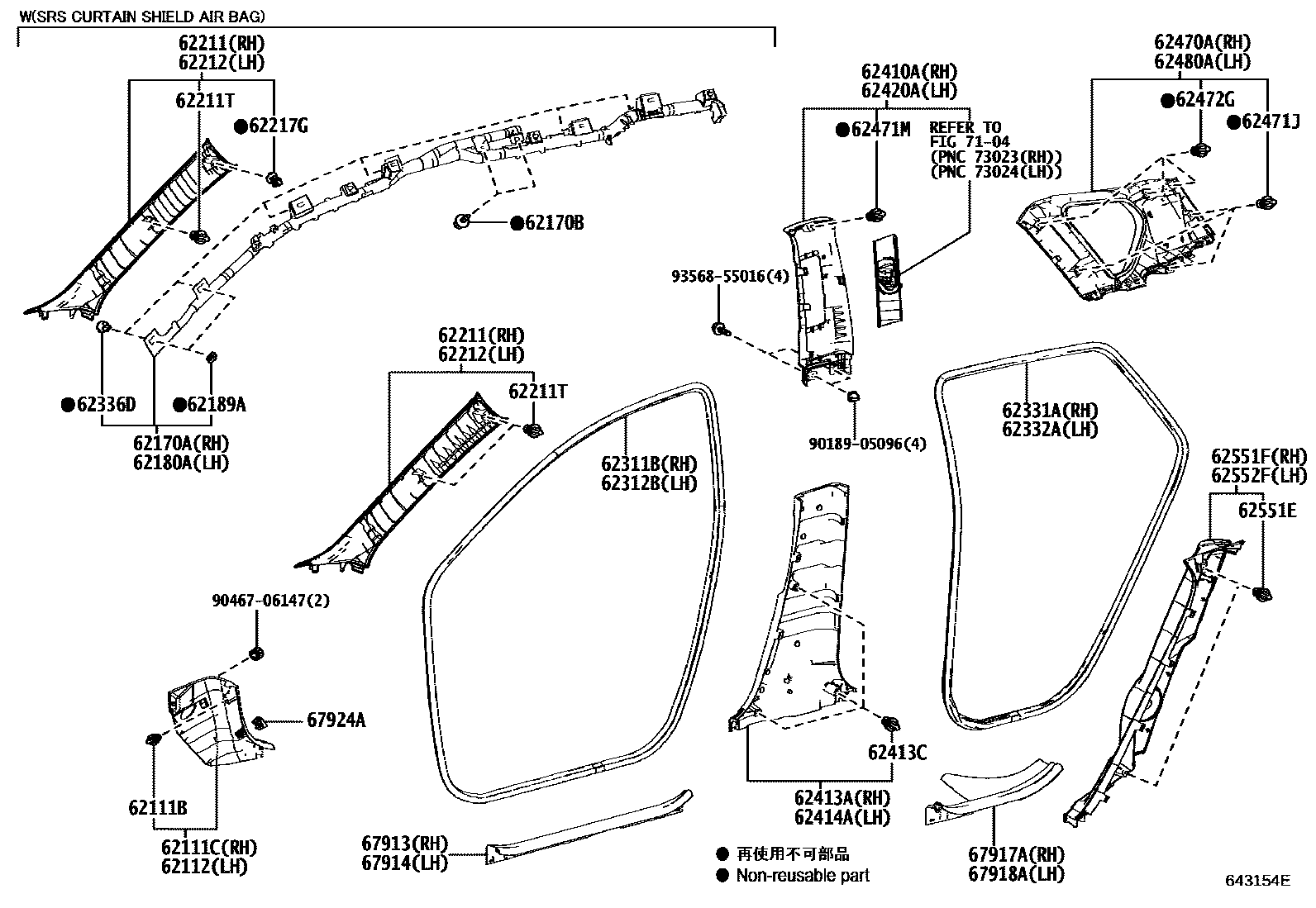

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×2iNRE180,ZRE18#201208-201503

62111CBOARD, COWL SIDE TRIM, RH

main62111-12350-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-12400-C0iNRE180,ZRE18#,ZWE186201503-201805

BLACK,TRIM2#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-12050iZRE181..6F..N; ZRE182;ZRE181,ZWE186..CVT201503

WITH(TFT COLOR MULTI INFORMATION DISPLAY

62170BBOLT, W/WASHER

main90119-06869×4iZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE"

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-12050iZRE181..6F..N; ZRE182;ZRE181,ZWE186..CVT201503

WITH(TFT COLOR MULTI INFORMATION DISPLAY

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-33010×4iZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE"

62211GARNISH, FRONT PILLAR, RH

main62210-12080-B0iZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE",LIGHT GRAY,TRIM2#; LIGHT GRAY,TRIM2#

main62210-12090-B0iNRE180,ZRE181..6F201208-201503

LIGHT GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2iNRE180,ZRE181..6F; ZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE"

62212GARNISH, FRONT PILLAR, LH

main62220-12080-B1iZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE",LIGHT GRAY,TRIM2#; LIGHT GRAY,TRIM2#

main62220-12090-B1iNRE180,ZRE181..6F201208-201503

LIGHT GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52120×2iZRE181..6F..N; ZRE182;ZRE181,ZWE186..CVT201503

WITH(TFT COLOR MULTI INFORMATION DISPLAY

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12250iNRE180,ZRE18#,ZWE186201503

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12250iNRE180,ZRE18#201208-201503

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12190iNRE180,ZRE18#201208-201503

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12190iNRE180,ZRE18#201208-201503

62336DCLAMP

main62184-06010×12iZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE"

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-12080-B0iNRE180,ZRE18#201208-201503

LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12310-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×6iNRE180,ZRE18#201208-201503

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12300-C0iNRE180,ZRE18#,ZWE186201503-201805

BLACK,TRIM2#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-12080-B0iNRE180,ZRE18#,ZWE186201503-201805

LT.GRAY,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-12230-B0iZRE181..6F..N; ZRE182;ZRE181..CVT201208-201503

"S PACKAGE",LT.GRAY,TRIM2#; LT.GRAY,TRIM2#

main62470-12240-B0iNRE180,ZRE181..6F201208-201503

LT.GRAY,TRIM2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×6iNRE180,ZRE18#,ZWE186201503

62471MCLIP

main90467-10188×2iNRE180,ZRE18#201208-201503

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×6iNRE180,ZRE181..6F201208-201303

main90467-10188×6iNRE180,ZRE181..6F201303-201503

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-12240-B0iZRE181..6F..N; ZRE182;ZRE181,ZWE186..CVT201503-201805

LT.GRAY,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY,LT.GRAY,TRIM2#

main62480-12250-B0iNRE180,ZRE181..6F201503-201805

LT.GRAY,TRIM2#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10161×4iNRE180,ZRE18#201208-201503

62551FGARNISH, REAR SEAT SIDE, RH

main62551-12270-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

main62551-12271-C0iNRE180,ZRE18#201604-201805

BLACK,TRIM2#

main62551-12300-C0iZWE186201604-201805

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-12250-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

main62552-12251-C0iNRE180,ZRE18#201604-201805

BLACK,TRIM2#

main62552-12270-C0iZWE186201604-201805

BLACK,TRIM2#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12330-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12290-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12180-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

main67917-12240-C0iZWE186201604-201805

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12170-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

main67918-12230-C0iZWE186201604-201805

BLACK,TRIM2#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140×2iNRE180,ZRE18#201208-201503

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9018905096

main90189-05096

9046706147

main90467-06147

9356855016

main93568-55016

38 parts on this diagram · 1 diagram in section
