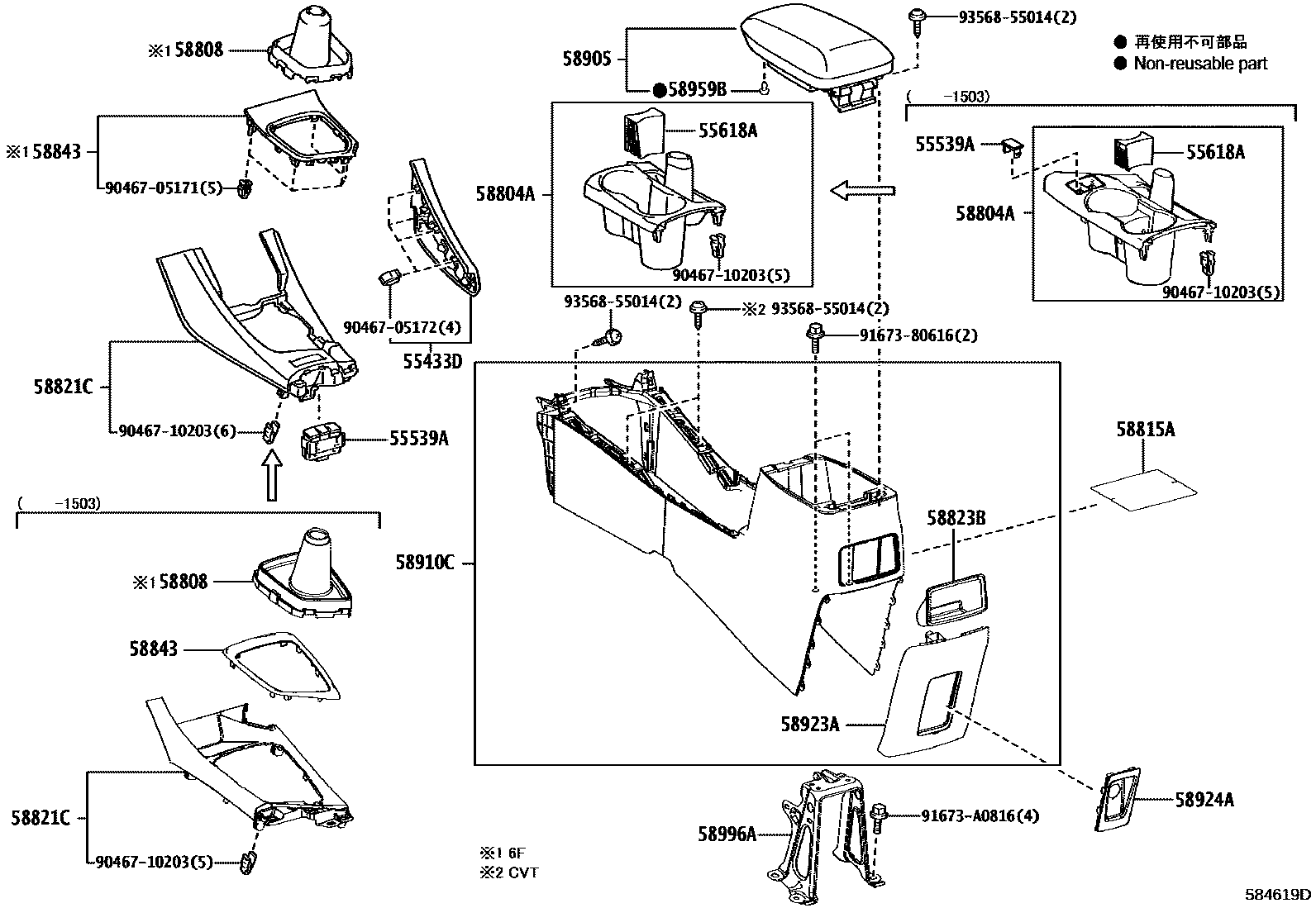

CONSOLE BOX & BRACKET
55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
BLACK,TRIM2#
SPORT PACKAGE,BLACK/GRAY,TRIM20
WITH(TFT COLOR MULTI INFORMATION DISPLAY,BLACK/GRAY,TRIM20
WITH(TFT COLOR MULTI INFORMATION DISPLAY,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM2#
BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
GRAY,TRIM2#
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58823BBOX, CONSOLE COMPARTMENT
BLACK,TRIM2#
58843BEZEL, SHIFTING HOLE
MD.SILVER,TRIM2#
MD.SILVER,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/BLACK/GRAY,TRIM2#
"S PACKAGE",BLACK/BLACK/GRAY,TRIM2#
WITH(TFT COLOR MULTI INFORMATION DISPLAY,BLACK/BLACK/GRAY,TRIM2#
BLACK/BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM2#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
58923APANEL, CONSOLE REAR END
BLACK,TRIM2#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9046705171
main90467-05171
9046705172
main90467-05172
9046710203
main90467-10203
9167380616
main91673-80616
91673A0816
main91673-A0816
9356855014
main93568-55014
21 parts on this diagram · 2 diagrams in section
