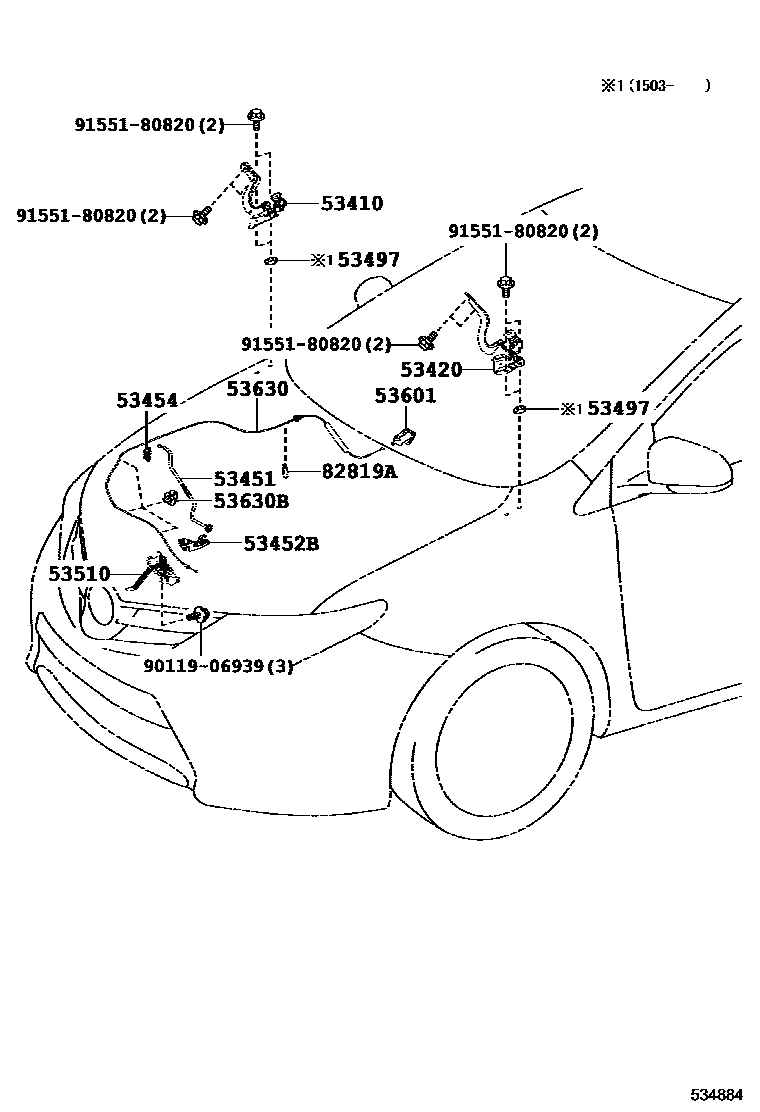

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12600iNRE180,ZRE18#,ZWE186201503

53420HINGE ASSY, HOOD, LH

main53420-12590iNRE180,ZRE18#201208-201503

53451ROD, HOOD SUPPORT

main53440-12190iNRE180,ZRE18#201208-201410

main53440-12191iNRE180,ZRE18#201411-201503

main53440-12192iNRE180,ZRE18#,ZWE186201512

53452BBRACKET, HOOD SUPPORT ROD

main53452-02170iZWE186201604

main53452-12120iNRE180,ZRE18#201208-201503

53454CLIP, HOOD SUPPORT ROD

main53454-12040iNRE180,ZRE18#201208-201503

53497PAD, HOOD HINGE, NO.1

main53497-42010×4iNRE180,ZRE18#201503-201601

T=0.5

53510LOCK ASSY, HOOD

main53510-12B00iZRE182,ZWE186201503-201708

main53510-12B01iZRE182,ZWE186201709

main53510-12B40iNRE180,ZRE181; ZRE182..N201208-201503

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN

main53510-12B41iNRE180,ZRE181; ZRE182..CVT..N201709

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

main53601-52010-C1iNRE180,ZRE18#,ZWE186201612-201805

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12600iNRE180,ZRE18#201208-201503

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iNRE180,ZRE18#201208-201503

82819AGROMMET, WIRE

main82817-1A810iNRE180,ZRE18#201208-201503

9011906939

main90119-06939

9155180820

main91551-80820

13 parts on this diagram · 1 diagram in section
