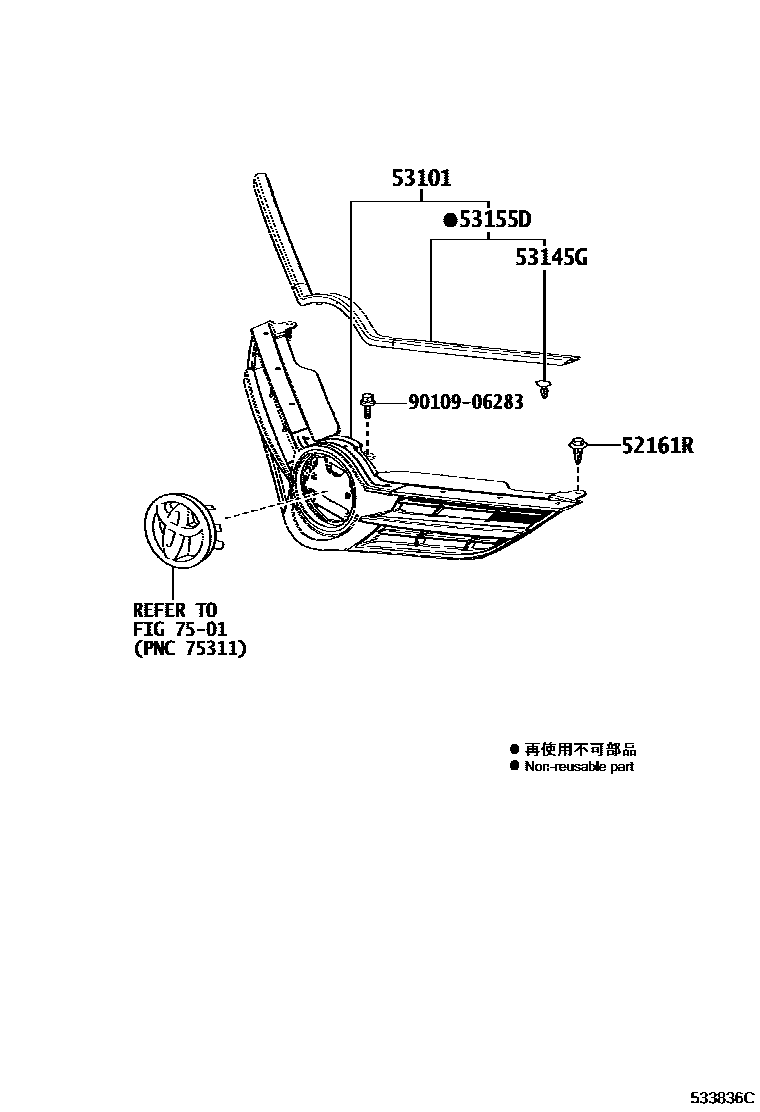

RADIATOR GRILLE
52161RPIECE, FRONT BUMPER
53101GRILLE SUB-ASSY, RADIATOR
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
AVANT-GARDE BRONZE ME.,4V8
BLUE ME.,8T7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209; RADIATOR GRILLE-SPORT,BLACK MC.,040 ,070 ,1F7 ,209 ,3R3 ,4R8 ,4V8 ,8T7
RED M.M.,3R3
ORANGE ME.,4R8
AVANT-GARDE BRONZE ME.,4V8
BLUE ME.,8T7
PLATED,TYPE A:REFER ILLUST.
PLATED,TYPE A:REFER ILLUST.
NO PAINT REQ.,SPORT PACKAGE,TYPE B:REFER ILLUST.; NO PAINT REQ.,WITH(TFT COLOR MULTI INFORMATION DISPLAY,TYPE B:REFER ILLUST.
NO PAINT REQ.,SPORT PACKAGE,TYPE B:REFER ILLUST.; NO PAINT REQ.,WITH(TFT COLOR MULTI INFORMATION DISPLAY,TYPE B:REFER ILLUST.
53145GCLIP, RADIATOR GRILLE
53155DSEAL, RADIATOR GRILLE, NO.1
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
9010906283
main90109-06283
6 parts on this diagram · 2 diagrams in section
