REAR BUMPER & BUMPER STAY

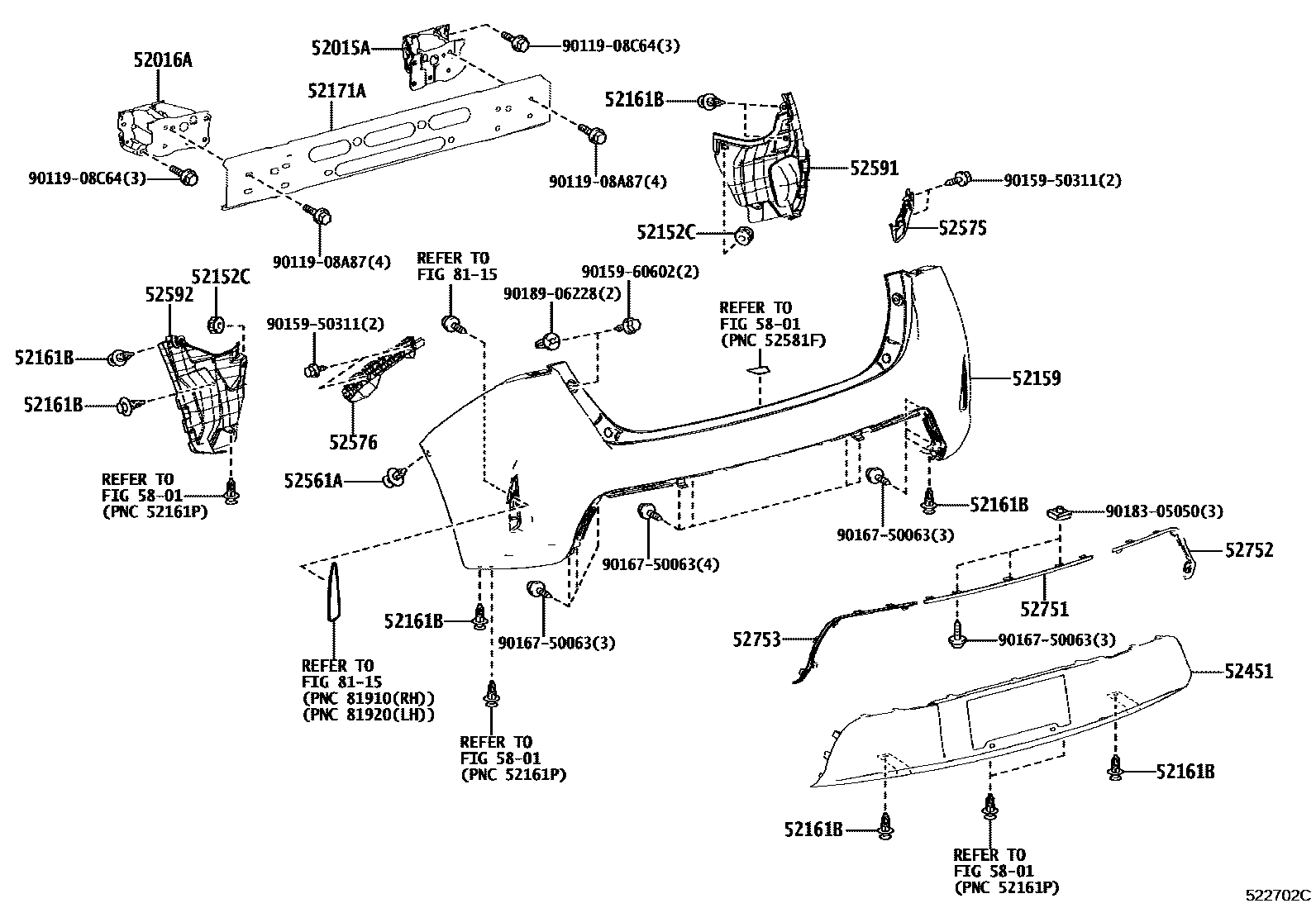

Parts diagram

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12310i201208-201503

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12280i201208-201503

52152CCLIP, REAR BUMPER SIDE

main90467-06206-C0×2i201208-201503

BLACK

52159COVER, REAR BUMPER

main52159-12945i201208-201503

PAINT REQ.

main52159-12949i201503-201805

PAINT REQ.

main52159-12950i201503-201805

PAINT REQ.,SPORT PACKAGE; PAINT REQ.,WITH(TFT COLOR MULTI INFORMATION DISPLAY

52161BPIECE, REAR BUMPER

main52161-16010×8i201208-201503

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-12240i201208-201503

52451GUARD, REAR BUMPER

main52453-12050i201208-201503

main52453-12090i201208-201503

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05170×2i201208-201503

main90467-06206-C0×2i201503-201805

BLACK

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12190i201208-201503

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12190i201208-201503

52591SEAL, REAR BUMPER SIDE, RH

main52591-12290i201208-201503

52592SEAL, REAR BUMPER SIDE, LH

main52592-12210i201208-201503

52751MOULDING, REAR BUMPER

main52751-12250i201208-201503

main52751-12260i201208-201503

main52751-12270i201503

SPORT PACKAGE; WITH(TFT COLOR MULTI INFORMATION DISPLAY

main52751-12280i201503

main52751-12290i201410-201411

SPECIAL EDITION

52752MOULDING, REAR BUMPER SIDE, RH

main52752-12030i201208-201503

main52752-12040i201208-201503

main52752-12050i201410-201411

SPECIAL EDITION

52753MOULDING, REAR BUMPER SIDE, LH

main52753-12040i201208-201503

main52753-12050i201208-201503

main52753-12060i201410-201411

SPECIAL EDITION

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011908A87

main90119-08A87

9011908C64

main90119-08C64

9015950311

main90159-50311

9015960602

main90159-60602

9016750063

main90167-50063

9018305050

main90183-05050

9018906228

main90189-06228

24 parts on this diagram · 2 diagrams in section
