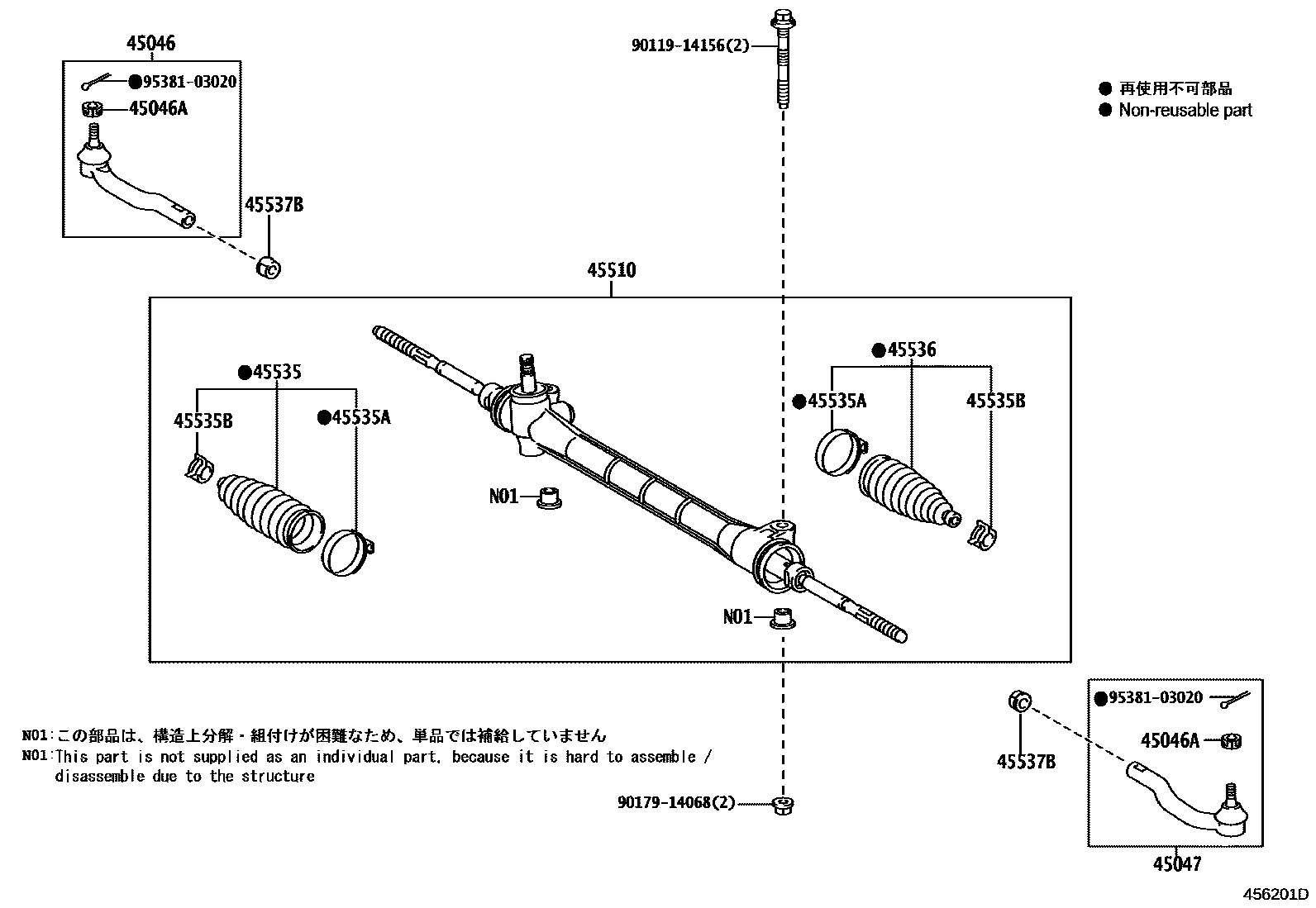

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-19415iNRE180,ZRE18#,ZWE186201503

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNRE180,ZRE18#201208-201503

45047END SUB-ASSY, TIE ROD, LH

main45047-19215iNRE180,ZRE18#,ZWE186201503

45510GEAR ASSY, STEERING

main45510-12490iNRE180,ZRE18#201208-201503

main45510-12500iZRE182..N201208-201503

TIRE & DISC WHEEL-215/45R17 7J,ALUMINUM

45535BOOT, STEERING RACK, NO.1

main45535-49015iNRE180,ZRE18#201208-201503

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010×2iNRE180,ZRE18#201208-201503

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iNRE180,ZRE18#201208-201503

45536BOOT, STEERING RACK, NO.2

main45535-49015iNRE180,ZRE18#201208-201503

45537BNUT, RACK END LOCK

main90179-15006×2iNRE180,ZRE18#201208-201503

9011914156

main90119-14156

9017914068

main90179-14068

9538103020

main95381-03020

12 parts on this diagram · 1 diagram in section
