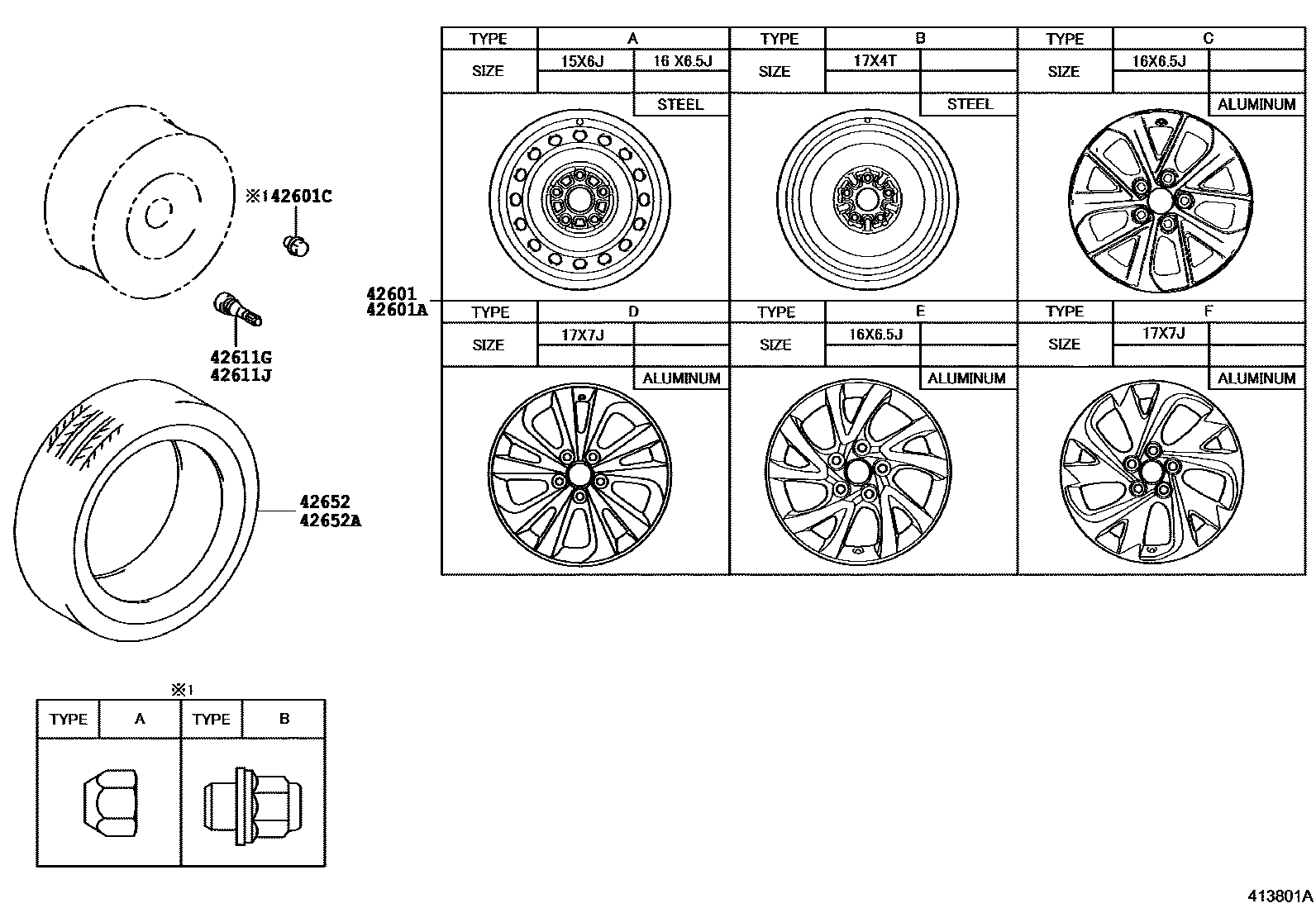

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE C:REFER ILLUST.; 16X6.5J, #,TYPE C:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE E:REFER ILLUST.; 16X6.5J, #,TYPE E:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM,TYPE F:REFER ILLUST.
16X6.5J, #,SPECIAL EDITION,TYPE C:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J,ALUMINUM,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5J, #,SPARE TIRE-GROUND TIRE(STEEL),TYPE A:REFER ILLUST.; 16X6.5J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
17X4T,SPARE TIRE-GROUND TIRE(STEEL),TYPE B:REFER ILLUST.; 17X4T,TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
205/55R16,*D/L
205/55R16,*Y/H
195/65R15,GOODYEAR
195/65R15,GOODYEAR
195/65R15,*Y/H
195/65R15,*Y/H
205/55R16,*D/L
205/55R16,*Y/H
205/55R16,MICHELIN
205/55R16,GOODYEAR
205/55R16,*B/S
215/45R17,MICHELIN,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
215/45R17,*T/Y,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
42652ATIRE (FOR SPARE)
195/65R15,GOODYEAR
195/65R15,GOODYEAR
195/65R15,*Y/H
195/65R15,*Y/H
205/55R16,*D/L
205/55R16,*Y/H
T125/70D17,*B/S; T125/70D17,*B/S,SPARE TIRE-GROUND TIRE(STEEL)
T125/70D17,FALKEN; T125/70D17,FALKEN,SPARE TIRE-GROUND TIRE(STEEL)
205/55R16,*D/L,SPARE TIRE-GROUND TIRE(STEEL)
205/55R16,*Y/H,SPARE TIRE-GROUND TIRE(STEEL)
205/55R16,*B/S,SPARE TIRE-GROUND TIRE(STEEL)
7 parts on this diagram · 3 diagrams in section
