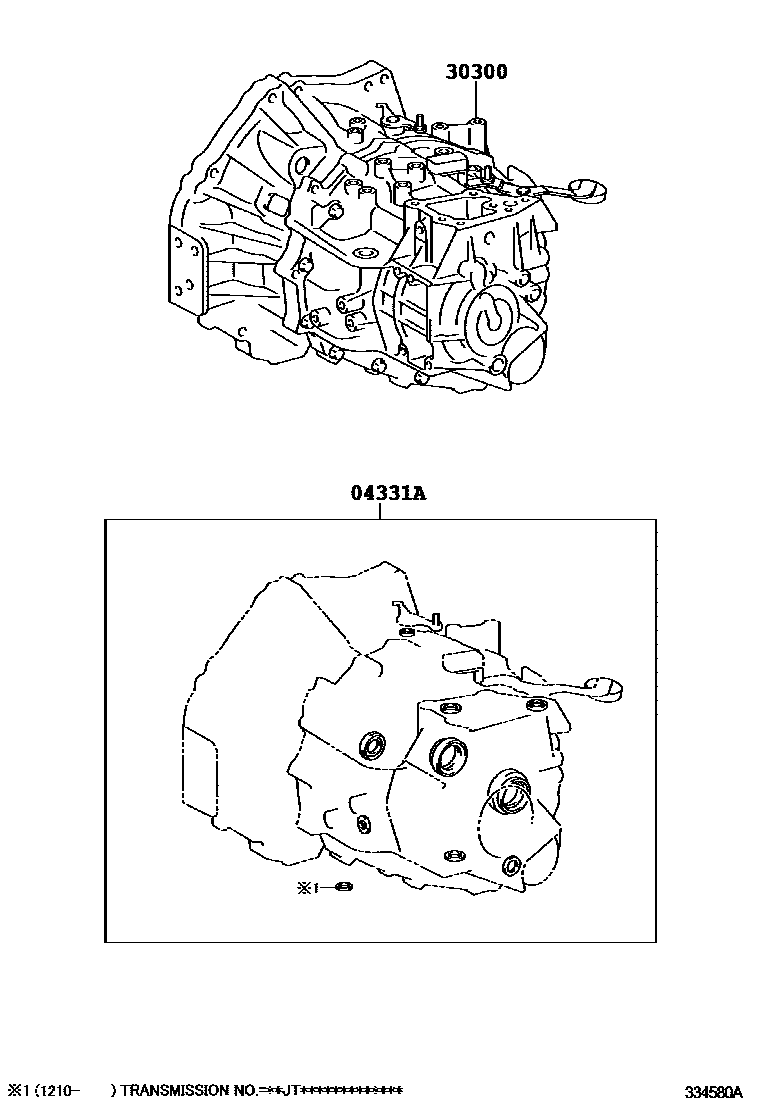

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1EC60,EC61 0002 1EC60

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-20250iZRE18#..6F201208-201305

*205

main04331-20251iZRE18#..6F201210-201305

*199

main04331-20252iZRE18#..6F201305-201503

main04331-20270iZRE18#..6F201612

main04331-52590iNRE180201208-201305

main04331-52592iNRE180201305-201503

30300TRANSAXLE ASSY, MANUAL

main30300-12D51iZRE182..6F201208-201305

EC60,*205

main30300-12D71iZRE181..6F201208-201305

EC60,*205

main30300-12F90iNRE180201208-201305

EC61

main30300-12G40iNRE180201305-201503

EC61

main30300-12G50iZRE181..6F201503-201805

EC60

main30300-12G60iZRE182..6F201503-201805

EC60

2 parts on this diagram · 2 diagrams in section
