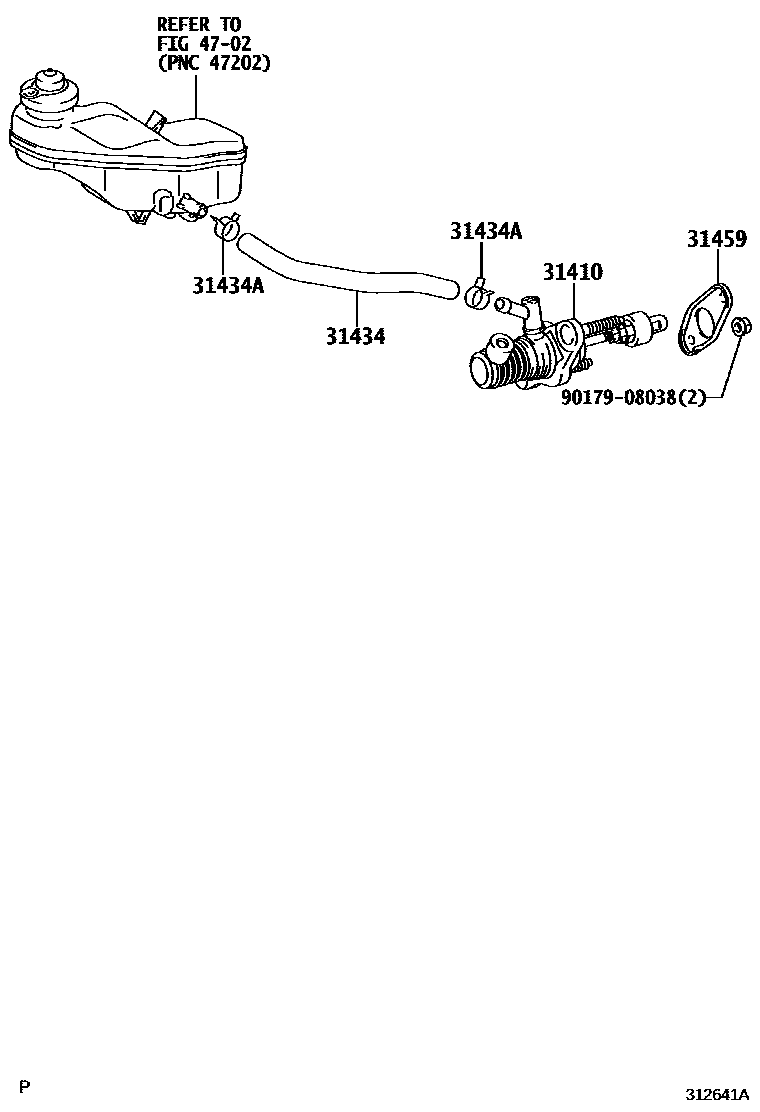

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12050iNRE180,ZRE18#..6F201208-201503

main31420-12051iNRE180,ZRE18#..6F201701

31434TUBE, CLUTCH RESERVOIR

main31434-12110iNRE180,ZRE18#..6F201208-201503

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801×2iNRE180,ZRE18#..6F201208-201503

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iNRE180,ZRE18#..6F201208-201503

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

6 parts on this diagram · 1 diagram in section
